CT Micro
Taiwan / TW

Infrared Components, Optocoupler, Visible LED Components...

PC Series	CT Series	HCPL Series	CTM Series
TLP Series	4N Series	HCNW Series	H11 Series
CNY Series	6N Series	MOC Series	CTT Series

CT Micro Optocoupler Cross Ref

Darlington Transistor Output Optocoupler

P/N	Package	V^ISO (RMS-V)	Channel	CTR %	BV^CEO min. V	T^OPR(ºC)
CT852	DIP-4	5000	1	1000~15000	350	-55~100
CT815	DIP-4	5000	1	600~7500	35	-55~110
4N31	DIP-6	5000	1	Min 50	55	-55~100
4N30	DIP-6	5000	1	Min 50	55	-55~100
4N29	DIP-6	5000	1	Min 50	55	-55~100
4N32	DIP-6	5000	1	Min 50	55	-55~100
4N33	DIP-6	5000	1	Min 50	55	-55~100
H11B1	DIP-6	5000	1	Min 100	55	-55~100
H11B2	DIP-6	5000	1	Min 100	55	-55~100
H11B3	DIP-6	5000	1	Min 100	55	-55~100
H11BX	DIP-6	5000	1	Min 100	55	-55~100
4N29/30/31/32/33	DIP-6	5000	1	Min 50	55	-55~100
CT825	DIP-8	5000	2	600~7500	40	-55~110
CT415	MFP 4L	3750	1	Min 600	40	-55~110
CT452	MFP 4L	3750	1	1000~15000	350	-55~100

High Power Transistor Output Optocoupler

	P/N	Circuit	Package	V^ISO (RMS-V)	Input	Channel	CTR %	B V^CEO min. V	T^OPR(ºC)	PDF
	CT851		DIP-4	5000	DC	1	50~600	350	-55 +100
	CT451		DIP-4	5000	DC	1	50~600	350	-55 +100

High Speed Analog Output Optocoupler

P/N	Package	V_ISO (RMS-V)	Data Rate	CTR %	CMR V/µs	T_PHL T_PLH (max.µs)	T_OPR(ºC)
CT4504	DIP-8	5000	1	37~50	30000	0.3/0.5	-55~100
6N135	DIP-8	5000	1	7~50	1000	1.5/1.5	-40~100
6N136	DIP-8	5000	1	19~50	1000	0.8/0.8	-40~100
CT4502	DIP-8	5000	1	19~50	15000	1.5/1.5	-40~100
CT4503	DIP-8	5000	1	19~50	15000	0.8/0.8	-40~100

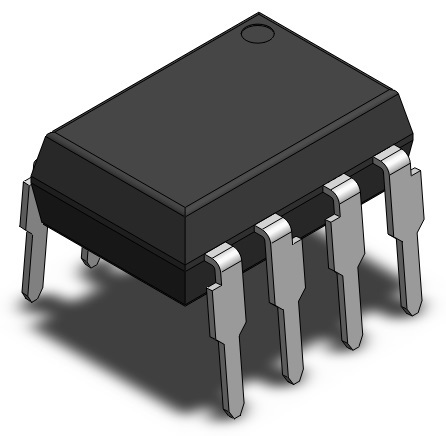

6N138	DIP-8	5000	0.1	300~2000	1000	10/35	-40~85
6N139	DIP-8	5000	0.1	500~2000	1000	1/7	-40~85
CTM452	MFP-5L	3750	1	20~50	5000	1.5/1.5	-40~85
CTM453	MFP-5L	3750	1	20~50	15000	0.8/0.8	-40~85
CTS453	SDIP-6	5000	1	20~50	15000	0.8/0.8	-40~100
CTW135	Widebody-8L	5000	1	7~50	1000	1.5/1.5	-40~100
CTW136	Widebody-8L	5000	1	19~50	1000	0.8/0.8	-40~100
CTW4502	Widebody-8L	5000	1	19~50	15000	1.5/1.5	-40~100
CTW4503	Widebody-8L	5000	1	19~50	15000	0.8/0.8	-40~100
CTW138	Widebody-8L	5000	0.1	300~2000	1000	10/35	-40~85
CTW139	Widebody-8L	5000	0.1	500~2000	1000	1/7	-40~85
CTW3120	Widebody-8L	5000	0.1	500~2000	1000	1/7	-40~85

High Speed Digital Output Optocoupler

P/N	Package	V_ISO (RMS-V)	Data Rate	Vcc V	I_{FT max. mA}	CMR V/µS	T_PHL T_PLH (max.µs)	T_OPR(ºC)
6N137	DIP-8	5000	10	7	5	10000	75/75	-40~85
CT2601	DIP-8	5000	10	7	5	5000	75/75	-40~85
CTM410	MFP 5L	3750	10	7	5	10000	75/75	-40~85
CTM601	MFP-5L	3750	10	7	5	5000	75/75	-40~85
CTM600	MFP-5L	3750	10	7	5	-	75/75	-40~85
CTM611	MFP-5L	3750	10	7	5	20000	75/75	-40~85
CTS601	SDIP-6	5000	10	7	5	5000	75/75	-40~85
CTW137	Widebody-8L	5000	10	7	5	10000	75/75	-40~85
CTW2601	Widebody-8L	5000	10	7	5	5000	75/75	-40~85

Triac Output Optocoupler (Zero Cross)

P/N	Package	V_ISO (RMS-V)	I_{FT max. mA}	V^DRM (V)	Static DV/DT (V/µs) min.	Static DV/DT (V/µs) typ.	T_OPR(ºC)
CT3022-4L	DIP-4	5000	10	400	-	100	-55~100
CT3021-4L	DIP-4	5000	15	400	-	100	-55~100
CT3023-4L	DIP-4	5000	5	400	-	100	-55~100
CT3051-4L	DIP-4	5000	15	600	1000	-	-55~100
CT3052-4L	DIP-4	5000	10	600	1000	-	-55~100
CT3053-4L	DIP-4	5000	5	600	1000	-	-55~100
CT3010-4L	DIP-4	5000	15	250	-	100	-55~100
CT3011-4L	DIP-4	5000	10	250	-	100	-55~100
CT3012-4L	DIP-4	5000	5	250	-	100	-55~100

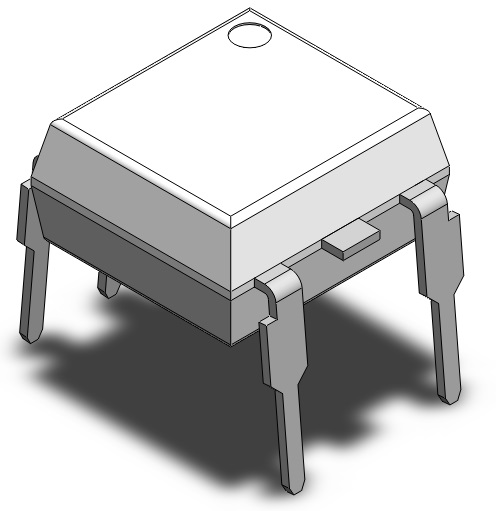

CT3010-5L	DIP-5	5000	15	250	-	100	-55~100
CT3011-5L	DIP-5	5000	10	250	-	100	-55~100
CT3012-5L	DIP-5	5000	5	250	-	100	-55~100
CT3020-5L	DIP-5	5000	30	400	-	100	-55~100
CT3021-5L	DIP-5	5000	15	400	-	100	-55~100
CT3022-5L	DIP-5	5000	10	400	-	100	-55~100
CT3023-5L	DIP-5	5000	5	400	-	100	-55~100
CT3051-5L	DIP-5	5000	15	600	1000	-	-55~100
CT3052-5L	DIP-5	5000	10	600	1000	-	-55~100
CT3053-5L	DIP-5	5000	5	600	1000	-	-55~100
CT3010	DIP-6	5000	15	250	-	100	-55~100
CT3011	DIP-6	5000	10	250	-	100	-55~100
CT3012	DIP-6	5000	5	250	-	100	-55~100
CT3020	DIP-6	5000	30	400	-	100	-55~100
CT3021	DIP-6	5000	15	400	-	100	-55~100
CT3022	DIP-6	5000	10	400	-	100	-55~100
CT3023	DIP-6	5000	5	400	-	100	-55~100
CT3051	DIP-6	5000	15	600	1000	-	-55~100
CT3052	DIP-6	5000	10	600	1000	-	-55~100
CT3053	DIP-6	5000	5	600	1000	-	-55~100
CTT0223	DIP-7	5000	10	600	200		-40~85
CTT1223	DIP-7	5000	10	600	200		-40~85

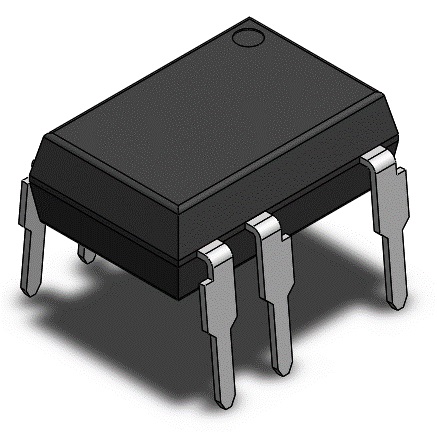

CTT2223	DIP-7	5000	10	600	200		-40~85
CTT3223	DIP-7	5000	10	600	200		-40~85
CTM3021	MFP-4L	3750	15	400		100	-55~100
CTM3022	MFP-4L	3750	10	400		100	-55~100
CTM3023	MFP-4L	3750	5	400		100	-55~100
CTM3051	MFP-4L	3750	15	600	1000		-55~100
CTM3052	MFP-4L	3750	10	600	1000		-55~100
CTM3053	MFP-4L	3750	5	600	1000		-55~100

Triac Output Optocoupler (Random Phase)

P/N	Package	V_ISO (RMS-V)	I_{FT max. mA}	V^DRM (V)	Static DV/DT (V/µs) min.	Static DV/DT (V/µs) typ.	T_OPR(ºC)
CT3083-4L	DIP-4	5000	5	800	600	-	-55~100
CT3081-4L	DIP-4	5000	15	800	600	-	-55~100
CT3082-4L	DIP-4	5000	10	800	600	-	-55~100
CT3041-4L	DIP-4	5000	15	400	1000	-	-55~100
CT3042-4L	DIP-4	5000	10	400	1000	-	-55~100
CT3043-4L	DIP-4	5000	5	400	1000	-	-55~100
CT3061-4L	DIP-4	5000	15	600	1000	-	-55~100
CT3062-4L	DIP-4	5000	10	600	1000	-	-55~100
CT3063-4L	DIP-4	5000	5	600	1000	-	-55~100

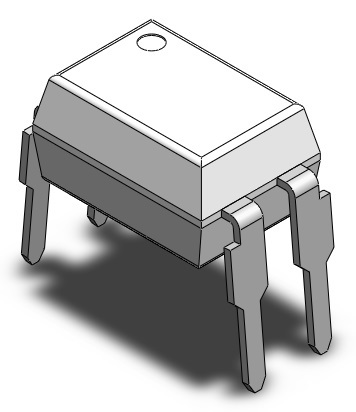

CT308X-4L	DIP-4	5000	42282	800	600	-	-55~100

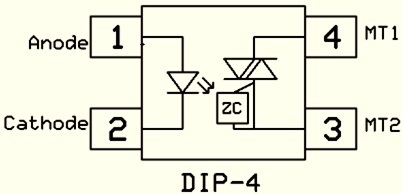

CT306X-4L	DIP-4	5000	42282	600	1000	-	-55~100
CT304X-4L	DIP-4	5000	42282	400	1000	-	-55~100
CT3031-4L	DIP-4	5000	15	250	1000	-	-55~100
CT3032-4L	DIP-4	5000	10	250	1000	-	-55~100
CT3033-4L	DIP-4	5000	5	250	1000	-	-55~100
CT303X-5L	DIP-5	5000	42282	250	1000	-	-55~100
CT306X-5L	DIP-5	5000	42282	600	1000	-	-55~100
CT304X-5L	DIP-5	5000	42282	400	1000	-	-55~100
CT308X-5L	DIP-5	5000	42282	800	600	-	-55~100
CT3031-5L	DIP-5	5000	15	250	1000	-	-55~100
CT3032-5L	DIP-5	5000	10	250	1000	-	-55~100
CT3033-5L	DIP-5	5000	5	250	1000	-	-55~100
CT3041-5L	DIP-5	5000	15	400	1000	-	-55~100
CT3042-5L	DIP-5	5000	10	400	1000	-	-55~100
CT3043-5L	DIP-5	5000	5	400	1000	-	-55~100
CT3061-5L	DIP-5	5000	15	600	1000	-	-55~100
CT3062-5L	DIP-5	5000	10	600	1000	-	-55~100
CT3063-5L	DIP-5	5000	5	600	1000	-	-55~100
CT3081-5L	DIP-5	5000	15	800	600	-	-55~100
CT3082-5L	DIP-5	5000	10	800	600	-	-55~100
CT3083-5L	DIP-5	5000	5	800	600	-	-55~100
CT303X	DIP-6	5000	42282	250	1000	-	-55~100
CT3031	DIP-6	5000	15	250	1000	-	-55~100
CT3032	DIP-6	5000	10	250	1000	-	-55~100
CT3033	DIP-6	5000	5	250	1000	-	-55~100
CT3041	DIP-6	5000	15	400	1000	-	-55~100
CT3042	DIP-6	5000	10	400	1000	-	-55~100
CT3043	DIP-6	5000	5	400	1000	-	-55~100
CT3061	DIP-6	5000	15	600	1000	-	-55~100
CT3062	DIP-6	5000	10	600	1000	-	-55~100
CT3063	DIP-6	5000	5	600	1000	-	-55~100
CT3081	DIP-6	5000	15	800	600	-	-55~100
CT3082	DIP-6	5000	10	800	600	-	-55~100
CT3083	DIP-6	5000	5	800	600	-	-55~100
CT304X	DIP-6	5000	42282	400	1000	-	-55~100
CT306X	DIP-6	5000	42282	600	1000	-	-55~100
CT308X	DIP-6	5000	42282	800	600	-	-55~100
CTT0213	DIP-7	5000	10	600	200		-40~85
CTT1213	DIP-7	5000	10	600	200		-40~85
CTT2213	DIP-7	5000	10	600	200		-40~85
CTT3213	DIP-7	5000	10	600	200		-40~85
CTM3041	MFP-4L	3750	15	400	1000	-	-55~100
CTM3042	MFP-4L	3750	10	400	1000		-55~100
CTM3043	MFP-4L	3750	5	400	1000		-55~100
CTM3061	MFP-4L	3750	15	600	1000		-55~100
CTM3062	MFP-4L	3750	10	600	1000		-55~100
CTM3063	MFP-4L	3750	5	600	1000		-55~100
CTM3081	MFP-4L	3750	15	800	600		-55~100
CTM3082	MFP-4L	3750	10	800	600		-55~100
CTM3083	MFP-4L	3750	5	800	600		-55~100

Transistor Output Optocoupler

P/N	Package	V_ISO (RMS-V)	Input	Channel V	CTR %	BV^CEO min.V	Temp. _OPR(ºC)
CTP17	DFN	2500	DC	1	100~400	80	-55~125
CT816L	DIP-4	5000	DC	1	50~600**	80	-55~110
CT814	DIP-4	5000	AC	1	20~300	80	-55~110

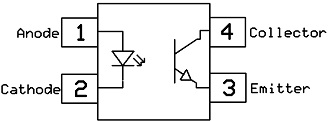

CT816	DIP-4	5000	DC	1	50~600	80	-55~110
CT817	DIP-4	5000	DC	1	50~600	35	-55~110
CT815	DIP-4	5000	DC	1	600~7500	35	-55~110
CT816D3	DIP-4	5000	DC	1	300~400	80	-55~110
H11A3	DIP-6	5000	DC	1	Min 10	80	-55~110
H11A2	DIP-6	5000	DC	1	Min 10	80	-55~110
4N36	DIP-6	5000	DC	1	Min 20	80	-55~110
4N37	DIP-6	5000	DC	1	Min 20	80	-55~110

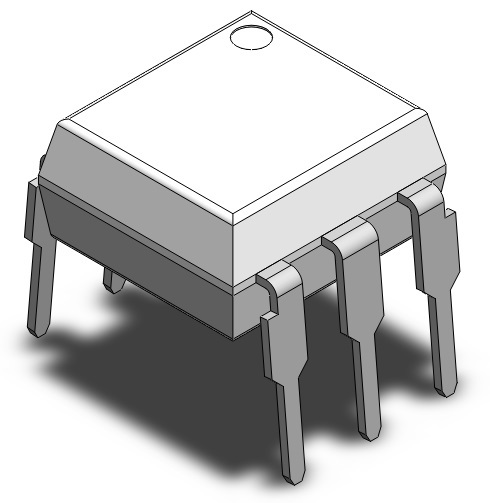

4N38	DIP-6	5000	DC	1	Min 20	80	-55~110
H11A1	DIP-6	5000	DC	1	Min 10	80	-55~110
4N35	DIP-6	5000	DC	1	Min 20	80	-55~110
4N25	DIP-6	5000	DC	1	Min 10	80	-55~110
4N26	DIP-6	5000	DC	1	Min 10	80	-55~110
4N27	DIP-6	5000	DC	1	Min 10	80	-55~110
4N28	DIP-6	5000	DC	1	Min 10	80	-55~110
H11A4	DIP-6	5000	DC	1	Min 10	80	-55~110
H11A5	DIP-6	5000	DC	1	Min 10	80	-55~110
CNY17	DIP-6	5000	DC	1	40~320	80	-55~110
CNY17F	DIP-6	5000	DC	1	40~320	80	-55~110
H11AA1	DIP-6	5000	AC	1	Min 10	80	-55~110
H11AA2	DIP-6	5000	AC	1	Min 10	80	-55~110
H11AA3	DIP-6	5000	AC	1	Min 10	80	-55~110
H11AA4	DIP-6	5000	AC	1	Min 10	80	-55~110
H11AX	DIP-6	5000	DC	1	Min 10	80	-55~110
CNY17/CNY17F	DIP-6	5000	DC	1	40~320	80	-55~110
H11AAX	DIP-6	5000	AC	1	Min 10	80	-55~110
4N35/36/37/38	DIP-6	5000	DC	1	Min 20	80	-55~110
4N25/26/27/28	DIP-6	5000	DC	1	Min 10	80	-55~110
CT827	DIP-8	5000	DC	2	50~600	80	-55~110

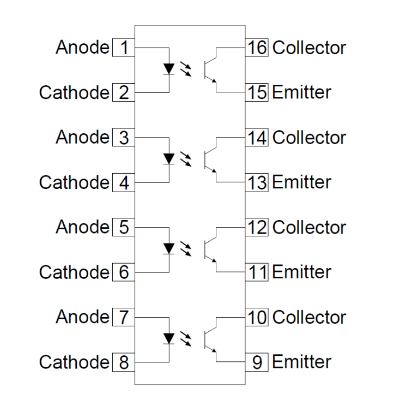

CTH291-4	Half Pitch MFP-16L	3750	DC	4	50~400	80	-55~125

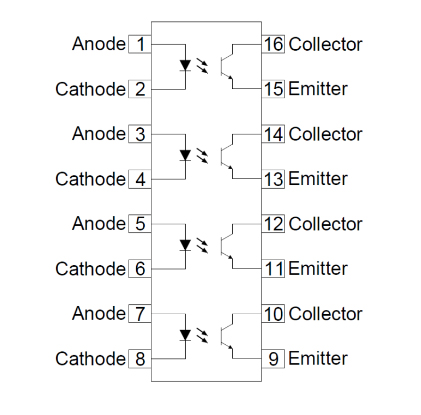

CTH281-4	Half Pitch MFP-16L	3750	DC	4	50~600	80	-55~125
CTH247	Half Pitch MFP-16L	3750	DC	4	50~400	80	-55~125
CTH217	Half Pitch MFP-4L	3750	DC	1	50~600**	80	-55~125
CTH214	Half Pitch MFP-4L	3750	AC	1	20~300	80	-55~110
CTH217A	Half Pitch MFP-4L	3750	DC	1	50~600	80	-55~110
CTH217D	Half Pitch MFP-4L	3750	DC	1	50~600	80	-55~110
CTH217C	Half Pitch MFP-4L	3750	DC	1	50~600	80	-55~110
CTH217B	Half Pitch MFP-4L	3750	DC	1	50~600	80	-55~110
CTH214A	Half Pitch MFP-4L	3750	AC	1	20~300	80	-55~110
CT101X	Long Creepage 4L	5000	DC	1	50~600	80	-55~110
CT111X	Long Creepage 5L	5000	DC	1	50~600%	80V	-55~110
CT1010-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1011-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1012-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1013-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1014-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1015-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1016-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1017-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1018-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1019-W	Long Creepage-4L	5000	DC	1	50~600**	80	-55~125
CT1110-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1111-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1112-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1113-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1114-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1115-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1116-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1117-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1118-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CT1119-W	Long Creepage-5L	5000	DC	1	50~600**	80	-55~125
CTM131	MFP	3750	DC	2	50~600	80	-55~115
CT357	MFP 4L	3750	DC	1	50~600	80	-55~110
CT354	MFP 4L	3750	DC	1	50~600	80	-55~110
CT357B1(HAO)	MFP-4L	3750	DC	1	100~300	80	-55~110

MOS(SSR) Relays

Part no.	Package	Type	Load Voltage VL [V]	Load Current IL [mA]	ON Resistance Ron [?]	Isolation Voltage Viso [Vrms]
CTR214-4L	SMD-4	1 Form A	400	80	35	5000
CTR214-6L	SMD-6	1 Form A	400	80	35	5000
CTR214-8L	SMD-8	2 Form A	400	80	35	5000
CTR214B-4L	SMD-4	1 Form A	400	300	10	5000
CTR214B-6L	SMD-6	1 Form A	400	300	10	5000
CTR214B-8L	SMD-8	2 Form A	400	300	10	5000
CTR214B-M4	MFP-4	1 Form A	400	300	10	3750
CTR214-M4	MFP-4	1 Form A	400	80	35	3750
CTR215-4L	SMD-4	1 Form A	80	700	0.7	5000
CTR215-6L	SMD-6	1 Form A	80	700	0.7	5000
CTR215-8L	SMD-8	2 Form A	80	700	0.7	5000
CTR215-M4	MFP-4	1 Form A	80	700	0.7	3750
CTR216-4L	SMD-4	1 Form A	600	50	35	5000
CTR216-6L	SMD-6	1 Form A	600	50	35	5000
CTR216-8L	SMD-8	2 Form A	600	50	35	5000
CTR216-M4	MFP-4	1 Form A	600	50	35	3750
