All Products Accelerometer

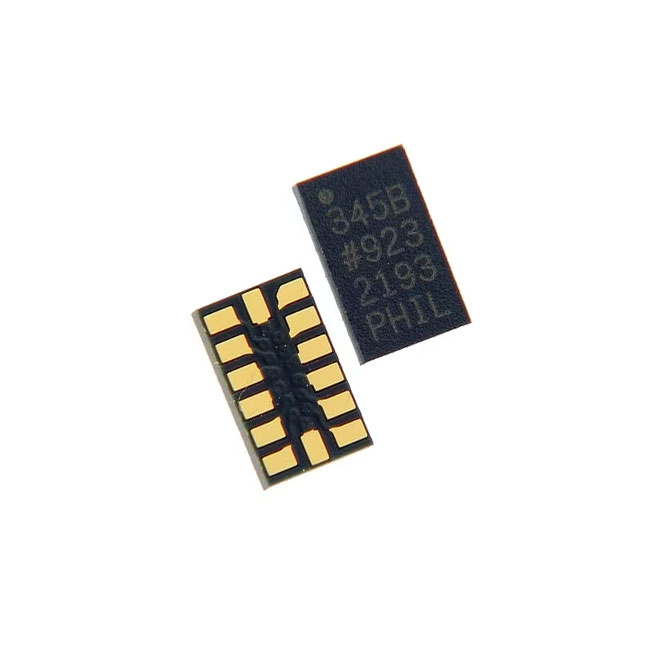

ADXL345BCCZ-RL / The ADXL345BCCZ-RL is a compact, ultra-low power 3-axis digital MEMS accelerometer developed by Analog Devices, designed for motion detection, orientation sensing, and vibration monitoring applications. It provides high-resolution measurement (13-bit) with selectable ranges of ±2g, ±4g, ±8g, and ±16g, enabling precise detection of both small movements and high-impact events.<br><br>The device measures both static acceleration (gravity) for tilt sensing and dynamic acceleration caused by motion, shock, or vibration. Its high sensitivity (~4 mg/LSB) allows detection of inclination changes of less than 1°, making it suitable for precision orientation applications.<br><br>The ADXL345 features flexible digital communication via I2C and SPI interfaces, ensuring easy integration with microcontrollers, embedded systems, and platforms such as Arduino, ESP32, and STM32. It operates over a wide supply voltage range of 2.0V to 3.6V and supports adjustable bandwidth from 0.05 Hz to 1.6 kHz, allowing optimization between power consumption and performance.<br><br>Advanced embedded functions include activity/inactivity detection, single/double tap sensing, free-fall detection, and a 32-level FIFO buffer, reducing processor load and enabling intelligent motion-based power management.<br><br>With its small size, low power consumption, and integrated motion processing features, the ADXL345BCCZ-RL is widely used in applications such as mobile devices, gaming controllers, wearable electronics, industrial monitoring systems, vibration analysis, and IoT motion sensing applications, where accurate and efficient motion detection is required.
ADXL345BCCZ-RL

Description: The ADXL345BCCZ-RL is a compact, ultra-low power 3-axis digital MEMS accelerometer develop ...
Package: T&R | MOQ: 500 | MPQ: 500

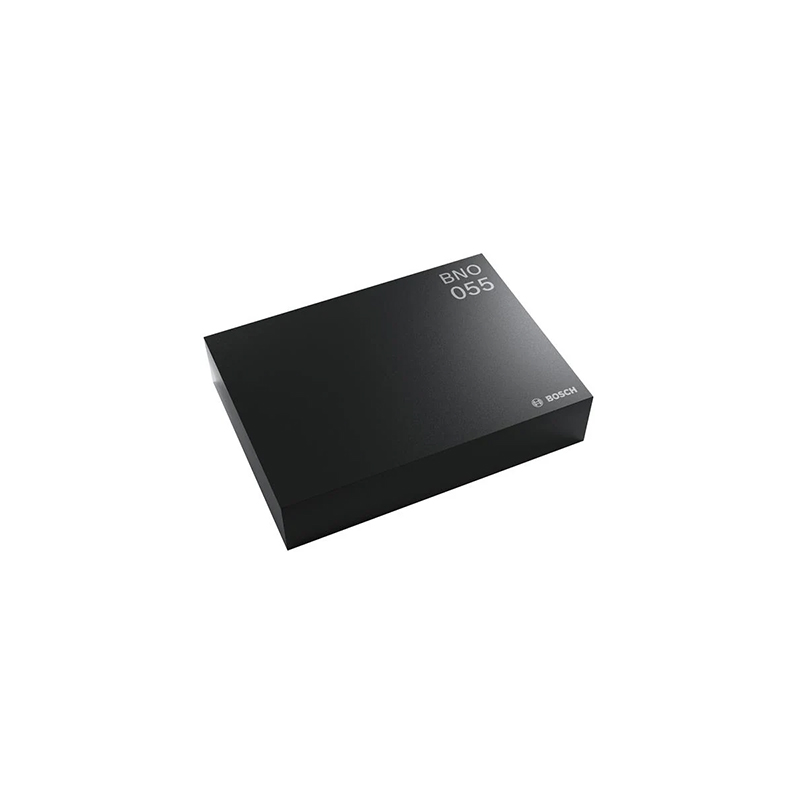

BNO055 / The BNO055 is a highly integrated 9-axis absolute orientation sensor developed by Bosch Sensortec, combining a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer with an onboard microcontroller for real-time sensor fusion. This integration enables the device to output absolute orientation data directly, eliminating the need for complex external processing.<br><br>The sensor supports multiple output formats including Euler angles, quaternions, and rotation vectors, making it ideal for applications requiring accurate motion tracking and orientation detection. Built-in sensor fusion algorithms process raw data internally, significantly reducing system complexity and development time.<br><br>The BNO055 operates over a voltage range of 2.4V to 3.6V and supports communication via I2C and UART interfaces, allowing easy integration with microcontrollers and embedded systems. It also features multiple operating modes, including low-power and high-performance configurations, enabling flexible power management.<br><br>Packaged in a compact LGA-28 form factor, the BNO055 is widely used in applications such as robotics, augmented reality, virtual reality systems, drones, gaming controllers, wearable devices, and industrial motion tracking systems where precise orientation and motion sensing are essential.
BNO055

Description: The BNO055 is a highly integrated 9-axis absolute orientation sensor developed by Bosch Se ...
Package: SMD | MOQ: 1000 | MPQ: 1000

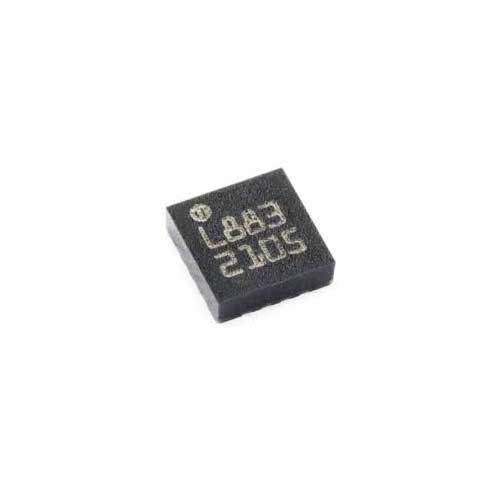

HMC5883L / The HMC5883L is a 3-axis digital magnetometer designed for low-field magnetic sensing and electronic compass applications. It operates with a supply voltage range of 2.16 V to 3.6 V and communicates via an I²C interface. The device provides magnetic field measurements with selectable full-scale ranges (typically up to ±8 gauss) and high resolution, enabling accurate heading and orientation detection. It includes built-in set/reset circuitry, automatic degaussing, and offset cancellation for improved accuracy and stability. The HMC5883L supports configurable data output rates and low power consumption modes, making it suitable for battery-powered applications. It is widely used in navigation systems, drones, robotics, mobile devices, and embedded systems requiring precise compass and orientation sensing.
HMC5883L

Description: The HMC5883L is a 3-axis digital magnetometer designed for low-field magnetic sensing and ...
Package: TRAY | MOQ: 490 | MPQ: 490

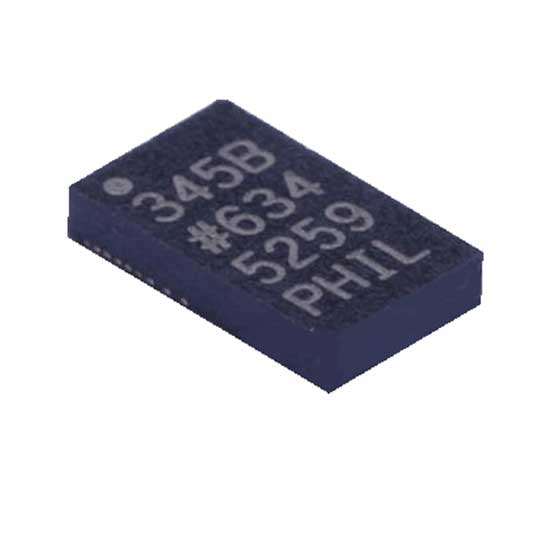

ADXL345BCCZ / The ADXL345BCCZ is a small, low-power, 3-axis digital accelerometer designed for motion sensing and tilt measurement applications. It operates with a supply voltage range of 2.0 V to 3.6 V and supports both I²C and SPI digital communication interfaces. The device provides selectable measurement ranges of ±2g, ±4g, ±8g, and ±16g with high resolution (up to 13-bit). It includes built-in features such as tap/double-tap detection, free-fall detection, activity/inactivity monitoring, and orientation sensing. The ADXL345BCCZ offers low power consumption with multiple power modes, making it suitable for battery-powered applications. It is widely used in mobile devices, wearable electronics, gaming systems, industrial sensing, and embedded applications requiring precise acceleration measurement.
ADXL345BCCZ

Description: The ADXL345BCCZ is a small, low-power, 3-axis digital accelerometer designed for motion se ...
Package: TRAY | MOQ: 490 | MPQ: 490

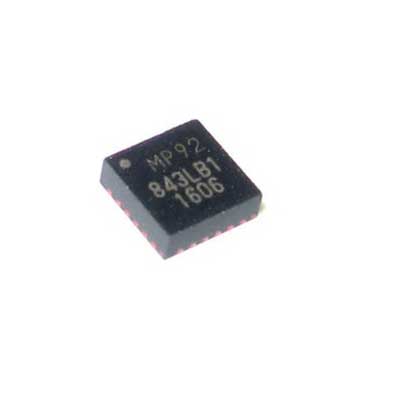

MPU-9250 / The MPU-9250 is a 9-axis motion tracking sensor that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer in a single compact package. It operates with a supply voltage range of 2.4 V to 3.6 V and supports communication via I²C or SPI interfaces. The device includes a built-in Digital Motion Processor (DMP) for offloading sensor fusion and motion processing tasks from the host microcontroller. It offers selectable full-scale ranges for the gyroscope (±250, ±500, ±1000, ±2000 °/s) and accelerometer (±2g, ±4g, ±8g, ±16g), along with an integrated AK8963 magnetometer for heading detection. The MPU-9250 also features an internal temperature sensor, programmable digital filters, and interrupt capabilities. It is widely used in drones, robotics, navigation systems, wearable devices, VR/AR systems, and embedded applications requiring precise 9-axis motion tracking.
MPU-9250

Description: The MPU-9250 is a 9-axis motion tracking sensor that integrates a 3-axis gyroscope, 3-axis ...
Package: TRAY | MOQ: 490 | MPQ: 490

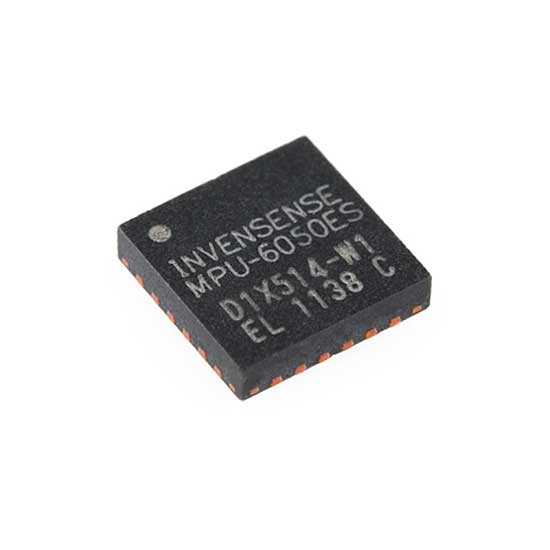

MPU-6050 / The MPU-6050 is a 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-axis accelerometer in a single chip. It operates with a supply voltage range of 2.3 V to 3.4 V and communicates via an I²C interface. The device features a built-in Digital Motion Processor (DMP) that offloads complex motion processing tasks from the host microcontroller. It provides selectable full-scale ranges for the gyroscope (±250, ±500, ±1000, ±2000 °/s) and accelerometer (±2g, ±4g, ±8g, ±16g). The MPU-6050 includes an internal temperature sensor, programmable digital filters, and interrupt capabilities. It is widely used in robotics, drones, gaming controllers, motion tracking systems, stabilization platforms, and embedded applications requiring precise motion sensing.
MPU-6050

Description: The MPU-6050 is a 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-a ...
Package: | MOQ: | MPQ:

IIS2DHTR / The IIS2DHTR is a high-performance ultra-low-power 2-axis digital accelerometer designed for industrial and consumer applications. It features a wide full-scale range of ±2g, ±4g, ±8g, and ±16g, allowing precise motion sensing across various applications. The device boasts a low power consumption mode, making it ideal for battery-powered devices. With its high-resolution 16-bit output and embedded temperature sensor, it ensures accurate and reliable data acquisition. The integrated FIFO buffer minimizes power consumption by reducing the need for frequent processor interaction. It also supports wake-up and free-fall detection, as well as tilt, activity/inactivity, and motion detection, enhancing its usability in IoT, wearable, and industrial monitoring systems. Additionally, the I²C/SPI digital interfaces enable seamless integration with microcontrollers. The embedded self-test feature ensures device reliability, while its compact LGA package makes it suitable for space-constrained designs.
IIS2DHTR

Description: The IIS2DHTR is a high-performance ultra-low-power 2-axis digital accelerometer designed f ...
Package: T&R | MOQ: 1000 | MPQ: 8000

IIS2MDCTR / ​The IIS2MDCTR is a high-accuracy, ultra-low-power 3-axis digital magnetometer from STMicroelectronics, designed for precise magnetic field measurements in various applications. It offers a magnetic field dynamic range up to ±50 gauss and delivers 16-bit data output. The sensor supports both I²C and SPI interfaces, accommodating standard, fast mode, fast mode plus, and high-speed communications at frequencies of 100 kHz, 400 kHz, 1 MHz, and 3.4 MHz. Operating within a supply voltage range of 1.71 V to 3.6 V, the IIS2MDCTR is suitable for battery-powered devices. It features an embedded temperature sensor, programmable interrupt generator for magnetic field detection, and self-test capability. The device is housed in a compact 12-lead LGA package measuring 2 mm x 2 mm x 0.7 mm and operates over an extended temperature range from -40°C to +85°C. These characteristics make the IIS2MDCTR ideal for applications such as compasses in inertial measurement units (IMUs), presence detection, and variable magnetic field monitoring. ​
IIS2MDCTR

Description: ​The IIS2MDCTR is a high-accuracy, ultra-low-power 3-axis digital magnetometer from STMi ...
Package: T&R | MOQ: 1000 | MPQ: 10000

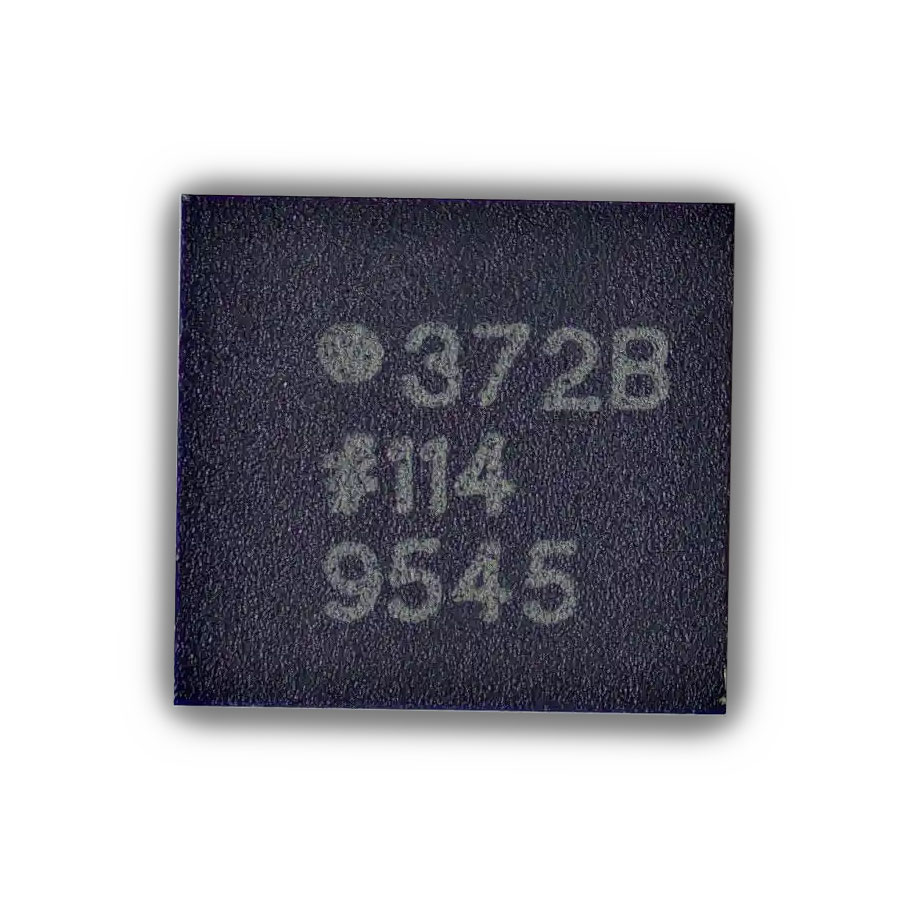

ADXL372BCCZ-RL7 / The ADXL372BCCZ-RL7 is a high-performance, low-power, 3-axis MEMS accelerometer from Analog Devices, designed for precise motion and vibration sensing in industrial applications. It offers selectable measurement ranges of ±2g, ±4g, or ±8g, with a bandwidth of up to 1.5kHz, enabling detailed motion analysis. Operating over a supply voltage range of 2.25V to 3.6V, it features digital output through I2C or SPI interfaces for flexible integration. The accelerometer is housed in a compact 14-CLCC (6x6 mm) package and is designed to function within an operating temperature range of -40°C to 125°C.
ADXL372BCCZ-RL7

Description: The ADXL372BCCZ-RL7 is a high-performance, low-power, 3-axis MEMS accelerometer from Analo ...
Package: T&R | MOQ: 1500 | MPQ: 1500

ADXL355BEZ-RL7 / The ADXL355BEZ-RL7 is a high-precision, low-noise 3-axis MEMS accelerometer designed for industrial and high-accuracy motion sensing applications. It operates with a supply voltage range of approximately 2.25 V to 3.6 V and provides selectable measurement ranges of ±2g, ±4g, and ±8g. The device features ultra-low noise density (as low as ~20 µg/√Hz) and very low offset drift over temperature, enabling precise and stable measurements over time.<br><br>It includes a high-resolution 20-bit ADC and supports both I²C and SPI digital interfaces for flexible system integration. The accelerometer offers programmable bandwidth (up to ~1.5 kHz) and low power consumption (~200 µA in measurement mode), making it suitable for battery-powered and embedded systems.<br><br>The ADXL355BEZ-RL7 is widely used in vibration analysis, structural health monitoring, industrial automation, robotics, and precision instrumentation where long-term stability and high measurement accuracy are critical.
ADXL355BEZ-RL7

Description: The ADXL355BEZ-RL7 is a high-precision, low-noise 3-axis MEMS accelerometer designed for i ...
Package: T&R | MOQ: 500 | MPQ: 500

LIS2DW12TR / Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 400Hz 12-LGA (2*2mm)
LIS2DW12TR

Description: Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 400Hz 12-LGA (2*2mm) ...
Package: T&R | MOQ: 10000 | MPQ: 10000

ADXL335BCPZ / The ADXL335BCPZ is a small, low power, complete 3-axis accelerometer with signal conditioned analog voltage outputs, designed to measure acceleration in the ±3 g range. It operates over a supply voltage range of 1.8V to 3.6V and features low current consumption of approximately 350 µA. The device provides ratiometric analog outputs for X, Y, and Z axes, with sensitivity typically around 300 mV/g and bandwidth configurable from 0.5 Hz up to 1600 Hz (X/Y) and 550 Hz (Z) using external capacitors. It offers low noise performance (~150 µg/√Hz), high shock survivability (up to 10,000 g), and fast response time. The sensor operates over a temperature range of -40°C to +85°C and is housed in a compact 4x4 mm LFCSP-16 package, making it ideal for motion detection, tilt sensing, vibration monitoring, and portable device applications.
ADXL335BCPZ

Description: The ADXL335BCPZ is a small, low power, complete 3-axis accelerometer with signal condition ...
Package: TRAY | MOQ: 302 | MPQ: 151
