ADIS16505-2BMLZ

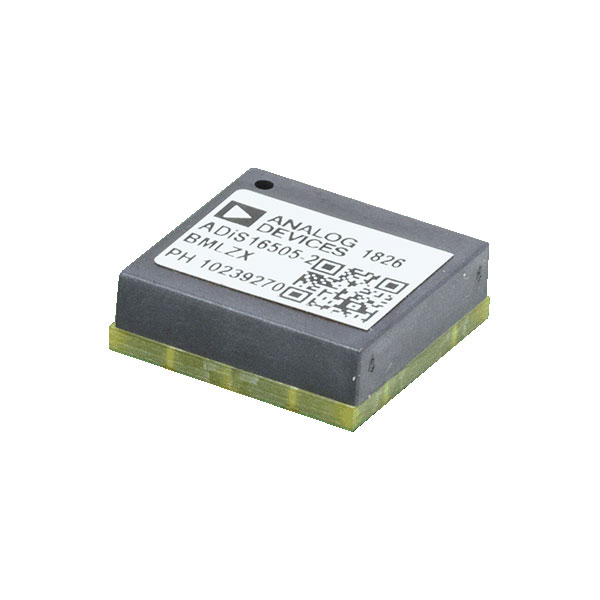

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADIS16505-2BMLZ |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADIS16505-2BMLZ is a high-precision 6 degrees of freedom MEMS inertial measurement unit (IMU) developed by Analog Devices, integrating a triaxial gyroscope and a triaxial accelerometer within a compact industrial-grade module. It is optimized for applications requiring accurate motion sensing, orientation measurement, stabilization, and navigation performance. This device combines a ±500°/s gyroscope dynamic range with a ±8g accelerometer measurement range, enabling precise detection of angular velocity and linear acceleration in demanding motion-control systems. The integrated signal conditioning architecture helps deliver stable and repeatable sensor outputs across a broad range of operating conditions. The ADIS16505-2BMLZ is supplied with extensive factory calibration for sensitivity, bias, alignment, linear acceleration effects, and point-of-percussion compensation, reducing development effort and improving system-level accuracy. This calibration approach minimizes integration complexity compared with discrete sensor implementations. Communication is provided through a SPI-compatible digital interface, allowing efficient connectivity with microcontrollers, embedded processors, DSPs, and FPGA-based control systems. Additional features include programmable operation modes, synchronization capabilities, diagnostic functions, and built-in self-test support for enhanced system reliability. The module operates from a 3.0V to 3.6V supply voltage and supports an industrial operating temperature range of -40°C to +105°C. Its rugged construction offers excellent resistance to mechanical shock and vibration, making it suitable for harsh environments. Packaged in a compact 100-ball BGA module measuring approximately 15mm × 15mm, the ADIS16505-2BMLZ provides a space-efficient solution for advanced motion sensing applications. The ADIS16505-2BMLZ is widely used in navigation systems, robotics, industrial automation, autonomous vehicles, unmanned platforms, stabilization equipment, smart agriculture machinery, instrumentation systems, and virtual or augmented reality applications, where highly accurate inertial measurement data is required. |
| Product Group | Accelerometer |
| MOQ | 1 pcs |
| SPQ | 1 pcs |
| Figure/Case | 100-BGA Module |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
