All Products FPGA

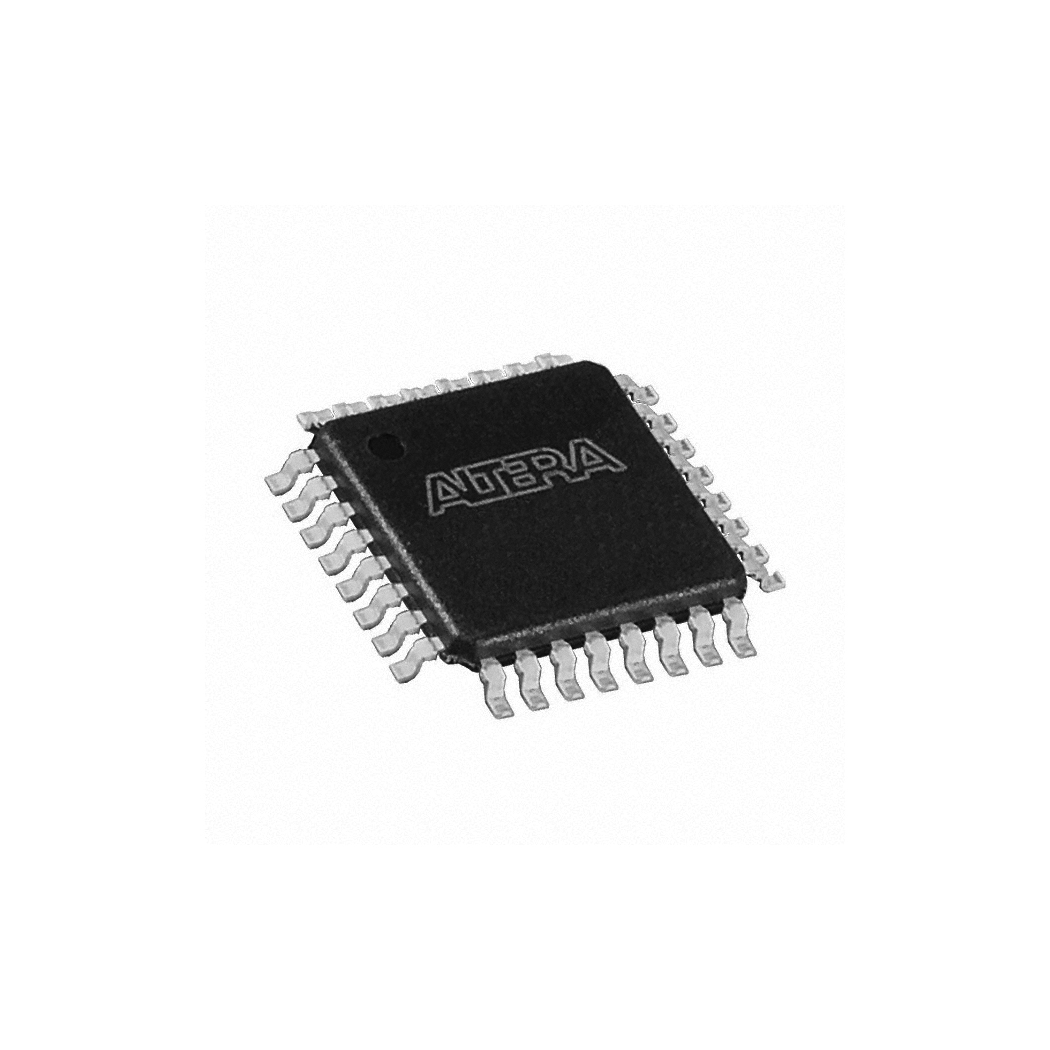

EPC2TI32N / The EPC2TI32N is a reliable <strong>FPGA configuration memory device (PROM)</strong> developed by <strong>Altera (now Intel)</strong>, designed to store and load configuration data for SRAM-based FPGA devices. It provides a non-volatile storage solution that automatically configures the FPGA at power-up. <br><br>This device offers a memory capacity of <strong>1.6Mbit</strong>, enabling it to store configuration bitstreams for a wide range of Altera FPGA families. It supports <strong>in-system programmability (ISP)</strong> via a <strong>JTAG interface</strong>, allowing easy updates without removing the component from the PCB. <br><br>The EPC2TI32N operates over a flexible <strong>supply voltage range of 3.0V to 5.5V</strong>, making it compatible with both 3.3V and 5V system designs. It also supports clock frequencies up to approximately <strong>16.7 MHz</strong> for efficient configuration data transfer. <br><br>Built using <strong>flash-based memory technology</strong>, the device ensures reliable data retention and robust operation across industrial environments. It supports an operating temperature range of <strong>-40°C to +85°C</strong>, making it suitable for demanding applications. <br><br>The EPC2TI32N is packaged in a compact <strong>32-pin TQFP surface-mount form factor</strong>, enabling efficient PCB layout and easy integration into embedded designs. <br><br>The <strong>EPC2TI32N</strong> is widely used in <strong>FPGA-based systems, industrial automation, communication equipment, embedded control systems, and digital logic applications</strong>, where reliable configuration storage and fast startup are required.
EPC2TI32N

Description: The EPC2TI32N is a reliable FPGA configuration memory device (PROM) devel ...
Package: TRAY | MOQ: 250 | MPQ: 250

EPM7160SLI84-10 / The EPM7160SLI84-10 is a high-performance <strong>complex programmable logic device (CPLD)</strong> from <strong>Altera (now Intel)</strong>, belonging to the widely used <strong>MAX® 7000S family</strong>. It provides <strong>160 macrocells and approximately 3200 usable gates</strong>, enabling implementation of complex digital logic functions in embedded and industrial systems. <br><br>The device features <strong>in-system programmability (ISP)</strong> via a standard JTAG interface, allowing designers to configure and update logic without removing the component from the PCB. It operates with a propagation delay of approximately <strong>10 ns</strong>, supporting high-speed logic operations. <br><br>Built using EEPROM-based architecture, the EPM7160SLI84-10 offers <strong>non-volatile configuration storage</strong>, ensuring that logic is retained even when power is removed. It supports a supply voltage range of <strong>4.5V to 5.5V</strong>, making it compatible with standard 5V systems. <br><br>The device includes up to <strong>64 user I/O pins</strong> and multiple logic array blocks, enabling flexible interfacing and complex logic integration. It is optimized for deterministic timing and predictable performance in control and interface applications. <br><br>Encased in a durable <strong>84-pin PLCC surface-mount package</strong>, the device is suitable for industrial environments and high-reliability applications. It operates across a temperature range of <strong>-40°C to +85°C</strong>, ensuring stable performance under varying conditions. <br><br>The <strong>EPM7160SLI84-10</strong> is widely used in <strong>industrial control systems, interface bridging, glue logic, state machines, and embedded digital designs</strong>, where reliable programmable logic and long-term stability are required.
EPM7160SLI84-10

Description: The EPM7160SLI84-10 is a high-performance complex programmable logic device (CPLD) ...
Package: TRAY | MOQ: 45 | MPQ: 15

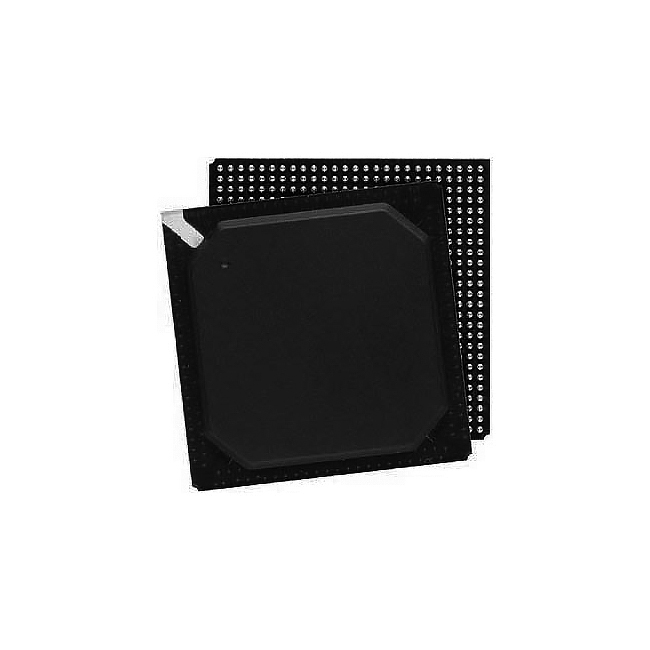

LFXP2-30E-5FN484I / The LFXP2-30E-5FN484I is a versatile <strong>field programmable gate array (FPGA)</strong> developed by <strong>Lattice Semiconductor</strong>, designed for low-power, high-performance programmable logic applications. It provides approximately <strong>30K logic elements (LUTs)</strong>, enabling flexible implementation of complex digital logic functions and system integration. <br><br>This device belongs to the <strong>LatticeXP2™ family</strong>, which combines non-volatile configuration memory with SRAM-based FPGA architecture, allowing instant-on operation without the need for an external configuration device. It supports <strong>in-system programmability</strong>, enabling design updates even after deployment. <br><br>The LFXP2-30E-5FN484I offers a wide range of embedded resources, including <strong>block RAM, distributed RAM, DSP blocks, and PLLs</strong>, making it suitable for signal processing, control logic, and communication interfaces. It also includes <strong>high-speed I/O interfaces</strong> supporting various standards for flexible connectivity. <br><br>Optimized for low power consumption, the device is ideal for applications where energy efficiency is critical. It operates across industrial temperature ranges and supports <strong>robust configuration security features</strong>, ensuring reliable system operation. <br><br>Housed in a <strong>484-ball FBGA surface-mount package</strong>, the FPGA provides high I/O density and is suitable for complex PCB designs requiring compact integration. <br><br>The <strong>LFXP2-30E-5FN484I</strong> is widely used in <strong>industrial automation, communications equipment, embedded control systems, consumer electronics, and interface bridging applications</strong>, where flexible, reconfigurable logic and low power operation are essential.
LFXP2-30E-5FN484I

Description: The LFXP2-30E-5FN484I is a versatile field programmable gate array (FPGA) ...
Package: TRAY | MOQ: 90 | MPQ: 90

XC6SLX150-3FGG900I / ​The XC6SLX150-3FGG900I is a high-performance Field Programmable Gate Array (FPGA) from Xilinx Spartan-6 LX series, designed to deliver efficient system integration for cost-sensitive applications. Fabricated using a 45 nm process technology, it offers a balance between power consumption and performance. The device features approximately 147,443 logic cells and 11,519 Configurable Logic Blocks (CLBs), providing substantial resources for complex digital designs. It includes 4,939,776 bits of total RAM, facilitating efficient data storage and retrieval. With 576 versatile I/O pins, the FPGA supports data transfer rates up to 1,080 Mb/s per differential I/O, accommodating a range of I/O standards from 3.3V to 1.2V. Operating at a core voltage of 1.2V, the FPGA supports an operating temperature range from -40°C to 100°C, making it suitable for diverse environmental conditions. The device also incorporates efficient DSP48A1 slices for high-performance arithmetic and signal processing, integrated memory controller blocks compatible with DDR, DDR2, DDR3, and LPDDR, and Clock Management Tiles (CMTs) featuring Digital Clock Managers (DCMs) and Phase-Locked Loops (PLLs) for flexible, low-noise clocking. Security features include a unique Device DNA identifier for design authentication and AES bitstream encryption for enhanced design protection. These attributes make the XC6SLX150-3FGG900I well-suited for applications in digital signal processing, communications systems, industrial control, automotive systems, and aerospace and defense sectors. ​
XC6SLX150-3FGG900I

Description: ​The XC6SLX150-3FGG900I is a high-performance Field Programmable Gate Array (FPGA) from ...
Package: TRAY | MOQ: 27 | MPQ: 27

EP3C5E144C8N / The EP3C5E144C8N is a low-cost, high-performance FPGA from Altera Cyclone® III family, designed for power-efficient and flexible digital logic applications. Built on a 65 nm process technology, this FPGA offers 5,136 logic elements (LEs) and 423,936 embedded memory bits, making it suitable for applications requiring moderate processing power and memory resources. It operates within a 1.15 V to 1.25 V supply range and supports a maximum operating frequency of 315 MHz. The device is housed in a 144-pin EQFP package, providing 94 user I/O pins for flexible connectivity. With a surface-mount design (SMD/SMT) and RoHS compliance, it is ideal for various embedded systems, communications, and industrial applications. Its Moisture Sensitivity Level (MSL) 3 rating ensures reliable operation under controlled environmental conditions. The EP3C5E144C8N balances cost, performance, and power efficiency, making it a popular choice for designers looking for an affordable FPGA solution.
EP3C5E144C8N

Description: The EP3C5E144C8N is a low-cost, high-performance FPGA from Altera Cyclone® III family, de ...
Package: TRAY | MOQ: 120 | MPQ: 60

10M16SAU324I7G / MAX® 10 Field Programmable Gate Array (FPGA) IC 246 562176 16000 324-LFBGA, 562176 Total RAM bits
10M16SAU324I7G

Description: MAX® 10 Field Programmable Gate Array (FPGA) IC 246 562176 16000 324-LFBGA, 562176 Total ...
Package: TRAY | MOQ: 119 | MPQ: 119

10M02SCU169I7G / MAX® 10 Field Programmable Gate Array (FPGA) IC 130 110592 2000 169-LFBGA
10M02SCU169I7G

Description: MAX® 10 Field Programmable Gate Array (FPGA) IC 130 110592 2000 169-LFBGA ...
Package: TRAY | MOQ: 176 | MPQ: 176

EP3C25E144C8N / Cyclone III Field Programmable Gate Array (FPGA) IC 82 608256 24624 144-LQFP Exposed Pad
EP3C25E144C8N

Description: Cyclone III Field Programmable Gate Array (FPGA) IC 82 608256 24624 144-LQFP Exposed Pad ...
Package: TRAY | MOQ: 60 | MPQ: 60

EP4CGX150CF23I7N / The EP4CGX150CF23I7N is a high-performance <strong>FPGA (Field Programmable Gate Array)</strong> from the <strong>Intel (formerly Altera) Cyclone IV GX family</strong>, designed for high-speed communication, signal processing, and embedded system applications. It offers a powerful combination of logic density, transceiver capability, and energy efficiency. <br><br>The device integrates approximately <strong>149,760 logic elements and 9,360 LABs (Logic Array Blocks)</strong>, providing substantial programmable resources for complex digital designs and hardware acceleration. It also includes around <strong>6.6 Mbits of embedded memory</strong>, enabling efficient buffering and data processing. <br><br>The EP4CGX150CF23I7N features up to <strong>270 user I/O pins</strong>, allowing extensive connectivity with external peripherals such as memory, ADCs, DACs, and communication interfaces. It operates with a core voltage of approximately <strong>1.2V (1.15V–1.25V range)</strong>, ensuring low power consumption while maintaining high performance. <br><br>One of its key advantages is the integration of <strong>high-speed serial transceivers (up to 3.125 Gbps)</strong>, making it suitable for communication protocols, high-speed data links, and networking applications. It also supports <strong>PLL blocks, DSP capabilities, and advanced clock management</strong> for flexible system design. <br><br>The FPGA supports operating frequencies up to approximately <strong>200 MHz</strong>, depending on design implementation, and is rated for industrial environments with a temperature range of <strong>-40°C to +100°C</strong>. <br><br>Packaged in a compact <strong>484-ball FBGA surface-mount form factor</strong>, the EP4CGX150CF23I7N is optimized for high-density PCB layouts and reliable high-speed signal integrity. <br><br>The <strong>EP4CGX150CF23I7N</strong> is widely used in applications such as <strong>high-speed communication systems, industrial automation, video and image processing, data acquisition, networking equipment, and FPGA-based embedded platforms</strong>, where performance, flexibility, and integration are critical.
EP4CGX150CF23I7N

Description: The EP4CGX150CF23I7N is a high-performance FPGA (Field Programmable Gate Array) ...
Package: TRAY | MOQ: 60 | MPQ: 60

EP4CE10F17I7N / The EP4CE10F17I7N is a cost-effective and power-efficient <strong>FPGA (Field Programmable Gate Array)</strong> from the <strong>Intel (formerly Altera) Cyclone IV E family</strong>, designed for high-volume embedded applications requiring flexible digital logic implementation. It offers a balance between performance, power consumption, and integration. <br><br>The device integrates approximately <strong>10,320 logic elements</strong> and <strong>645 logic array blocks (LABs)</strong>, enabling implementation of complex digital circuits, control logic, and custom hardware acceleration. It also includes about <strong>414 Kbits of embedded memory</strong>, supporting buffering and data processing tasks. <br><br>The EP4CE10F17I7N provides up to <strong>179 user I/O pins</strong>, allowing flexible interfacing with external components such as memory devices, sensors, and communication peripherals. It operates with a core voltage range of <strong>1.15V to 1.25V (typ. 1.2V)</strong>, ensuring low power consumption while maintaining reliable performance. <br><br>Built on advanced FPGA architecture, the device supports <strong>DSP processing blocks, PLLs, and high-speed I/O standards</strong>, enabling applications such as signal processing, communication interfaces, and embedded control systems. It can operate at frequencies up to approximately <strong>200 MHz</strong>, depending on design implementation. <br><br>Packaged in a compact <strong>256-ball FBGA surface-mount form factor</strong>, the EP4CE10F17I7N is optimized for high-density PCB layouts and automated manufacturing processes. It supports an industrial temperature range of <strong>-40°C to +100°C</strong>, making it suitable for harsh environments. <br><br>The <strong>EP4CE10F17I7N</strong> is widely used in applications such as <strong>industrial automation, communication systems, embedded control, motor control, data acquisition, and FPGA-based signal processing systems</strong>, where flexibility, reliability, and low power consumption are critical.
EP4CE10F17I7N

Description: The EP4CE10F17I7N is a cost-effective and power-efficient FPGA (Field Programmable ...
Package: TRAY | MOQ: 90 | MPQ: 90

EP3C25U256I7N / The EP3C25U256I7N is a high-performance <strong>FPGA (Field Programmable Gate Array)</strong> from the <strong>Intel (formerly Altera) Cyclone III family</strong>, designed for cost-sensitive and power-efficient embedded applications. It provides a flexible programmable logic platform suitable for a wide range of digital system designs. <br><br>The device features approximately <strong>24,624 logic elements</strong> and <strong>1,539 logic array blocks (LABs)</strong>, enabling complex digital processing, control logic, and custom hardware acceleration. It also includes around <strong>608 Kbits of embedded memory</strong>, supporting buffering, data storage, and signal processing tasks. <br><br>The EP3C25U256I7N offers up to <strong>156 user I/O pins</strong>, allowing extensive interfacing with external components such as ADCs, DACs, memory devices, and communication peripherals. It operates with a core voltage range of approximately <strong>1.15V to 1.25V</strong>, ensuring low power consumption while maintaining high performance. <br><br>With a maximum operating frequency of around <strong>300+ MHz</strong>, the FPGA supports high-speed digital designs and real-time processing applications. Its architecture enables implementation of custom logic functions, DSP algorithms, and hardware interfaces with high efficiency. <br><br>The device is housed in a compact <strong>256-ball UBGA surface-mount package</strong>, optimized for high-density PCB layouts and reliable signal integrity in advanced designs. It supports industrial temperature ranges of <strong>-40°C to +100°C</strong>, making it suitable for harsh environments. <br><br>The <strong>EP3C25U256I7N</strong> is widely used in applications such as <strong>industrial automation, communication systems, embedded processing, video and image processing, data acquisition systems, and FPGA-based control platforms</strong>, where flexibility, performance, and low power consumption are critical.
EP3C25U256I7N

Description: The EP3C25U256I7N is a high-performance FPGA (Field Programmable Gate Array) ...
Package: TRAY | MOQ: 119 | MPQ: 119
