EPM7160SLI84-10

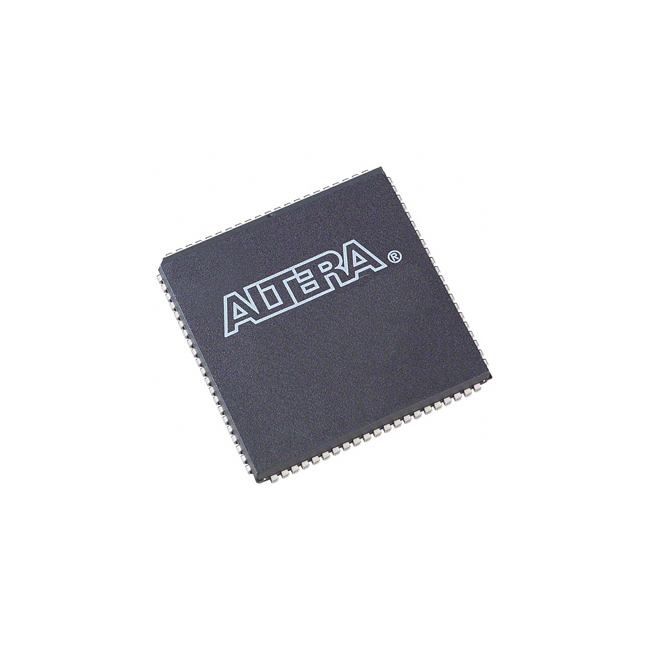

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | EPM7160SLI84-10 |
|---|---|
| Manufacturer |
 ALTERA
|
| Description | The EPM7160SLI84-10 is a high-performance complex programmable logic device (CPLD) from Altera (now Intel), belonging to the widely used MAX® 7000S family. It provides 160 macrocells and approximately 3200 usable gates, enabling implementation of complex digital logic functions in embedded and industrial systems. The device features in-system programmability (ISP) via a standard JTAG interface, allowing designers to configure and update logic without removing the component from the PCB. It operates with a propagation delay of approximately 10 ns, supporting high-speed logic operations. Built using EEPROM-based architecture, the EPM7160SLI84-10 offers non-volatile configuration storage, ensuring that logic is retained even when power is removed. It supports a supply voltage range of 4.5V to 5.5V, making it compatible with standard 5V systems. The device includes up to 64 user I/O pins and multiple logic array blocks, enabling flexible interfacing and complex logic integration. It is optimized for deterministic timing and predictable performance in control and interface applications. Encased in a durable 84-pin PLCC surface-mount package, the device is suitable for industrial environments and high-reliability applications. It operates across a temperature range of -40°C to +85°C, ensuring stable performance under varying conditions. The EPM7160SLI84-10 is widely used in industrial control systems, interface bridging, glue logic, state machines, and embedded digital designs, where reliable programmable logic and long-term stability are required. |
| Product Group | FPGA |
| MOQ | 45 pcs |
| SPQ | 15 pcs |
| Figure/Case | PLCC-84 |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
EPM7160SLI84-10
