EP4CE6E22C8N, FPGA, from ALTERA Signal HK Limited Independent Distributor Stock

EP4CE6E22C8N, FPGA, from ALTERA in Stock Hong Kong The EP4CE6E22C8N is a versatile <strong>Field Programmable Gate Array (FPGA)</strong> from <strong>Altera (Intel FPGA)</strong>, belonging to the popu

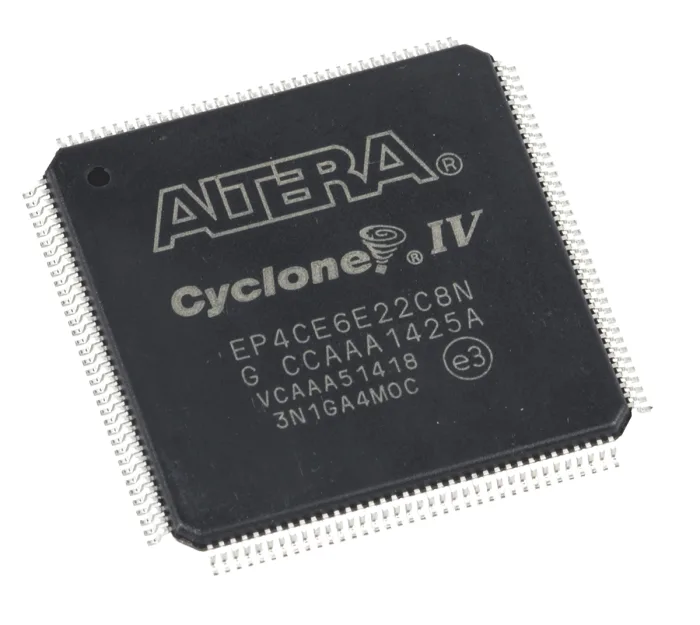

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.

Part Number	EP4CE6E22C8N
Manufacturer	ALTERA
Description	The EP4CE6E22C8N is a versatile Field Programmable Gate Array (FPGA) from Altera (Intel FPGA), belonging to the popular Cyclone® IV E family. Designed for cost-sensitive embedded systems, industrial automation, communications, consumer electronics, and digital signal processing applications, it delivers an excellent combination of logic density, low power consumption, and design flexibility. The device integrates 6,272 logic elements (LEs), approximately 276 Kbits of embedded RAM, and up to 91 user I/O pins, providing sufficient resources for implementing complex digital logic, communication interfaces, control systems, and custom hardware accelerators. Its architecture enables designers to replace multiple discrete logic devices with a single programmable solution. Built on an optimized low-power process technology, the EP4CE6E22C8N operates with a core voltage of 1.2V, offering excellent energy efficiency while maintaining reliable high-speed performance. The FPGA also incorporates two integrated PLLs for flexible clock generation, clock multiplication, clock division, and clock management across complex digital designs. The Cyclone® IV E architecture includes dedicated embedded memory blocks, hardware multipliers, DSP resources, and configurable logic array blocks (LABs), allowing efficient implementation of digital filters, motor control algorithms, communication protocols, image processing, and real-time signal processing applications. The EP4CE6E22C8N supports numerous industry-standard interfaces including SPI, I²C, UART, SDRAM, DDR memory interfaces, GPIO, LVDS, and custom parallel communication buses. Its flexible I/O architecture enables straightforward integration with microcontrollers, processors, sensors, displays, and external peripherals. Compatible with Intel® Quartus® Prime Lite and Standard Edition development software, the FPGA supports VHDL, Verilog, SystemVerilog, and schematic-based design entry. Designers can implement custom logic, soft-core processors, communication controllers, and digital signal processing functions while taking advantage of a mature development ecosystem. Packaged in a compact 144-pin EQFP package, the EP4CE6E22C8N offers excellent manufacturability and is suitable for automated PCB assembly while providing sufficient I/O density for a wide range of embedded applications. The EP4CE6E22C8N is widely used in industrial automation, embedded controllers, motor control systems, communication equipment, LED display controllers, FPGA development boards, robotics, medical electronics, test and measurement instruments, digital signal processing, protocol conversion, data acquisition systems, and custom programmable logic applications.
Product Group	FPGA
MOQ	1 pcs
SPQ	1 pcs
Figure/Case	LQFP-144
Package	TRAY Pack
PDF	PDF Datasheet
Ship From	Hong Kong
Shipment Way	DHL / Fedex / TNT / UPS / Others
Delivery Term	Ex-Works
Send RFQ	sales@signalhk.com

Request quotation for
EP4CE6E22C8N
