W25Q16JVSNIQ

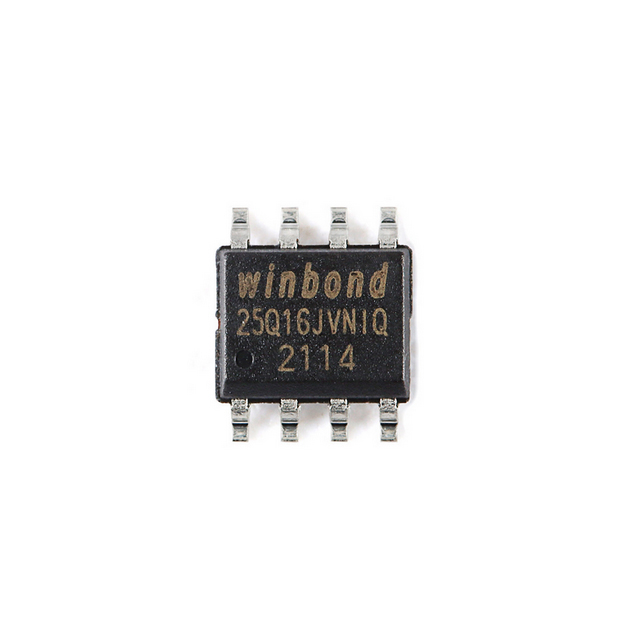

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | W25Q16JVSNIQ |
|---|---|
| Manufacturer |
 Winbond
|
| Description | The W25Q16JVSNIQ is a high-performance 16Mbit serial NOR Flash memory developed by Winbond, designed for embedded firmware storage, execute-in-place applications, and non-volatile data retention systems. It utilizes a high-speed SPI and Quad SPI (QSPI) serial interface, enabling efficient communication with microcontrollers, processors, DSPs, and FPGA platforms. The device provides a memory organization of 2M × 8-bit and supports serial clock frequencies up to approximately 133 MHz, allowing high-speed read access and accelerated data throughput in Quad SPI operation for performance-sensitive embedded systems. The W25Q16JVSNIQ operates from a supply voltage range of approximately 2.7V to 3.6V, making it suitable for low-power and portable electronics. It also includes deep power-down functionality and low standby current operation to help reduce overall system energy consumption. The Flash memory supports flexible erase and programming functions including 4KB sector erase, 32KB/64KB block erase, chip erase, and page programming operations, enabling efficient firmware updates and memory management. Internal program and erase control logic simplify external controller implementation. Advanced integrated features such as JEDEC standard identification, hardware and software write protection, security registers, suspend/resume functionality, and SFDP support improve compatibility, data integrity, and system flexibility in embedded designs. The device also supports execute-in-place (XiP) operation, enabling processors to directly execute firmware stored in external Flash memory without requiring large RAM resources, helping reduce system cost and complexity. Packaged in a compact 8-pin SOIC wide-body surface-mount package, the W25Q16JVSNIQ is optimized for automated PCB assembly and robust embedded system integration. The W25Q16JVSNIQ is widely used in industrial controllers, communication systems, IoT devices, consumer electronics, BIOS storage, embedded platforms, and FPGA configuration applications, where reliable high-speed serial Flash memory is required. |
| Product Group | FLASH |
| MOQ | 2080 pcs |
| SPQ | 2080 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
W25Q16JVSNIQ
W25Q16JVSNIQ
