W25Q80DVSSIG

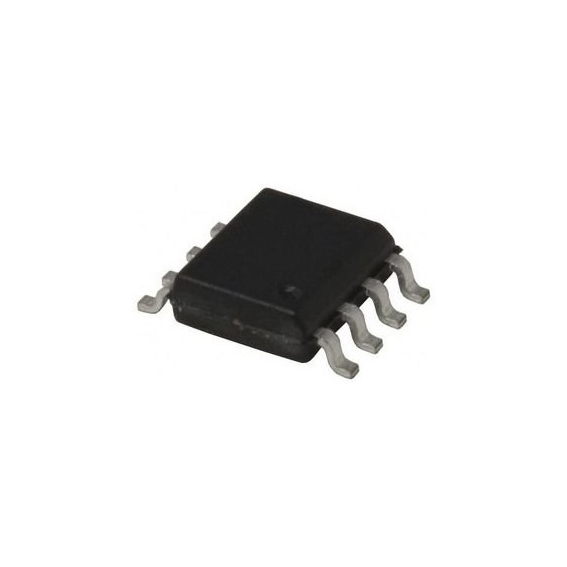

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | W25Q80DVSSIG |
|---|---|
| Manufacturer |
 Winbond
|
| Description | The W25Q80DVSSIG is a reliable and high-speed 8Mbit serial NOR Flash memory developed by Winbond, designed for firmware storage, embedded code execution, and non-volatile data retention applications. It utilizes a high-performance SPI and Quad SPI (QSPI) serial interface, enabling efficient communication with microcontrollers, DSPs, FPGAs, and embedded processors. The device provides a memory organization of 1M × 8-bit and supports high-speed serial clock frequencies up to approximately 104 MHz, with enhanced throughput available in Quad SPI mode for fast data transfer and execute-in-place (XiP) functionality. The W25Q80DVSSIG operates from a supply voltage range of approximately 2.7V to 3.6V, making it suitable for low-power and battery-operated electronic systems. It also includes low standby current and deep power-down operating modes to help minimize energy consumption. The Flash memory supports flexible erase and programming operations including 4KB sector erase, 32KB/64KB block erase, chip erase, and page program functions, allowing efficient firmware management and field updates. Integrated internal control logic simplifies system implementation and reduces processor overhead. Advanced features such as JEDEC standard identification, hardware/software write protection, security registers, suspend/resume functionality, and serial flash discoverable parameters (SFDP) improve system compatibility, reliability, and data security. The W25Q80DVSSIG also supports execute-in-place capability, enabling processors to directly execute program code from external Flash memory without requiring full code loading into RAM. Packaged in a compact 8-pin SOIC surface-mount package, the W25Q80DVSSIG is optimized for automated assembly and space-efficient PCB designs. The W25Q80DVSSIG is widely used in embedded systems, industrial controllers, communication equipment, consumer electronics, IoT modules, BIOS storage, and FPGA configuration applications, where reliable high-speed non-volatile memory is required. |
| Product Group | FLASH |
| MOQ | 2080 pcs |
| SPQ | 2080 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
W25Q80DVSSIG
