ADXL343BCCZ-RL7

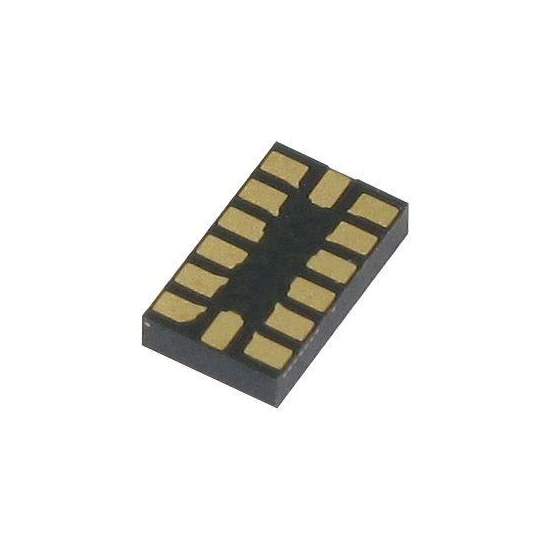

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADXL343BCCZ-RL7 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADXL343BCCZ-RL7 is a compact, low-power 3-axis digital MEMS accelerometer manufactured by Analog Devices (ADI). It provides high-resolution acceleration measurements along the X, Y and Z axes, making it suitable for motion detection, orientation sensing, portable electronics and embedded measurement systems. The ADXL343 supports four selectable full-scale measurement ranges: ±2g, ±4g, ±8g and ±16g. Its full-resolution measurement mode provides approximately 3.9mg/LSB sensitivity, delivering up to 13-bit resolution at the ±16g range. This enables the measurement of both static gravitational acceleration and dynamic acceleration caused by motion or shock. The device offers programmable output data rates from 0.1Hz to 3200Hz and adjustable bandwidth. An integrated 32-level FIFO buffer reduces the frequency of host processor communication, helping improve overall system efficiency. Advanced motion detection features include single-tap detection, double-tap detection, activity and inactivity monitoring, and free-fall detection. Programmable interrupt outputs allow the sensor to notify the host processor when configured motion events occur. The ADXL343 communicates through I2C and 3-wire or 4-wire SPI digital interfaces, providing flexible connectivity with microcontrollers and embedded processors. It operates from a 2.0V to 3.6V supply voltage with approximately 140µA typical operating current. The device is supplied in a compact 14-terminal LGA surface-mount package measuring 5 × 3mm, with manufacturer package designation CC-14-1. It supports an operating temperature range of -40°C to +85°C and is RoHS compliant. Typical applications include wearable electronics, portable devices, robotics, gaming controllers, industrial vibration monitoring, tilt detection, motion-sensitive interfaces, and embedded data acquisition systems. Packaging: The ADXL343BCCZ-RL7 ordering code specifies 1,500 pieces per manufacturer tape-and-reel package. The related ADXL343BCCZ-RL variant is supplied on a 5,000-piece reel, while ADXL343BCCZ is the tray-packaged version. Product Lifecycle: The ADXL343BCCZ-RL7 is listed as Active / In Production and is suitable for new designs and ongoing manufacturing requirements. |
| Product Group | Accelerometer |
| MOQ | 1500 pcs |
| SPQ | 1500 pcs |
| Figure/Case | LGA-14 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
ADXL343BCCZ-RL7
