DMG2305UX-7

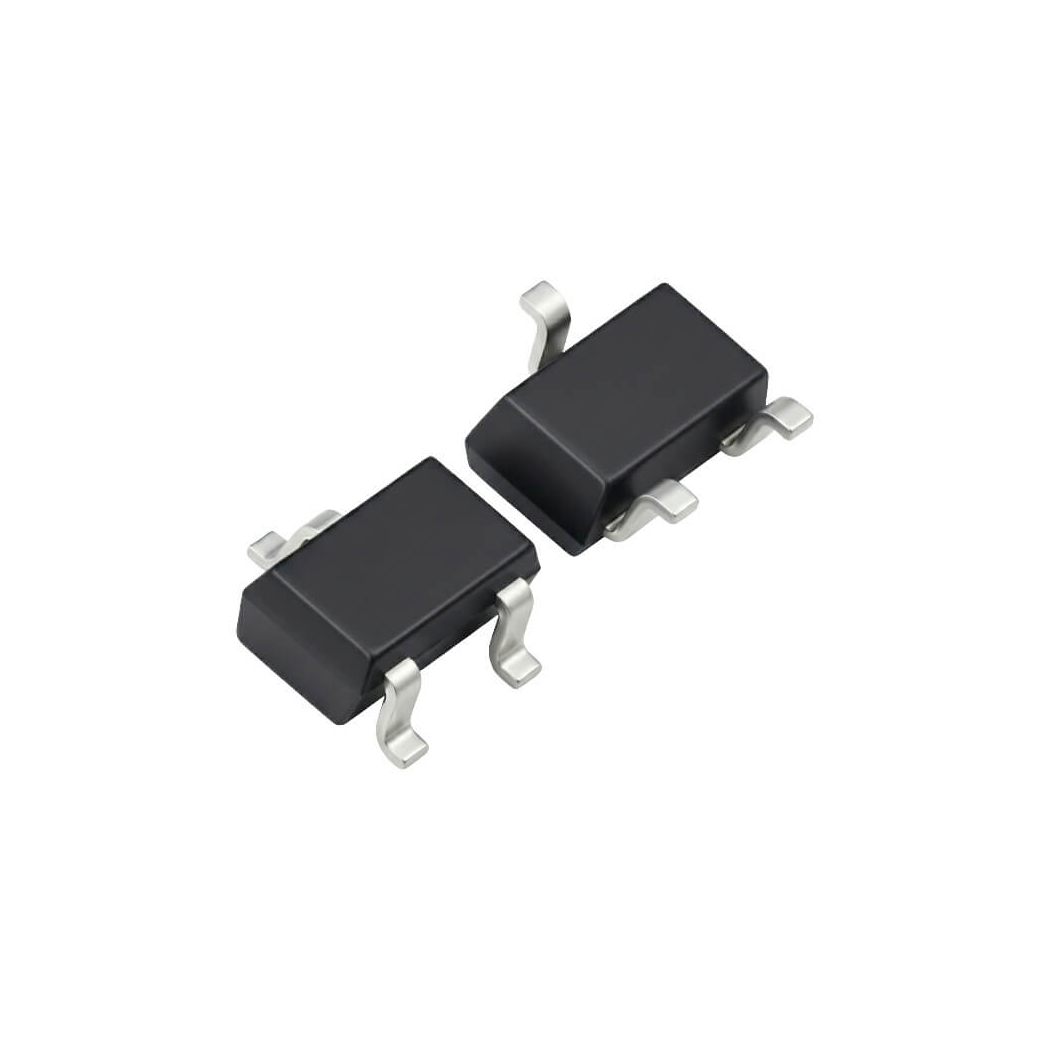

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | DMG2305UX-7 |
|---|---|
| Manufacturer |
 Diodes Incorporated
|
| Description | The DMG2305UX-7 is a high-performance P-channel enhancement mode MOSFET from Diodes Incorporated, designed for efficient power switching and power management applications. Combining low on-resistance with fast switching characteristics, it provides an excellent solution for compact, high-efficiency electronic designs. This device features a maximum drain-source voltage of -20V and supports continuous drain currents up to -4.2A, making it suitable for a wide range of low-voltage power control applications. Its optimized silicon design minimizes conduction losses while maintaining reliable switching performance. The DMG2305UX-7 offers an exceptionally low RDS(ON) of 52mΩ at VGS = -4.5V, helping improve system efficiency and reduce heat generation during operation. Low input capacitance and optimized gate charge characteristics contribute to fast switching response and reduced switching losses. Designed for modern low-voltage systems, the device supports gate drive voltages as low as 1.8V, enabling direct interface with battery-powered electronics, microcontrollers, and portable applications. The low gate threshold voltage further enhances flexibility in power management circuits. With a maximum power dissipation of 1.4W and an operating junction temperature range of -55°C to +150°C, the MOSFET delivers dependable operation across a broad range of environmental conditions. Its robust construction ensures long-term reliability in demanding applications. The compact SOT-23 package allows high-density PCB layouts while minimizing board space requirements. This makes the DMG2305UX-7 particularly attractive for portable electronics, compact industrial equipment, and space-constrained power designs. Engineered to provide low leakage current, fast switching speed, and efficient power handling, the device is well suited for both switching and load management functions in modern electronic systems. The DMG2305UX-7 is widely used in DC-DC converters, battery-powered devices, load switching circuits, power management modules, backlighting systems, portable electronics, industrial control equipment, motor control circuits, consumer electronics, and high-efficiency power distribution applications. |
| Product Group | Transistor |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-23-3 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
