ADXL313WACPZ-RL

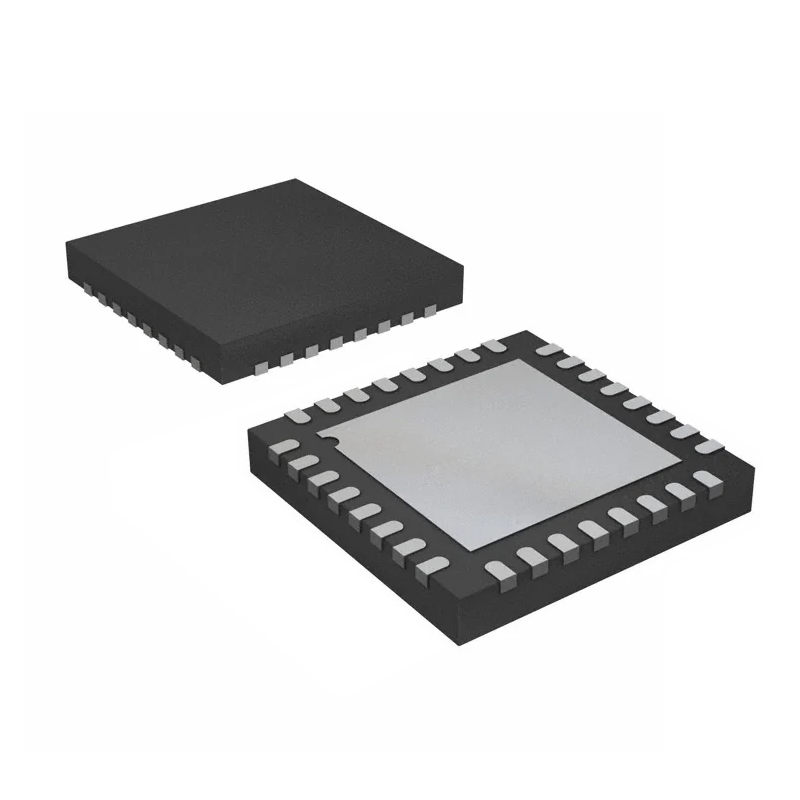

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADXL313WACPZ-RL |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADXL313WACPZ is an automotive-grade, ultra-low-power 3-axis digital MEMS accelerometer manufactured by Analog Devices (ADI). Designed for precise low-g acceleration measurement, it provides high-resolution motion and inclination data for automotive electronics, embedded control systems and vehicle monitoring applications. The device supports four selectable full-scale acceleration ranges: ±0.5g, ±1g, ±2g and ±4g. It offers user-selectable measurement resolution, including 10-bit fixed-resolution mode and full-resolution mode with 1024 LSB/g sensitivity, providing up to 13-bit resolution at the ±4g range. The ADXL313 features low-noise performance, with a typical noise density of 150µg/√Hz on the X and Y axes. Its high sensitivity makes it suitable for precision inclination measurement, vehicle tilt detection and monitoring subtle changes in orientation. Integrated functions include activity and inactivity detection, programmable motion thresholds, configurable interrupts and a 32-level FIFO buffer. These features reduce host processor activity and support efficient motion-based system operation. For communication, the accelerometer provides I2C and 3-wire or 4-wire SPI digital interfaces, enabling integration with automotive microcontrollers and embedded processors. The ADXL313 operates from a 2.0V to 3.6V supply voltage and supports low-power operation, consuming as little as 30µA in measurement mode under specified conditions. Standby current can be as low as 0.1µA. The device is supplied in a 32-lead LFCSP surface-mount package measuring 5 × 5mm, with an exposed pad and manufacturer package code CP-32-17. It supports an extended operating temperature range of -40°C to +105°C and is qualified for automotive applications. Typical applications include automotive alarm systems, hill start aid systems, electronic parking brakes, vehicle data recorders, automotive security electronics and precision inclination monitoring. Packaging: The ADXL313WACPZ-RL is supplied on a 4,000-piece manufacturer reel, while ADXL313WACPZ-RL7 is supplied on a 1,000-piece reel. Product Lifecycle: The ADXL313 automotive-grade family is in production and recommended for new designs by Analog Devices. |
| Product Group | Accelerometer |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | 32-LFCSP |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
