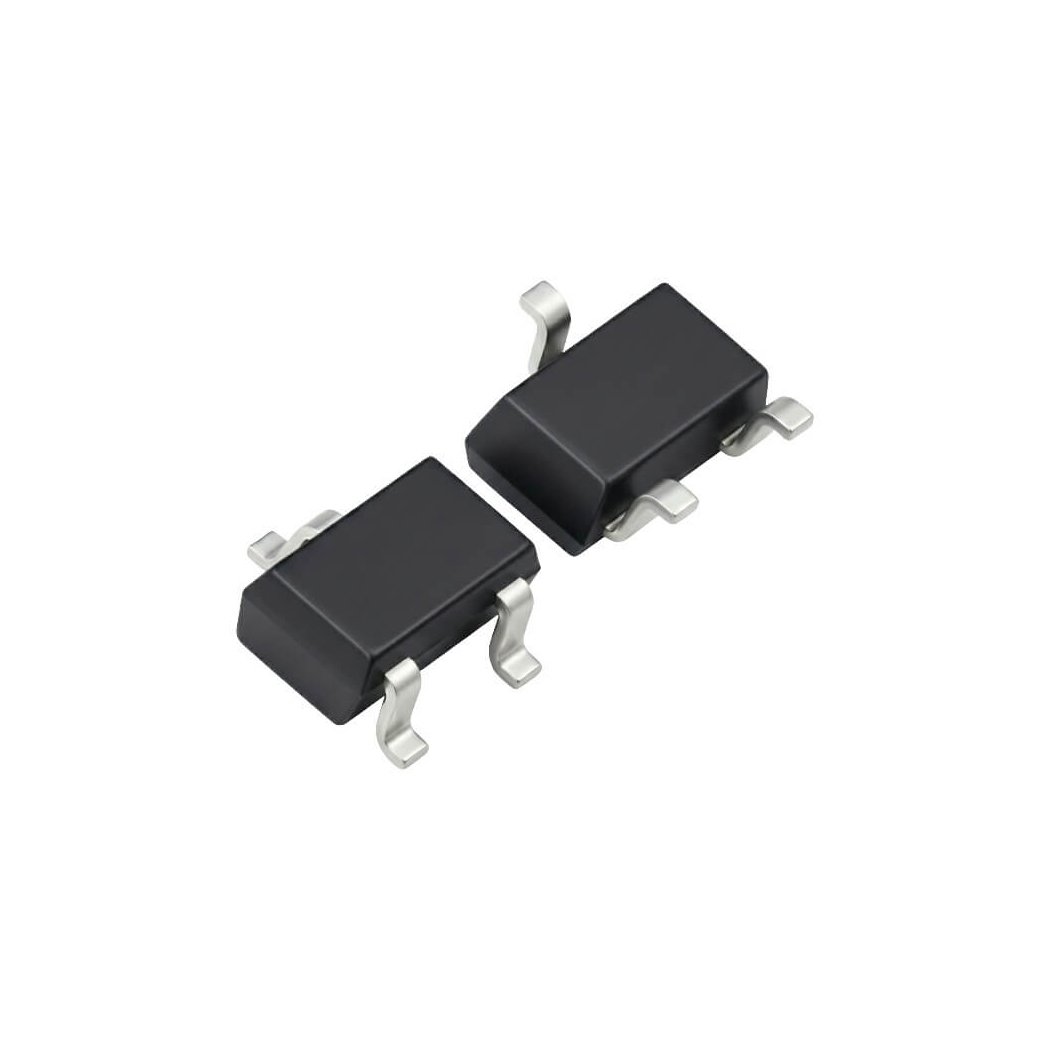

IRLML6344TRPBF
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | IRLML6344TRPBF |
|---|---|
| Manufacturer |
 Infineon
|
| Description | The IRLML6344TRPBF is a high-efficiency N-channel power MOSFET from Infineon Technologies, developed using advanced HEXFET® technology to provide excellent switching performance and low conduction losses in compact electronic designs. Its logic-level gate characteristics make it ideal for direct control from low-voltage digital circuits and microcontrollers. This device features a maximum drain-source voltage of 30V and supports continuous drain currents up to 5A, providing an efficient solution for power switching, load control, and power management applications. Its optimized silicon structure delivers outstanding performance while maintaining a compact footprint. The IRLML6344TRPBF offers an ultra-low RDS(ON) of 29mΩ at VGS = 4.5V and 37mΩ at VGS = 2.5V, helping minimize power dissipation and improve overall system efficiency. This low resistance characteristic makes it particularly suitable for battery-powered and energy-sensitive applications. Designed as a logic-level MOSFET, the device can be fully enhanced with low gate drive voltages, enabling direct interfacing with modern 3.3V and 5V control systems. The low gate threshold voltage and optimized gate charge contribute to fast switching operation and reduced switching losses. The MOSFET supports a maximum power dissipation of 1.3W and operates across a wide junction temperature range of -55°C to +150°C, ensuring reliable performance in industrial, consumer, and portable electronic applications. Packaged in a compact SOT-23 (Micro3™) package, the IRLML6344TRPBF enables high-density PCB layouts while reducing board space requirements. Its small footprint and efficient thermal characteristics make it an excellent choice for space-constrained designs. The device is optimized for load switching, system power control, DC-DC converters, battery management circuits, power distribution networks, portable electronics, and embedded power applications, where low on-resistance and efficient switching are critical requirements. The IRLML6344TRPBF is widely used in battery-powered devices, mobile electronics, industrial controllers, IoT equipment, portable instruments, DC-DC power converters, load switch circuits, power management modules, communication devices, and embedded system power control applications. |
| Product Group | Transistor |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-23 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
