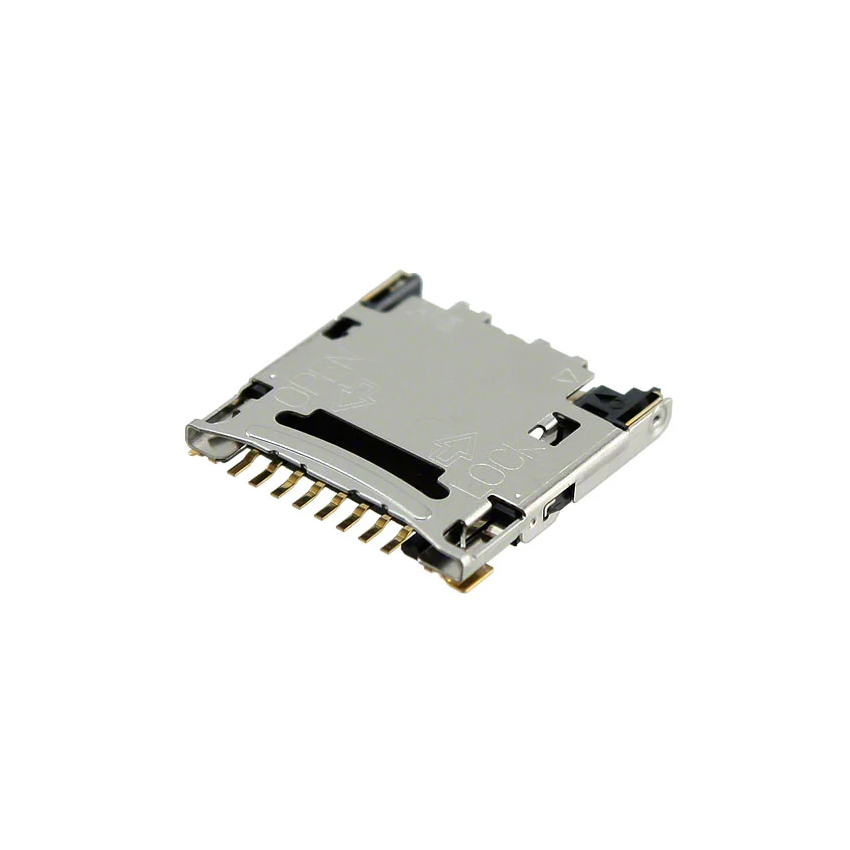

DM3CS-SF
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | DM3CS-SF |
|---|---|
| Manufacturer |
|
| Description | The DM3CS-SF is a compact and reliable microSD card connector developed by Hirose Electric, designed for embedded systems requiring secure and space-efficient removable storage interfaces. It features a surface-mount right-angle design, making it suitable for high-density PCB layouts and compact electronic devices. This connector supports microSD card formats with 8 electrical contacts (10 positions including detection pins), enabling stable data transmission and reliable card interfacing in digital systems. It utilizes a hinged push-pull insertion mechanism, providing secure card retention and easy user operation. The DM3CS-SF is built with gold-plated contacts, ensuring excellent conductivity and long-term reliability, while its structure supports up to 5000 insertion/removal cycles, making it suitable for repeated use in industrial and consumer applications. Designed with robustness in mind, the connector includes features such as card detection switch, reverse insertion protection, and effective shielding, enhancing system safety and signal integrity in noisy environments. The device operates with a typical current rating of 0.5A and maintains a low profile height of approximately 1.83mm above PCB, allowing integration into ultra-compact designs such as portable electronics and IoT devices. Its SMT mounting structure with accessible terminals simplifies assembly and inspection during manufacturing, while maintaining strong mechanical durability and electrical performance. The DM3CS-SF is widely used in embedded systems, industrial controllers, portable devices, data logging systems, consumer electronics, and IoT applications, where compact, reliable, and high-cycle microSD card connectivity is required. |
| Product Group | Connector |
| MOQ | 1300 pcs |
| SPQ | 1300 pcs |
| Figure/Case | SMDPP |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
