W25Q16JVSSIQ

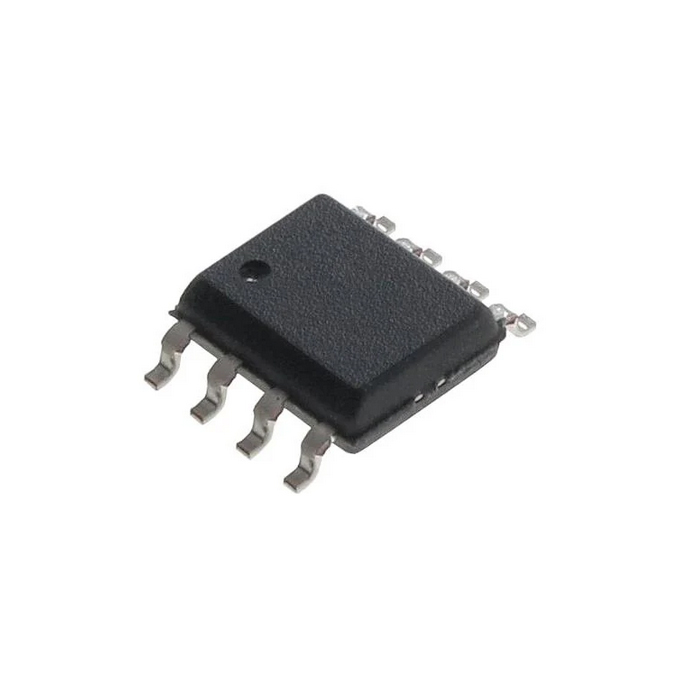

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | W25Q16JVSSIQ |
|---|---|
| Manufacturer |
 Winbond
|
| Description | The W25Q16JVSSIQ is a high-performance 16Mbit serial NOR Flash memory developed by Winbond, designed for firmware storage, embedded code execution, and non-volatile data retention applications. It utilizes a high-speed SPI and Quad SPI (QSPI) serial interface, enabling fast communication with microcontrollers, DSPs, FPGAs, and embedded processors. The device provides a memory organization of 2M × 8-bit and supports high-speed clock frequencies up to approximately 133 MHz, with enhanced throughput available in Quad SPI mode for high-performance embedded applications and execute-in-place (XiP) functionality. The W25Q16JVSSIQ operates from a supply voltage range of approximately 2.7V to 3.6V, making it suitable for low-power and portable electronic systems. It also includes low standby current and deep power-down operating modes to minimize energy consumption in battery-powered applications. The Flash memory supports flexible erase and programming operations including 4KB sector erase, 32KB/64KB block erase, chip erase, and page program functions, enabling efficient firmware management and secure field updates. Integrated internal control logic simplifies external system implementation and improves overall reliability. Advanced features such as JEDEC standard identification, hardware/software write protection, security registers, suspend/resume operations, and serial flash discoverable parameters (SFDP) improve system compatibility, operational flexibility, and data security. The device also supports execute-in-place operation, enabling processors to directly execute firmware from external Flash memory without copying the code into RAM, reducing memory requirements and system cost. Packaged in a compact 8-pin SOIC surface-mount package, the W25Q16JVSSIQ is optimized for automated PCB assembly and compact embedded system layouts. The W25Q16JVSSIQ is widely used in industrial automation, communication devices, IoT systems, consumer electronics, embedded controllers, BIOS storage, and FPGA configuration applications, where reliable high-speed serial non-volatile memory is required. |
| Product Group | FLASH |
| MOQ | 2080 pcs |
| SPQ | 2080 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
W25Q16JVSSIQ
