ZXTC2063E6TA

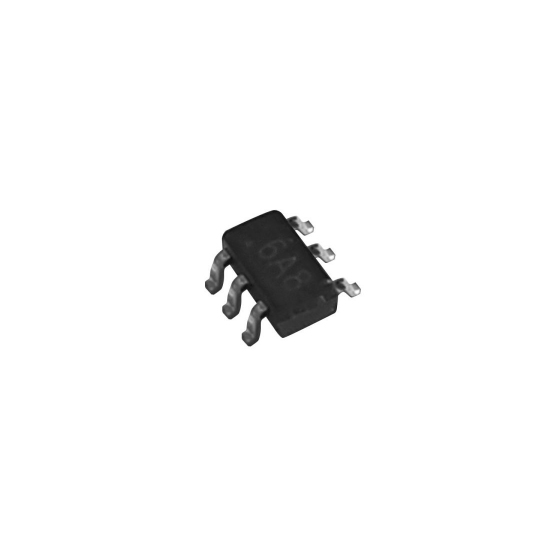

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ZXTC2063E6TA |
|---|---|
| Manufacturer |
 Diodes Incorporated
|
| Description | The ZXTC2063E6TA is a compact and high-performance dual bipolar transistor array (NPN + PNP) developed by Diodes Incorporated, designed for switching, amplification, and driver applications in space-constrained electronic designs. It integrates one NPN and one PNP transistor in a single package, enabling complementary circuit configurations. The device supports a collector-emitter voltage of up to 40V and provides high current capability with collector currents up to 3.5A (NPN) and 3A (PNP), making it suitable for medium-power applications. It features a low saturation voltage (VCE(sat)), which helps reduce power loss and improve efficiency in switching applications. The transistor array also offers high DC current gain (hFE), ensuring effective signal amplification and drive capability. With a fast transition frequency (up to ~190MHz for NPN and ~270MHz for PNP), the ZXTC2063E6TA is suitable for high-speed switching and signal processing circuits. The device is housed in a compact SOT-26 surface-mount package, enabling high-density PCB layouts and efficient thermal performance. It operates across a wide temperature range of -55°C to +150°C, making it suitable for demanding industrial environments. The ZXTC2063E6TA is widely used in MOSFET and IGBT gate driving, motor control circuits, DC-DC converters, and general-purpose switching applications, where compact size and high performance are required. |
| Product Group | Transistor |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-26 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
ZXTC2063E6TA
