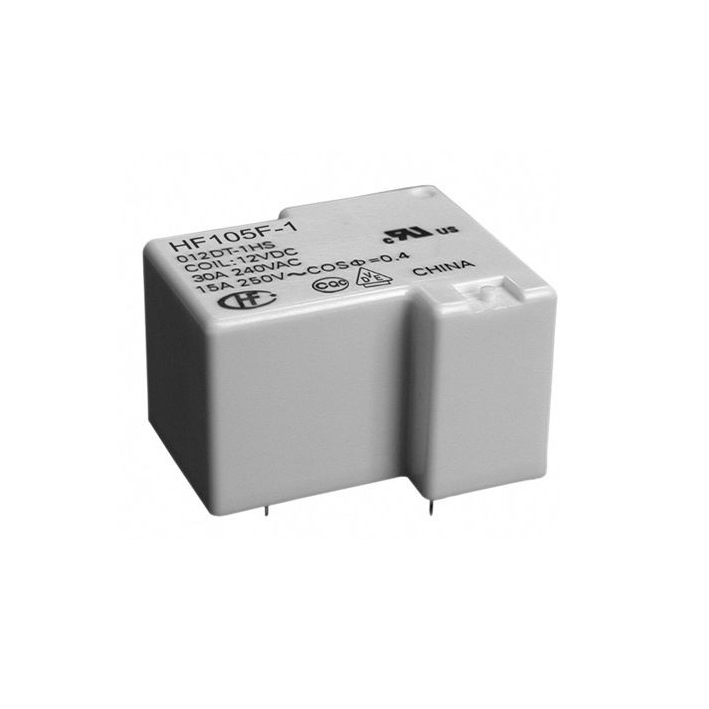

HF105F-1-024D-1HS
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | HF105F-1-024D-1HS |
|---|---|
| Manufacturer |
 Hongfa
|
| Description | The HF105F-1-024D-1HS is a compact and durable miniature electromagnetic power relay developed by Hongfa, designed for reliable switching of high-current loads in industrial, consumer, and embedded electronic systems. It features a single-pole double-throw (SPDT) contact configuration, enabling flexible switching between normally open and normally closed contacts. The relay operates with a 24V DC coil voltage and provides stable switching performance with low coil power consumption, making it suitable for automation and control applications. Its compact structure allows efficient PCB integration while maintaining strong electrical isolation between coil and contacts. The HF105F-1-024D-1HS supports switching currents up to approximately 10A depending on load conditions, enabling reliable control of motors, lamps, power supplies, solenoids, and household appliances. Designed for long operational life, the relay offers high mechanical endurance and reliable contact performance under repetitive switching conditions. It also provides strong dielectric strength and insulation resistance, helping improve system safety and reliability in industrial environments. The device features a sealed through-hole PCB mounting structure, improving resistance against dust and flux contamination during automated soldering processes. Its compact footprint makes it suitable for high-density PCB layouts and embedded control systems. The relay supports operation across a wide temperature range and is designed to maintain stable performance under varying environmental conditions. The HF105F-1-024D-1HS is widely used in industrial automation, household appliances, smart home systems, HVAC controllers, power management modules, automotive electronics, and embedded switching applications, where dependable high-current relay control is required. |
| Product Group | Relay |
| MOQ | 500 pcs |
| SPQ | 100 pcs |
| Figure/Case | RELAY(TH) |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
HF105F-1-024D-1HS
