0787270001-SIM

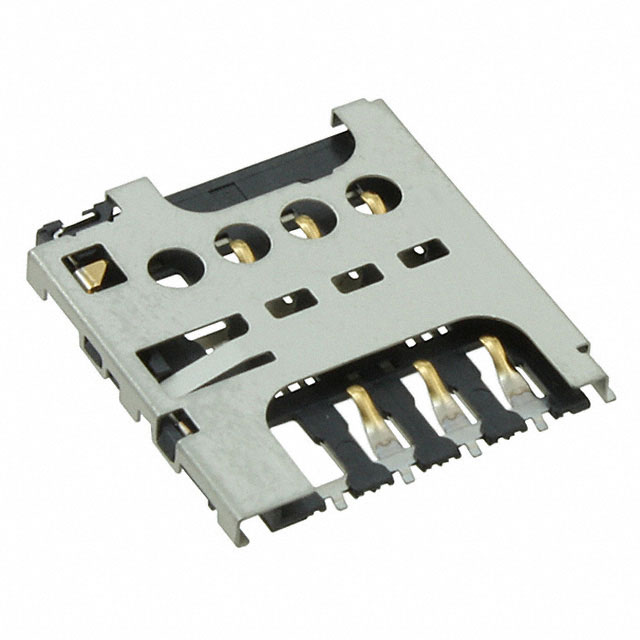

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | 0787270001-SIM |
|---|---|
| Manufacturer |
 MOLEX
|
| Description | The 0787270001 is a compact micro-SIM card socket connector from Molex, designed to provide reliable SIM card connectivity for wireless communication devices, embedded systems, and IoT applications. Its low-profile construction and robust contact design make it an excellent solution for products requiring secure mobile network access. This connector features a push-pull card insertion mechanism that allows easy SIM card installation and removal without the need for an ejector system. The design ensures stable card retention while simplifying user interaction and device assembly. The 0787270001 supports standard micro-SIM card interfaces and incorporates 6 signal contacts plus an integrated detect switch. The detect switch enables system-level card presence monitoring, improving device functionality and communication reliability. With an ultra-slim profile of only 1.40mm height above the PCB, this connector is ideal for space-constrained electronic products where compact design is critical. Its low-profile construction helps reduce overall device thickness while maintaining mechanical durability. Designed for surface-mount assembly and right-angle mounting, the connector supports automated manufacturing processes and efficient PCB layouts. Gold-plated contact surfaces provide excellent electrical conductivity, low contact resistance, and long-term reliability under repeated insertion cycles. The connector operates across a wide -40°C to +85°C temperature range and supports up to 500 mating cycles, making it suitable for demanding industrial and commercial applications. Its stainless-steel shell construction enhances mechanical strength and protects the SIM card interface from damage. Supporting a maximum contact current of 0.5A and operating voltages up to 10VDC, the 0787270001 delivers dependable electrical performance for cellular communication modules and embedded connectivity systems. The 0787270001 is widely used in IoT devices, GSM and LTE modules, telematics systems, smart meters, industrial gateways, wireless communication equipment, asset tracking devices, automotive communication modules, handheld terminals, security systems, and embedded cellular applications requiring reliable micro-SIM card connectivity. |
| Product Group | Connector |
| MOQ | 1200 pcs |
| SPQ | 1200 pcs |
| Figure/Case | SMT-CARDH |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
