All Products Temperature Sensor

TMP119AIYBGR / The TMP119AIYBGR is an ultra-precise <strong>digital temperature sensor</strong> developed by <strong>Texas Instruments</strong>, engineered for applications requiring exceptional measurement accuracy and stability. It delivers a high-resolution <strong>16-bit temperature output</strong> with a fine resolution of approximately <strong>0.0078°C per LSB</strong>, enabling highly accurate thermal monitoring in sensitive systems. <br><br>This device provides industry-leading accuracy of up to <strong>±0.03°C (typical)</strong> and <strong>±0.08°C (maximum) in the 0°C to 45°C range</strong>, making it suitable for medical-grade and precision instrumentation applications. It maintains excellent accuracy across a wide operating range from <strong>-55°C to +150°C</strong>. <br><br>The TMP119AIYBGR operates with a flexible <strong>supply voltage range of 1.7V to 5.5V</strong> and communicates through a <strong>standard I2C and SMBus-compatible interface</strong>, allowing seamless integration with microcontrollers and digital systems. It also supports multiple devices on a single bus for scalable designs. <br><br>Designed for ultra-low power operation, the sensor consumes approximately <strong>3.5µA during measurement (1Hz conversion)</strong> and as low as <strong>150nA in shutdown mode</strong>, making it ideal for battery-powered and energy-efficient applications. <br><br>The device includes advanced features such as <strong>programmable alert limits, selectable averaging, digital offset correction, and integrated EEPROM (48-bit)</strong>, providing flexibility and system-level calibration capability. It is also suitable as a <strong>replacement for RTD sensors (PT100/PT1000)</strong>, simplifying design while maintaining high accuracy. <br><br>Encapsulated in a compact <strong>6-ball DSBGA surface-mount package</strong>, the TMP119AIYBGR is optimized for space-constrained and high-density PCB designs. <br><br>The <strong>TMP119AIYBGR</strong> is widely used in <strong>medical devices, precision thermometers, industrial monitoring, HVAC systems, IoT sensors, and environmental measurement applications</strong>, where ultra-high accuracy and low power consumption are critical.
TMP119AIYBGR

Description: The TMP119AIYBGR is an ultra-precise digital temperature sensor developed ...
Package: T&R | MOQ: 3000 | MPQ: 3000

TMP117AIDRVR / The TMP117AIDRVR is a highly precise <strong>digital temperature sensor</strong> developed by <strong>Texas Instruments</strong>, engineered for applications requiring exceptional accuracy and low power consumption. It delivers a <strong>16-bit temperature measurement</strong> with an ultra-fine resolution of approximately <strong>0.0078°C</strong>, enabling highly accurate thermal monitoring. <br><br>This sensor provides outstanding accuracy of up to <strong>±0.1°C (maximum) in the -20°C to 50°C range</strong> without requiring calibration, making it suitable for precision-critical applications such as medical and industrial systems. <br><br>The TMP117AIDRVR operates over a wide <strong>temperature measurement range of -55°C to +150°C</strong> and supports a <strong>supply voltage range from 1.8V to 5.5V</strong>, ensuring compatibility with a broad range of low-power embedded designs. <br><br>It features a standard <strong>I2C and SMBus-compatible interface</strong>, allowing easy integration with microcontrollers and processors. The device also supports <strong>programmable alert functions and multiple selectable addresses</strong>, enabling efficient system monitoring and multi-device configurations on a single bus. <br><br>Designed for energy efficiency, the sensor consumes as little as <strong>3.5µA during measurement</strong> and offers an ultra-low <strong>shutdown current of approximately 150nA</strong>, making it ideal for battery-powered and portable applications. <br><br>Encapsulated in a compact <strong>6-pin WSON surface-mount package (2mm × 2mm)</strong>, the TMP117AIDRVR is optimized for space-constrained PCB designs while maintaining high thermal accuracy and stability. <br><br>The <strong>TMP117AIDRVR</strong> is widely used in <strong>medical devices, industrial monitoring systems, HVAC systems, IoT applications, and precision temperature measurement equipment</strong>, where reliable and high-accuracy temperature sensing is essential.
TMP117AIDRVR

Description: The TMP117AIDRVR is a highly precise digital temperature sensor developed ...
Package: T&R | MOQ: 3000 | MPQ: 3000

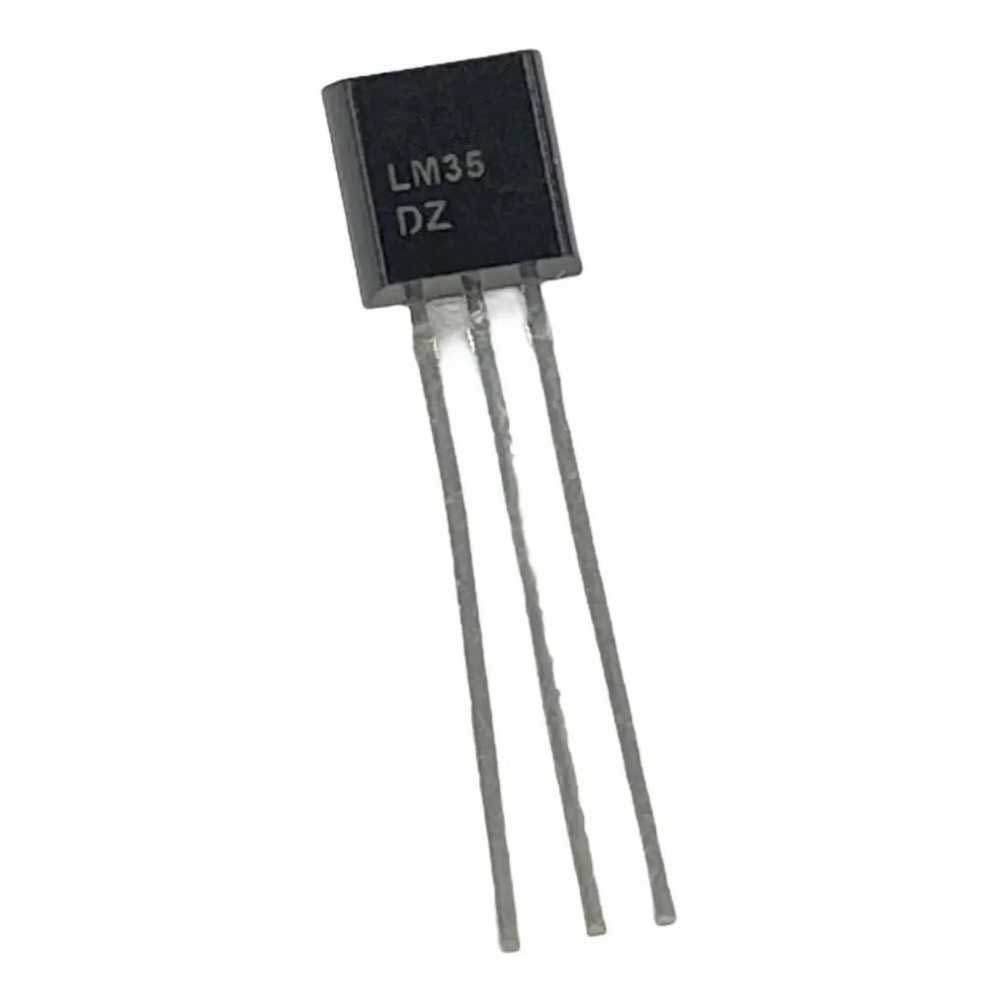

LM35DZ / The LM35DZ is a precision analog temperature sensor with an output voltage linearly proportional to temperature in degrees Celsius. It operates with a supply voltage range of 4 V to 30 V and provides a calibrated output of 10 mV/°C, eliminating the need for external calibration. The device measures temperatures from 0°C to +100°C (typical full range -55°C to +150°C for other variants) with an accuracy of approximately ±0.5°C at room temperature. It features low self-heating (less than 0.1°C in still air) and low output impedance, making it suitable for direct interfacing with ADC inputs. The LM35DZ is widely used in temperature measurement, environmental monitoring, HVAC systems, industrial control, and embedded applications requiring accurate analog temperature sensing.
LM35DZ

Description: The LM35DZ is a precision analog temperature sensor with an output voltage linearly propor ...
Package: TUBE | MOQ: 2000 | MPQ: 50

DS18S20+ / DS18S20+ Temperature Sensor Digital -55°C ~ 125°C, Unique 1-Wire® Interface Requires Only One Port Pin for Communication
DS18S20+

Description: DS18S20+ Temperature Sensor Digital -55°C ~ 125°C, Unique 1-Wire® Interface Requires O ...
Package: BULK | MOQ: 2000 | MPQ: 2000

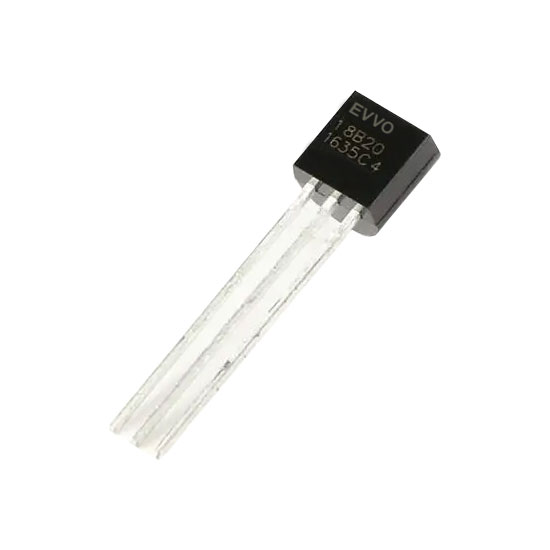

DS18B20-EV / The DS18B20-EV is a reliable <strong>digital temperature sensor</strong> developed by <strong>EVVO</strong>, designed for accurate temperature measurement in embedded and industrial applications. It utilizes a <strong>1-Wire communication interface</strong>, allowing multiple sensors to operate on a single data line, simplifying system wiring and reducing complexity. <br><br>The device provides <strong>programmable resolution from 9-bit to 12-bit</strong>, enabling precise temperature readings with high accuracy. It supports a wide measurement range of approximately <strong>-55°C to +125°C</strong>, making it suitable for various environmental and industrial monitoring applications. <br><br>The DS18B20-EV operates with a supply voltage of <strong>2.5V to 5.5V</strong> and supports <strong>parasite power mode</strong>, allowing it to be powered directly from the data line without requiring an external power supply, which is ideal for remote sensing setups. <br><br>Each sensor includes a <strong>unique 64-bit serial code</strong>, enabling multiple devices to be connected on the same bus without address conflicts, making it ideal for distributed temperature sensing systems. <br><br>The device integrates <strong>temperature conversion, alarm functionality, and non-volatile memory</strong>, reducing the need for external components and improving overall system efficiency. <br><br>Packaged in a standard <strong>TO-92 through-hole form factor</strong>, the DS18B20-EV is easy to use in both prototyping and production environments. It is compatible with standard PCB assembly processes and widely used in development platforms. <br><br>The <strong>DS18B20-EV</strong> is widely used in applications such as <strong>HVAC systems, industrial temperature monitoring, IoT devices, environmental sensing, home automation, and embedded control systems</strong>, where accurate, low-cost, and easy-to-integrate temperature sensing is required.
DS18B20-EV

Description: The DS18B20-EV is a reliable digital temperature sensor developed by ...
Package: BULK | MOQ: 2000 | MPQ: 2000

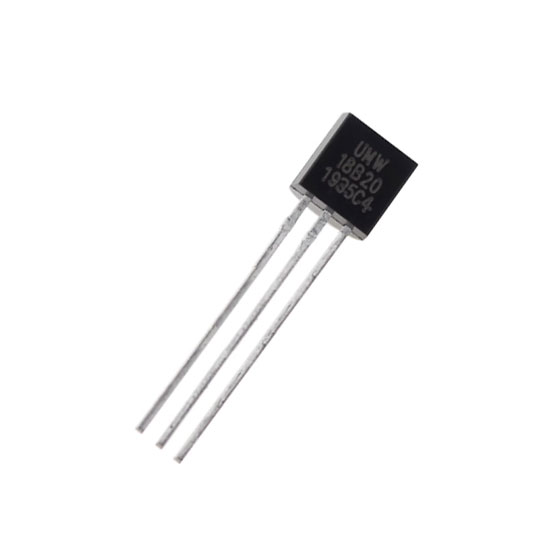

DS18B20 / The DS18B20 is a highly popular <strong>digital temperature sensor</strong> developed by <strong>Analog Devices (Maxim Integrated)</strong>, designed for accurate and reliable temperature measurement in a wide range of applications. It utilizes a <strong>1-Wire communication interface</strong>, allowing multiple devices to be connected using a single data line, significantly simplifying system wiring. <br><br>The device provides <strong>programmable resolution from 9-bit to 12-bit</strong>, delivering precise temperature readings with accuracy up to <strong>±0.5°C</strong> over a typical operating range. It supports a wide measurement range of approximately <strong>-55°C to +125°C</strong>, making it suitable for both industrial and consumer applications. <br><br>The DS18B20 operates with a supply voltage of <strong>3.0V to 5.5V</strong> and supports <strong>parasite power mode</strong>, allowing it to draw power directly from the data line when needed, which is ideal for remote sensing installations. <br><br>Each sensor contains a unique <strong>64-bit serial code</strong>, enabling multiple sensors to coexist on the same bus without address conflicts, making it ideal for distributed temperature monitoring systems. <br><br>The device integrates <strong>temperature-to-digital conversion, alarm threshold registers, and non-volatile memory</strong>, reducing the need for additional external components and simplifying system design. <br><br>Packaged in a standard <strong>TO-92 through-hole form factor</strong>, the DS18B20 is easy to integrate into both prototype and production environments. It is also widely available in sealed probe versions for use in harsh or outdoor conditions. <br><br>The <strong>DS18B20</strong> is widely used in applications such as <strong>HVAC systems, industrial monitoring, home automation, IoT devices, environmental sensing, and embedded control systems</strong>, where accurate, low-cost, and easy-to-use digital temperature sensing is required.
DS18B20

Description: The DS18B20 is a highly popular digital temperature sensor developed by ...
Package: BULK | MOQ: 2000 | MPQ: 2000

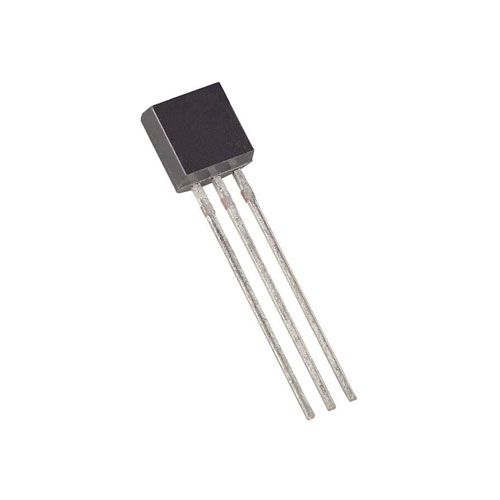

DS18B20+ / The DS18B20+ is a widely used <strong>digital temperature sensor</strong> developed by <strong>Analog Devices (Maxim Integrated)</strong>, designed for precise temperature measurement in embedded and industrial applications. It communicates via a unique <strong>1-Wire interface</strong>, allowing multiple sensors to operate on a single data line, significantly simplifying wiring and system design. <br><br>The device provides <strong>programmable resolution from 9-bit to 12-bit</strong>, delivering temperature measurements with accuracy up to <strong>±0.5°C</strong> over a typical range. It supports a wide measurement range of approximately <strong>-55°C to +125°C</strong>, making it suitable for both low and high temperature environments. <br><br>The DS18B20+ operates with a supply voltage of <strong>3.0V to 5.5V</strong> and supports <strong>parasite power mode</strong>, allowing it to be powered directly from the data line without requiring a separate power supply, which is ideal for remote sensing applications. <br><br>Each device includes a <strong>unique 64-bit serial code</strong>, enabling multiple sensors to be connected on the same bus without conflict. This makes it highly suitable for distributed temperature sensing systems. <br><br>The sensor integrates <strong>temperature-to-digital conversion, alarm functions, and non-volatile EEPROM</strong> for storing user-defined thresholds, reducing the need for external components. <br><br>Packaged in a standard <strong>TO-92 through-hole form factor</strong>, the DS18B20+ is easy to integrate into prototypes and production designs. It is also commonly available in <strong>waterproof probe versions</strong> for harsh environments and outdoor applications. <br><br>The <strong>DS18B20+</strong> is widely used in applications such as <strong>HVAC systems, industrial temperature monitoring, home automation, IoT devices, environmental sensing, and embedded control systems</strong>, where accurate, low-cost, and easy-to-use digital temperature measurement is required.
DS18B20+

Description: The DS18B20+ is a widely used digital temperature sensor developed by ...
Package: BULK | MOQ: 2000 | MPQ: 2000
