All Products Diode

TZMC3V0-GS08 / 3.0V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF
TZMC3V0-GS08

Description: 3.0V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF ...
Package: T&R | MOQ: 5000 | MPQ: 2500

TZMC2V7-GS08 / 2.7V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF
TZMC2V7-GS08

Description: 2.7V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF ...
Package: T&R | MOQ: 5000 | MPQ: 2500

TZMC2V4-GS08 / 2.4V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF
TZMC2V4-GS08

Description: 2.4V Zener Diode 500mW ±5% Surface Mount SOD-80 MiniMELF ...
Package: T&R | MOQ: 5000 | MPQ: 2500

1N4148WT-7 / Diode 80 V 125mA Surface Mount SOD-523
1N4148WT-7

Description: Diode 80 V 125mA Surface Mount SOD-523 ...
Package: T&R | MOQ: 3000 | MPQ: 3000

1N4148W-7-F / Diode 100 V 300mA Surface Mount SOD-123
1N4148W-7-F

Description: Diode 100 V 300mA Surface Mount SOD-123 ...
Package: T&R | MOQ: 3000 | MPQ: 3000

PMEG3010CEH,115 / Diode 30 V 1A Surface Mount SOD-123F
PMEG3010CEH,115

Description: Diode 30 V 1A Surface Mount SOD-123F ...
Package: T&R | MOQ: 3000 | MPQ: 3000

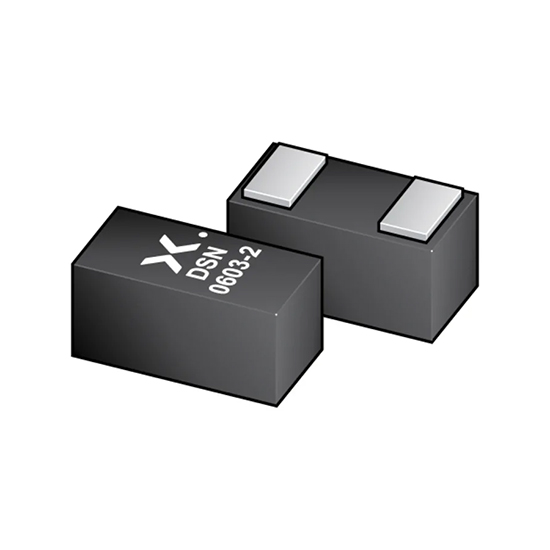

PESD5V0C1BSFYL / 6.5V (Typ) Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
PESD5V0C1BSFYL

Description: 6.5V (Typ) Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2 ...
Package: T&R | MOQ: 9000 | MPQ: 9000

PESD15VL1BA,115 / The PESD15VL1BA,115 is a low-capacitance bidirectional ESD protection diode from Nexperia, designed to protect a single signal line from electrostatic discharge (ESD) and other transients. Surface Mount TVS Diode 44V Clamp 5A (8/20µs) Ipp SOD-323
PESD15VL1BA,115

Description: The PESD15VL1BA,115 is a low-capacitance bidirectional ESD protection diode from Nexperia, ...
Package: T&R | MOQ: 3000 | MPQ: 3000

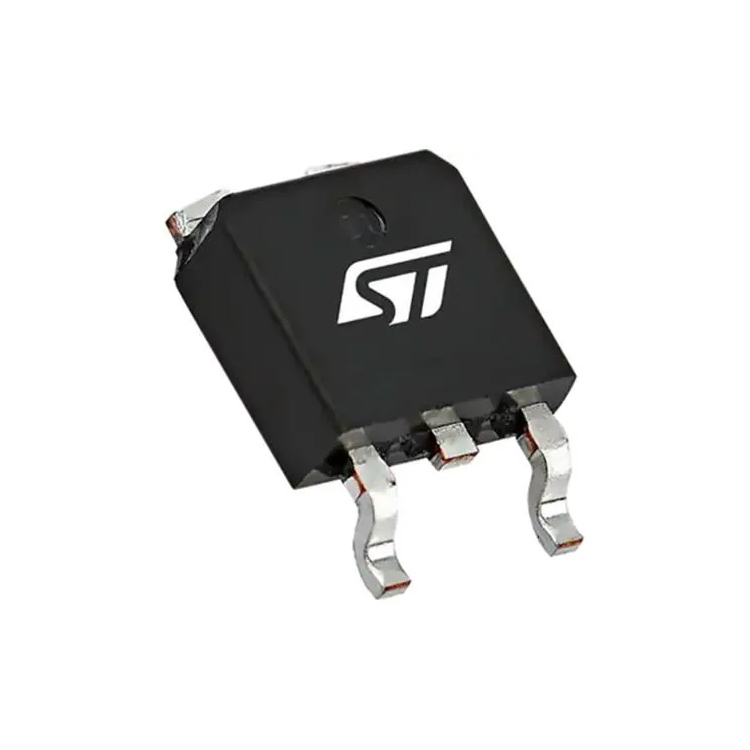

STPS20H100CG-TR / The STPS20H100CG-TR is a dual center-tap Schottky rectifier designed by STMicroelectronics, optimized for high-frequency miniature switch-mode power supplies and on-board DC-DC converters. Diode Array 1 Pair Common Cathode 100 V 10A Surface Mount TO-263-3, D2PAK.
STPS20H100CG-TR

Description: The STPS20H100CG-TR is a dual center-tap Schottky rectifier designed by STMicroelectronics ...
Package: T&R | MOQ: 1000 | MPQ: 1000

MUR820G / Diode 200 V 8A Through Hole TO-220-2, This diode is suitable for applications such as switching power supplies, power switching circuits, and general-purpose rectification. Its ultrafast recovery time and low forward voltage drop contribute to high efficiency in power conversion applications.
MUR820G

Description: Diode 200 V 8A Through Hole TO-220-2, This diode is suitable for applications such as swit ...
Package: TUBE | MOQ: 2500 | MPQ: 50

MURF1560G / Diode 600 V 15A Through Hole TO-220FP, Fast Recovery =< 500ns, > 200mA (Io), 60 ns, 10 µA @ 600 V, 15A
MURF1560G

Description: Diode 600 V 15A Through Hole TO-220FP, Fast Recovery =< 500ns, > 200mA (Io), 60 ns, 10 µA ...
Package: TUBE | MOQ: 1000 | MPQ: 50

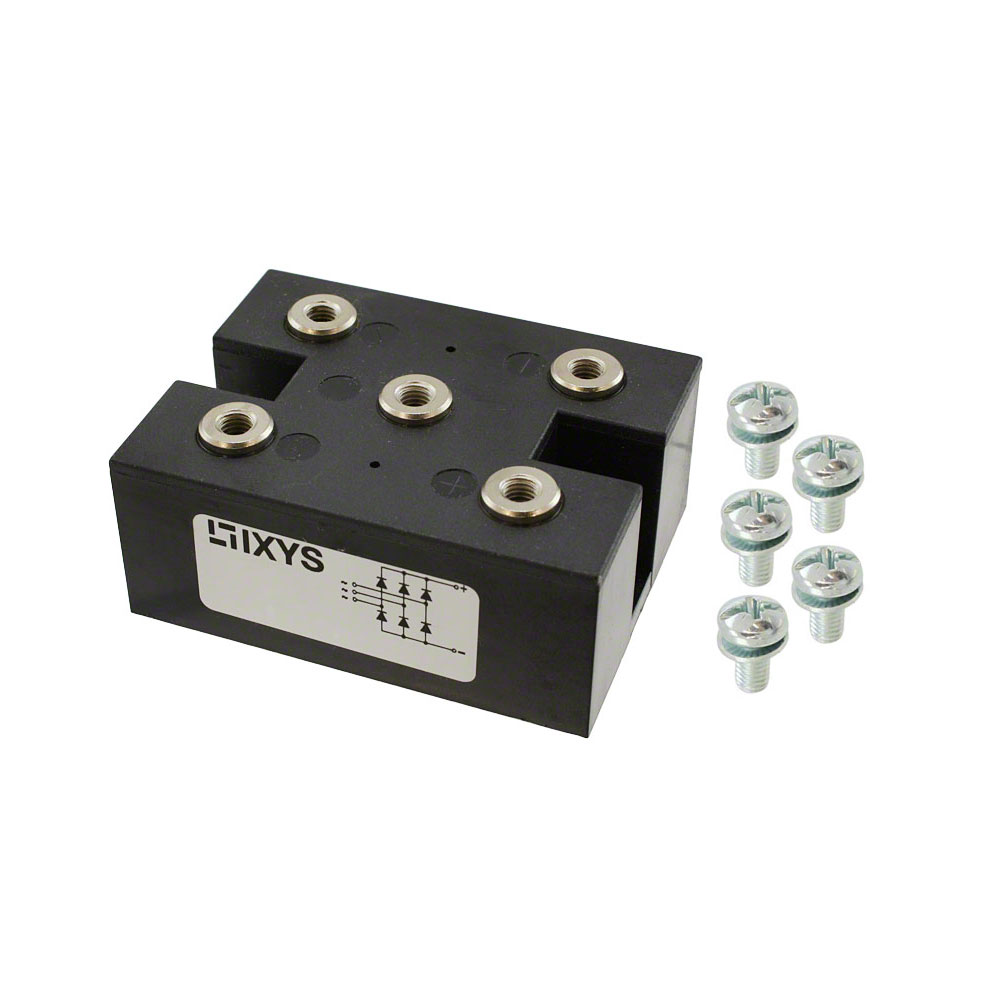

VUO125-16NO7 / The VUO125-16NO7 is a high-power three-phase bridge rectifier module designed for industrial AC-DC conversion applications. It features a peak reverse voltage (VRRM) of 1600V and an average rectified current of approximately 150A (up to 166A depending on conditions), enabling high-power operation in demanding systems . The device offers low forward voltage drop typically around 1.07–1.3V, reducing conduction losses and improving efficiency . It supports high surge current capability up to approximately 1.8kA, ensuring robustness under transient conditions . The module includes isolated baseplate construction with isolation voltage around 3000V, enhancing electrical safety . It operates over a wide junction temperature range of -40°C to +150°C and features low reverse leakage current around 200–300 µA . The PWS-C package with screw terminals allows secure mounting and efficient thermal management. This rectifier is widely used in motor drives, industrial power supplies, PWM inverter front-end rectification, and high-power DC supply systems.
VUO125-16NO7

Description: The VUO125-16NO7 is a high-power three-phase bridge rectifier module designed for industri ...
Package: BULK | MOQ: 100 | MPQ: 100

STTH8L06FP / The STTH8L06FP is an ultrafast recovery high-voltage rectifier diode based on ST Turbo2 technology, designed for high-efficiency switching applications such as SMPS and power factor correction circuits. It features a repetitive peak reverse voltage (VRRM) of 600V and an average forward current (IF(AV)) of 8A, with a forward voltage drop typically around 0.85V (1.3V max at 8A), ensuring low conduction losses . The device offers fast reverse recovery time of approximately 75 ns (max 105 ns), reducing switching losses and improving efficiency in high-frequency operation . It supports high surge current capability up to 120A and low reverse leakage current typically around 8 µA at rated voltage . The diode operates over a wide junction temperature range of -40°C to +175°C and features low thermal resistance with fully insulated TO-220FP package for enhanced safety and thermal performance . It is widely used in boost converters, freewheeling applications, inverters, and industrial power supplies requiring fast switching and high reliability.
STTH8L06FP

Description: The STTH8L06FP is an ultrafast recovery high-voltage rectifier diode based on ST Turbo2 te ...
Package: TUBE | MOQ: 1000 | MPQ: 50

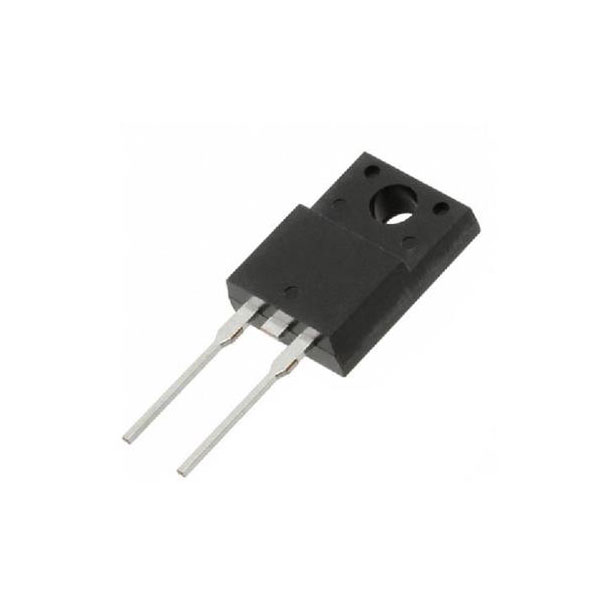

MURF860G / The MURF860G is an ultrafast recovery rectifier diode designed for high-efficiency switching power applications. It features a repetitive peak reverse voltage of 600V and an average forward current of 8A, making it suitable for medium-power rectification tasks. The device offers low forward voltage drop typically around 2.2V at 8A and fast reverse recovery time of approximately 50 ns, enabling reduced switching losses and improved efficiency in high-frequency circuits . It provides low reverse leakage current around 5 µA at rated voltage and high surge current capability, supporting robust operation in demanding environments . The diode operates over a wide junction temperature range of -55°C to +150°C and features glass-passivated construction for enhanced reliability. Packaged in a TO-220 full-pack isolated form, it offers good thermal performance and electrical isolation, making it ideal for SMPS, freewheeling, snubber circuits, inverters, and industrial power conversion applications.
MURF860G

Description: The MURF860G is an ultrafast recovery rectifier diode designed for high-efficiency switchi ...
Package: TUBE | MOQ: 1000 | MPQ: 50
