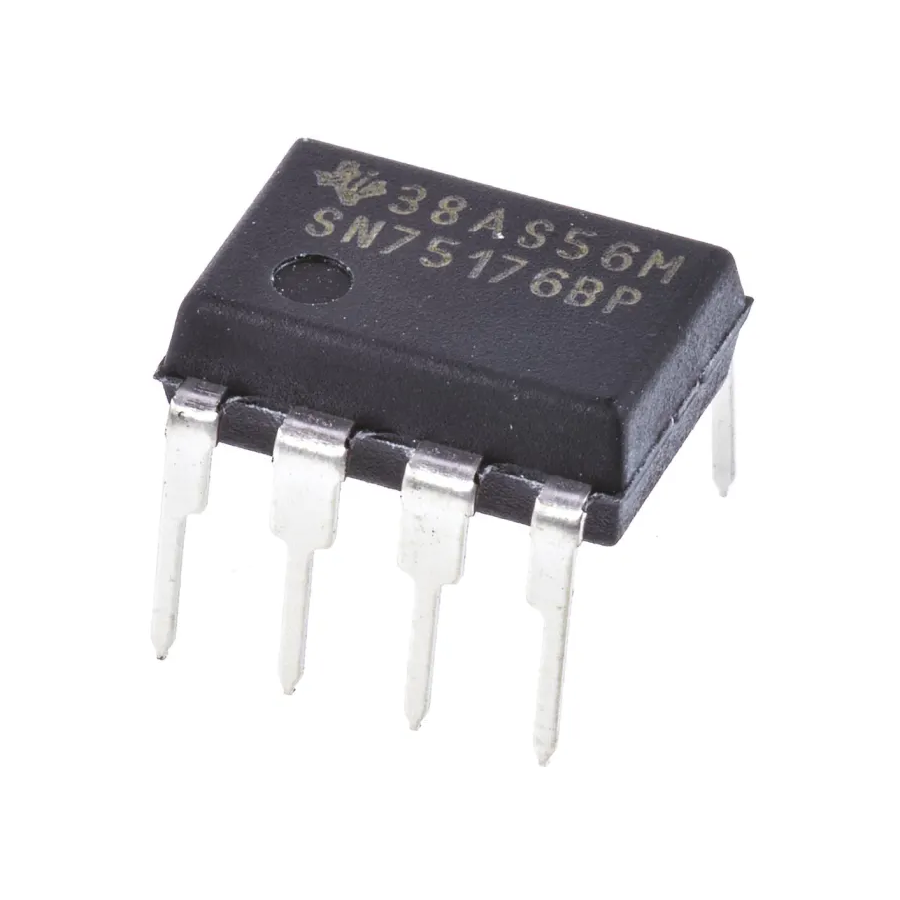

SN75176BP
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | SN75176BP |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | The SN75176BP is a reliable differential bus transceiver from Texas Instruments, specifically designed for bidirectional data communication over RS-485 and RS-422 networks. It integrates both a differential line driver and a differential receiver into a single compact device, providing an efficient solution for industrial and long-distance communication systems. This device supports half-duplex communication and is optimized for multipoint bus architectures where multiple nodes share the same communication line. Its balanced differential signaling helps improve noise immunity and enables stable data transmission in electrically demanding environments. Operating from a single 5V power supply, the SN75176BP simplifies system design while delivering reliable communication performance. The integrated driver and receiver feature independent enable controls, allowing flexible management of transmit and receive functions within networked applications. The transceiver complies with TIA/EIA-485-A and TIA/EIA-422-B standards, making it suitable for a wide range of industrial communication protocols and fieldbus implementations. Its differential architecture allows robust data transmission across long cable distances while maintaining excellent resistance to electromagnetic interference. The SN75176BP provides high-current differential outputs up to ±60mA, thermal shutdown protection, current limiting functions, and a receiver input sensitivity of ±200mV. These features contribute to enhanced system reliability and protection against line faults and abnormal operating conditions. Designed with 3-state driver and receiver outputs, the device minimizes bus loading when disabled and supports multipoint network configurations with up to 32 connected nodes. Its wide common-mode voltage tolerance further improves communication stability in industrial installations. Housed in a compact 8-pin PDIP package, the SN75176BP is widely used in industrial automation systems, PLCs, motor control equipment, building automation, factory networking, process control systems, security systems, data acquisition equipment, instrumentation, and RS-485 communication interfaces, where dependable differential data transmission is required. |
| Product Group | RS485 Transceiver |
| MOQ | pcs |
| SPQ | pcs |
| Figure/Case | PDIP-8 |
| Package | Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
