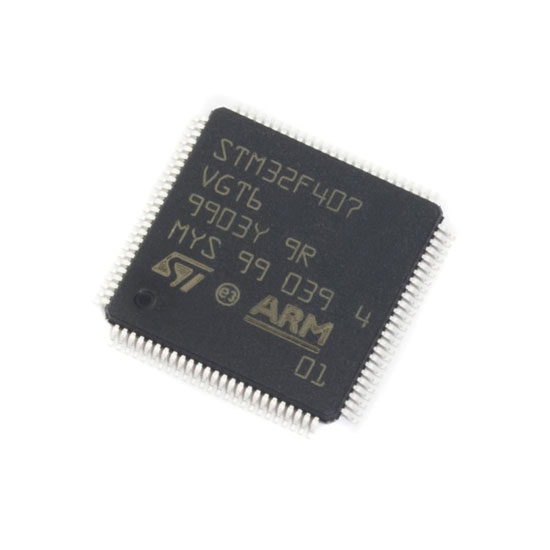

STM32F407VGT6TR
| Part Number | STM32F407VGT6TR |
|---|---|
| Manufacturer |
 ST Microelectronics
|
| Description | The STM32F407VGT6TR is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core with floating-point unit (FPU) and DSP instructions, operating at up to 168 MHz and delivering up to 210 DMIPS processing performance. It features 1MB Flash memory and 192KB SRAM, enabling complex and high-speed embedded applications. The device operates over a supply voltage range of 1.8V to 3.6V and provides up to 82 I/O pins for extensive peripheral connectivity. It integrates advanced peripherals including multiple USART, SPI, I2C, CAN, SDIO, USB OTG FS/HS, Ethernet MAC, timers, PWM modules, and a 12-bit ADC with up to 24 channels along with dual 12-bit DACs. The MCU includes a hardware random number generator, CRC unit, and DMA controller for efficient data handling. It offers multiple low-power modes and operates over a temperature range of -40°C to +85°C. Packaged in LQFP-100, it is suitable for industrial control, motor drives, IoT gateways, communication systems, and high-performance embedded applications requiring advanced connectivity and processing capability. |
| Product Group | Microcontroller |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | 100-LQFP |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
| Feature | Description |
|---|---|
| Core Processor | ARM Cortex-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 168MHz |
| Connectivity | CANbus, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M*8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | ADC 16*12b; DAC 2*12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
