TMCS1126B5AQDVGRQ1

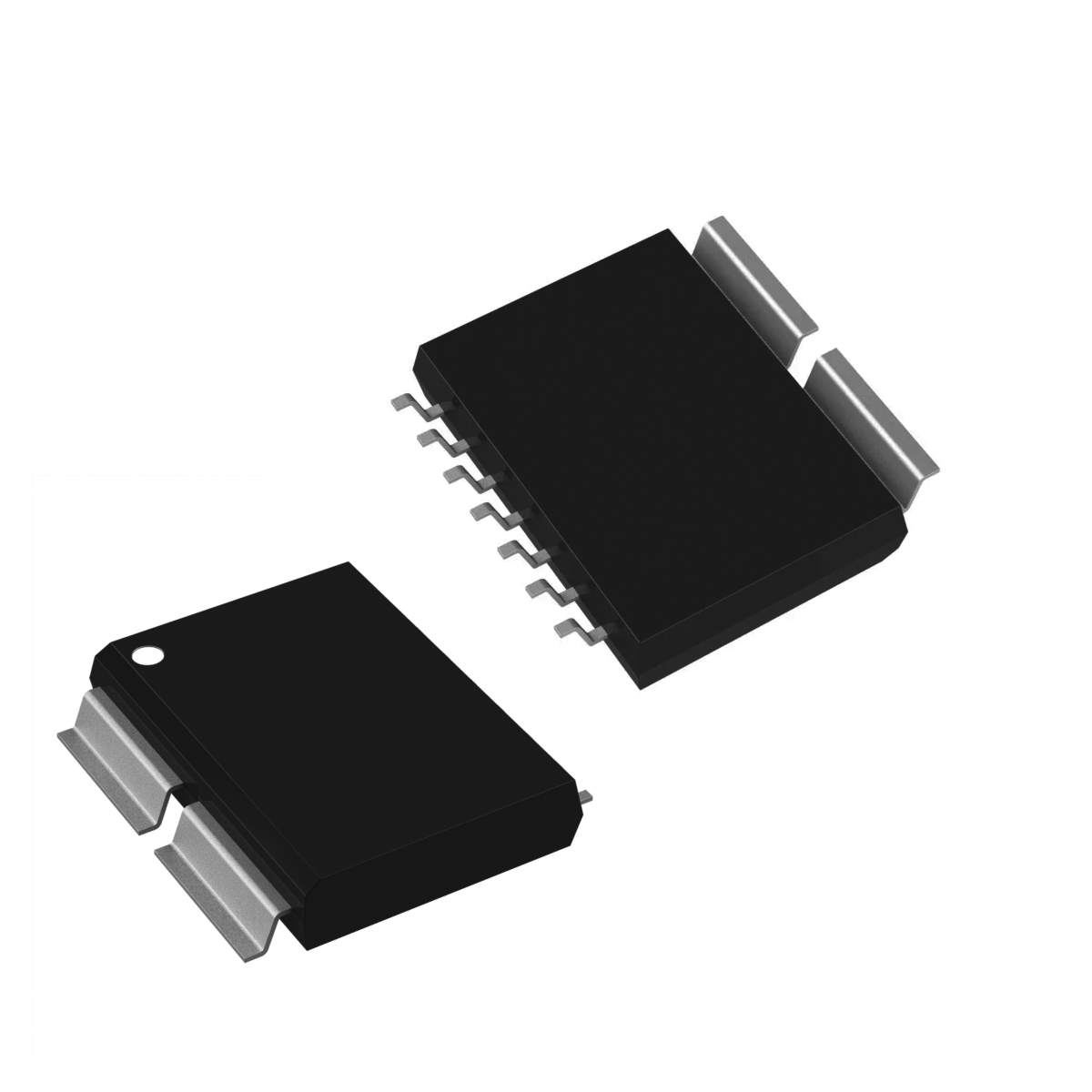

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TMCS1126B5AQDVGRQ1 |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | The TMCS1126B5AQDVGRQ1 is a high-precision Hall-effect current sensor developed by Texas Instruments, designed for accurate AC and DC current measurement in automotive and industrial applications. It provides a galvanically isolated measurement solution, ensuring safe operation between high-voltage and low-voltage domains. This device supports a bidirectional current sensing range of approximately -10.3A to +21.7A, making it suitable for monitoring both charge and discharge currents in power systems. It delivers a ratiometric analog voltage output proportional to the measured current, simplifying integration with ADCs and microcontrollers. The TMCS1126B5AQDVGRQ1 features high-speed performance with a bandwidth up to 500kHz and a fast response time of around 250ns, enabling precise tracking of rapidly changing current signals. Designed for high accuracy, the sensor offers excellent linearity (±0.1%) and stable sensitivity of approximately 150mV/A, ensuring reliable measurement over temperature and lifetime conditions. The device operates from a 3V to 5.5V supply voltage and is qualified to AEC-Q100 automotive standards, supporting operation across a wide temperature range of -40°C to +125°C. It incorporates advanced features such as reinforced isolation, ambient magnetic field rejection, and overcurrent detection, enhancing system reliability in electrically noisy environments. Encapsulated in a compact 10-pin SOIC surface-mount package, the TMCS1126B5AQDVGRQ1 is suitable for high-density PCB designs and automated manufacturing processes. The TMCS1126B5AQDVGRQ1 is widely used in automotive power systems, battery management systems (BMS), motor control, industrial power supplies, and inverter applications, where precise, fast, and isolated current measurement is critical. |
| Product Group | Current Sensor |
| MOQ | 2000 pcs |
| SPQ | 2000 pcs |
| Figure/Case | SOIC-10 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
