TLP185(GB-TPL,SE

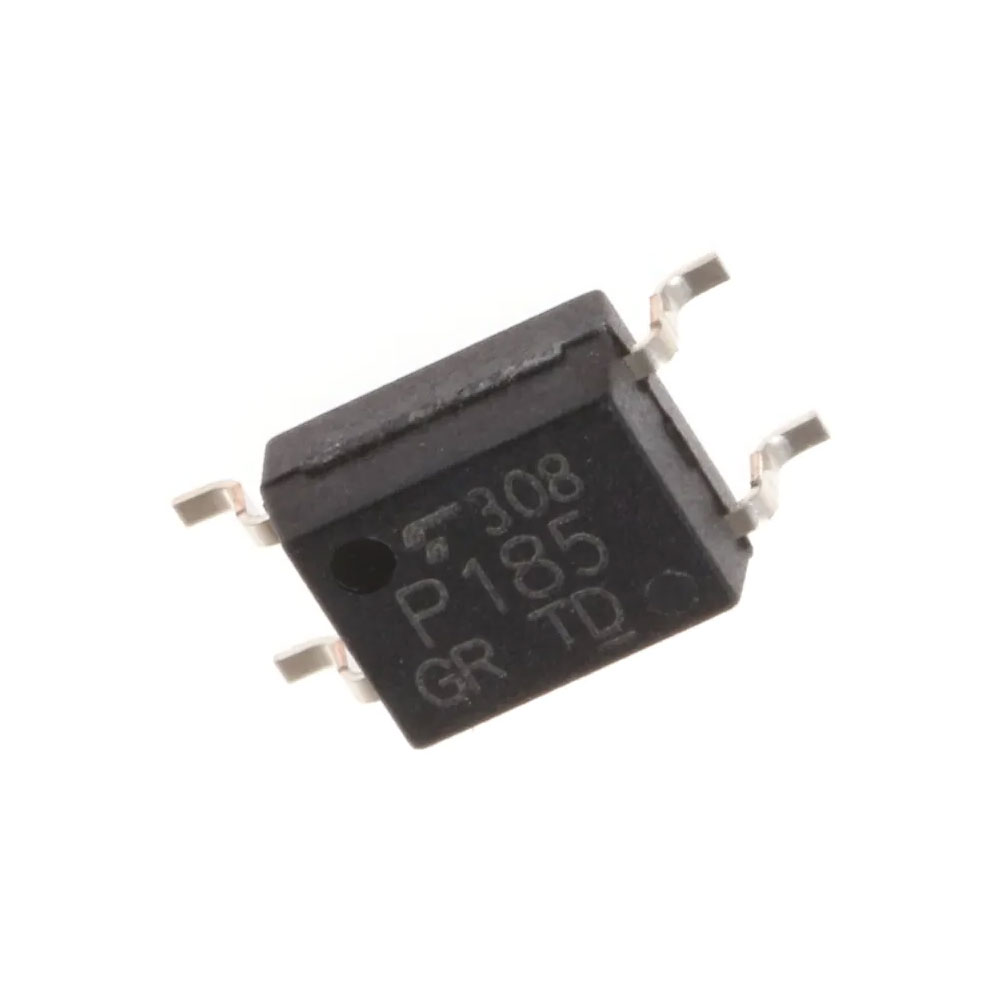

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TLP185(GB-TPL,SE |
|---|---|
| Manufacturer |
 Toshiba
|
| Description | The TLP185 (GB-TPL,SE) is a compact and high-reliability phototransistor output optocoupler developed by Toshiba, designed to provide electrical isolation between input and output circuits in industrial, consumer, and communication systems. It integrates a high-efficiency infrared LED and a phototransistor detector in a single package, ensuring safe and noise-resistant signal transmission. This device features a single-channel configuration with an isolation voltage of up to 3750Vrms, enabling robust protection against high-voltage transients and electrical interference. It supports an output voltage of up to 80V and a collector current of 50mA, making it suitable for switching and signal isolation applications. The TLP185 provides a current transfer ratio (CTR) range of 100% to 600%, allowing flexible operation across different signal levels and ensuring reliable performance in varying circuit conditions. Its fast switching characteristics and stable operation make it ideal for logic interfacing and control signal isolation. Designed for surface-mount applications, it is housed in a compact SOP-4 / SO6-4 package, enabling efficient PCB space utilization while maintaining excellent insulation and thermal characteristics. The device operates over a wide temperature range of -55°C to +110°C, ensuring dependable performance in harsh environments. The TLP185 (GB-TPL,SE) is widely used in industrial automation, power supplies, PLC systems, microcontroller interfacing, signal isolation circuits, and communication equipment where high isolation, compact size, and reliable switching performance are essential. |
| Product Group | Optocoupler |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOP-4 (SMD) |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
