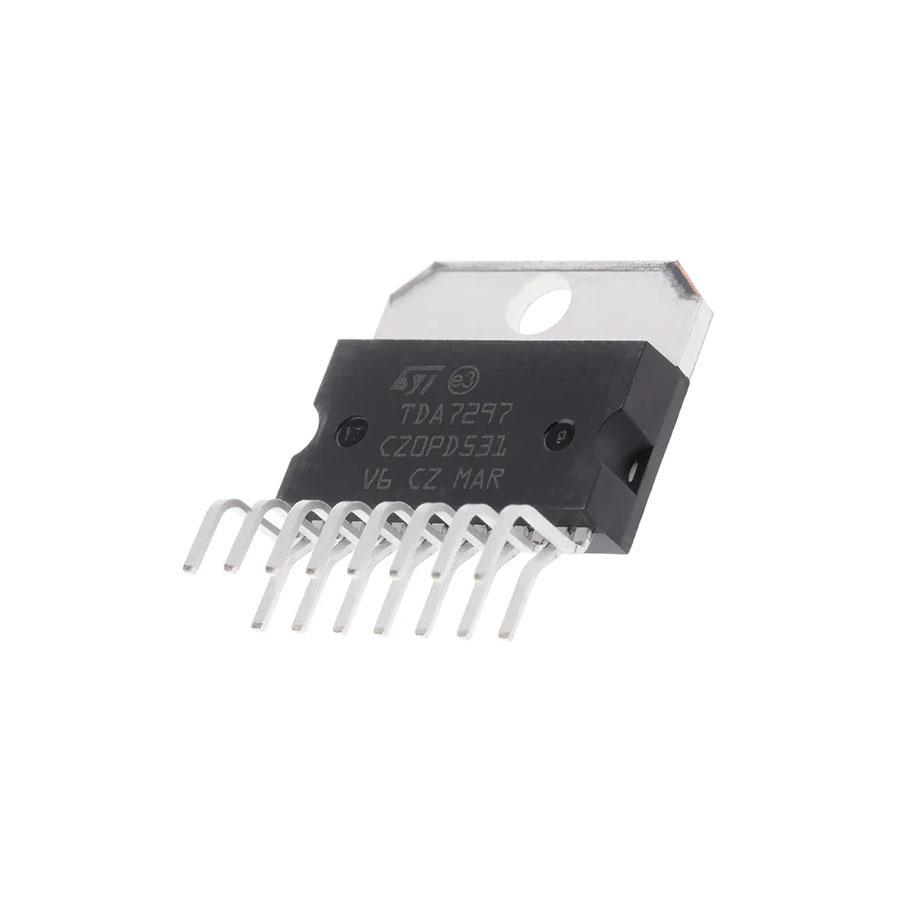

TDA7297
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TDA7297 |
|---|---|
| Manufacturer |
 ST Microelectronics
|
| Description | The TDA7297 is a dual-channel Class-AB audio power amplifier developed by STMicroelectronics, designed for high-quality stereo audio applications with minimal external components. It is capable of delivering up to 2 × 15W output power, making it suitable for medium-power audio systems such as home speakers and multimedia devices. Operating from a single supply voltage range of approximately 6V to 18V (typically 12V), the TDA7297 simplifies power supply design and is ideal for both consumer electronics and DIY audio projects. Its bridge (BTL) configuration allows higher output power without the need for output coupling capacitors. The device offers low distortion and low noise performance, ensuring clear and reliable audio output. It also integrates key protection features including thermal shutdown and short-circuit protection, enhancing durability and operational safety. Packaged in a Multiwatt-15 through-hole format, the TDA7297 supports easy heat sinking and robust assembly. It is widely used in applications such as home audio systems, TV sound amplifiers, portable speakers, DIY amplifier boards, and multimedia systems where simple design, good audio performance, and cost-effectiveness are important. |
| Product Group | Amplifier |
| MOQ | 1000 pcs |
| SPQ | 25 pcs |
| Figure/Case | 15-Multiwatt |
| Package | TUBE Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
