ADA4853-1AKSZ-R7

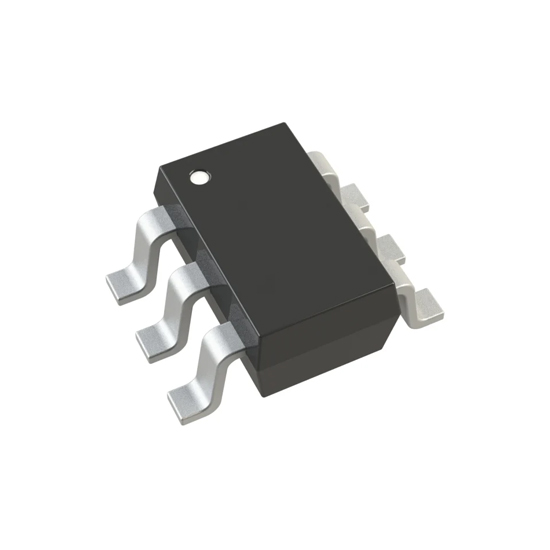

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADA4853-1AKSZ-R7 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADA4853-1AKSZ-R7 is a high-speed, ultralow-power single-channel voltage feedback operational amplifier from Analog Devices, designed for video, imaging, signal conditioning, portable instrumentation, and high-speed analog applications. It combines wide bandwidth, fast slew rate, rail-to-rail output capability, and very low supply current in an extremely compact surface-mount package. The amplifier provides a -3dB bandwidth of 100MHz, allowing it to process high-frequency analog and video signals with excellent dynamic performance. Its wide bandwidth makes the device suitable for active filters, ADC driving, video buffering, sensor interfaces, and other applications requiring fast signal response. The ADA4853-1AKSZ-R7 features a high slew rate of approximately 120V/µs, enabling rapid output voltage transitions and minimizing distortion when processing large-amplitude, high-frequency signals. This performance is particularly useful in video signal chains and high-speed data acquisition systems. Designed for energy-efficient systems, the device consumes only approximately 1.4mA supply current while maintaining high-speed amplifier performance. This combination of low power consumption and wide bandwidth makes it especially suitable for portable, battery-powered, and thermally constrained electronic equipment. The amplifier operates from a single supply voltage range of approximately 2.65V to 5V, providing compatibility with modern low-voltage analog and digital systems. Its rail-to-rail output stage allows the output voltage to swing close to the supply rails, maximizing usable dynamic range in low-voltage applications. The ADA4853-1AKSZ-R7 is capable of delivering output currents up to approximately 160mA per channel, providing strong drive capability for low-impedance loads, transmission lines, ADC inputs, and video circuitry. This high output current capability improves design flexibility without requiring an additional buffer stage in many applications. The voltage feedback architecture provides predictable gain behavior and straightforward compensation across a wide range of analog designs. Low distortion and fast settling characteristics make the device suitable for precision signal paths as well as high-speed communication and imaging circuits. Packaged in an ultra-compact 6-lead SC-70 package, the ADA4853-1AKSZ-R7 minimizes PCB space and is well suited for dense multilayer designs and portable electronics. The R7 ordering option is supplied in 3000-piece tape-and-reel packaging for automated SMT production. The ADA4853-1AKSZ-R7 is widely used in video amplifiers, portable instrumentation, ADC driver circuits, active filters, imaging systems, communication equipment, sensor signal conditioning, medical electronics, battery-powered devices, industrial measurement systems, high-speed data acquisition equipment, and general-purpose high-bandwidth analog applications requiring low power consumption, wide bandwidth, and rail-to-rail output operation. |
| Product Group | OpAmp |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SC-70-6 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
