NR6045T330M

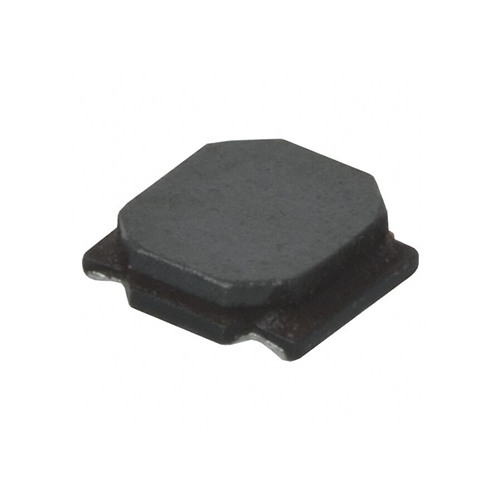

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | NR6045T330M |
|---|---|
| Manufacturer |
 TAIYO YUDEN
|
| Description | The NR6045T330M is a compact and efficient surface-mount power inductor developed by Taiyo Yuden, designed for use in switching power supplies and DC-DC converter applications. It features a nominal inductance of 33µH with ±20% tolerance, providing stable energy storage and filtering in power circuits. This inductor supports a rated current of approximately 1.4A and a saturation current up to 1.5A, enabling reliable operation in moderate current applications such as voltage regulators and power management systems. Constructed with a ferrite core and wirewound structure, the NR6045T330M offers low core losses and stable inductance characteristics across operating conditions. Its semi-shielded design helps reduce electromagnetic interference (EMI), improving overall circuit performance. The device exhibits a low DC resistance of approximately 0.145Ω typical (0.1885Ω max), minimizing conduction losses and enhancing efficiency in power conversion circuits. It also features a self-resonant frequency of around 6MHz, supporting high-frequency switching applications. With compact dimensions of 6.0mm × 6.0mm × 4.5mm, the NR6045T330M is well suited for space-constrained PCB layouts while maintaining good thermal and electrical performance. The inductor operates over a wide temperature range of -25°C to +120°C, ensuring stable performance in industrial environments and demanding operating conditions. The NR6045T330M is widely used in DC-DC converters, switching power supplies, voltage regulator modules, portable electronics, and general-purpose power filtering applications, where compact size, efficiency, and reliability are essential. |
| Product Group | Wirewounded Inductor |
| MOQ | 1500 pcs |
| SPQ | 1500 pcs |
| Figure/Case | SMD 60/60/45 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
