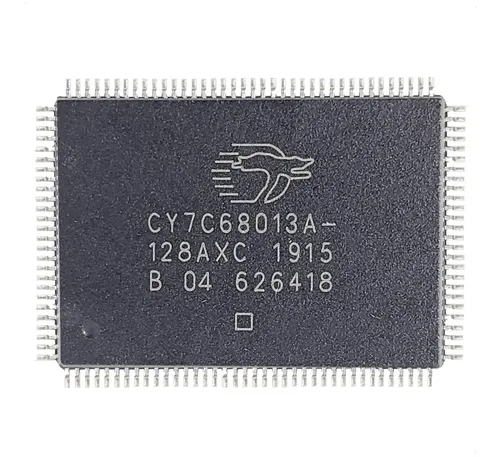

CY7C68013A-128AXC
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CY7C68013A-128AXC |
|---|---|
| Manufacturer |
 Cypress Semiconductor
|
| Description | The CY7C68013A-128AXC is a high-performance EZ-USB FX2LP USB 2.0 peripheral controller, originally developed by Cypress Semiconductor and now part of the Infineon Technologies product portfolio. It combines an enhanced 8051 microcontroller, integrated USB transceiver, and programmable data interfaces for high-speed embedded USB applications. Supporting USB 2.0 high-speed communication at up to 480Mbps, the CY7C68013A-128AXC provides an integrated USB serial interface engine and flexible endpoint buffering. Its enhanced 8-bit 8051 CPU operates at up to 48MHz and includes 16KB internal code/data RAM. The ROMless architecture supports firmware loading through USB, EEPROM, or external memory. The device features a General Programmable Interface (GPIF), programmable FIFO architecture, and an 8-bit or 16-bit parallel interface, enabling efficient data exchange with FPGAs, DSPs, imaging devices, and external controllers. Additional peripherals include 40 programmable I/O pins, two USART interfaces, an I2C controller, hardware timers, and programmable USB endpoints. These features support flexible embedded communication and high-throughput data acquisition systems. The CY7C68013A-128AXC operates from a 3.0V to 3.6V supply voltage and supports a commercial operating temperature range of 0°C to +70°C. It is supplied in a 128-pin TQFP surface-mount package with a 14 × 20mm body and 0.50mm pin pitch. Typical applications include USB data acquisition systems, industrial cameras, FPGA-to-USB interfaces, digital instrumentation, imaging equipment, high-speed peripheral adapters, and embedded USB communication devices. Lifecycle Notice: The CY7C68013A-128AXC has been discontinued by Infineon Technologies and is intended primarily for maintenance, repair, and legacy equipment support, subject to remaining stock availability. |
| Product Group | Microcontroller |
| MOQ | 360 pcs |
| SPQ | 360 pcs |
| Figure/Case | TQFP-128 |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
