EC200NCNLA-N05-SNNSA

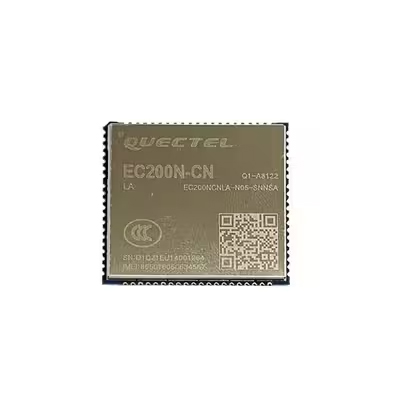

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | EC200NCNLA-N05-SNNSA |
|---|---|
| Manufacturer |
 Quectel
|
| Description | The EC200NCNLA-N05-SNNSA is a compact and cost-effective LTE Category 1 cellular communication module from Quectel, specifically designed for industrial Internet of Things (IoT), machine-to-machine (M2M), smart metering, remote monitoring, payment terminals, security systems, and embedded communication equipment. As a member of the EC200N Series, it provides reliable LTE connectivity while maintaining low power consumption and a highly integrated hardware architecture suitable for mass-market IoT deployments. It supports LTE Cat 1 download speeds of up to 10 Mbps and upload speeds of up to 5 Mbps. The module supports LTE-FDD and LTE-TDD cellular networks and is optimized for the China and India regional markets. It provides reliable broadband wireless communication while maintaining compatibility with modern LTE infrastructure for industrial and commercial IoT applications. The EC200NCNLA-N05-SNNSA integrates a rich collection of communication interfaces including USB 2.0 High-Speed, UART, I²C, PCM digital audio, GPIO, ADC, SIM interface, RESET, PWRKEY, and RF antenna interface. Selected variants also support Bluetooth® 5.0 and optional GNSS (GPS/BeiDou), allowing developers to implement wireless connectivity and positioning functions within a single hardware platform. Operating from a 3.4V to 4.5V supply voltage (3.8V typical), the module delivers excellent RF performance while maintaining low power consumption. The compact 29 × 32 × 2.4 mm LCC package supports fully automated SMT assembly, making it suitable for high-volume manufacturing. It is specified for an operating temperature range of -35°C to +75°C, with extended industrial versions supporting operation up to -40°C to +85°C. The module supports a comprehensive software ecosystem including TCP/IP, UDP, PPP, HTTP, HTTPS, FTP, MQTT, SSL/TLS, SMTP, CMUX, NTP, SMS, DFOTA (Device Firmware Over-The-Air), and standard AT commands. Drivers are available for Windows, Linux, and Android, enabling rapid integration into industrial gateways, ARM platforms, embedded Linux systems, and custom microcontroller-based products. The EC200NCNLA-N05-SNNSA is widely used in industrial IoT gateways, smart utility meters, payment terminals, POS systems, industrial automation equipment, remote telemetry units, vehicle tracking devices, security and alarm systems, environmental monitoring stations, agricultural automation, vending machines, logistics terminals, digital signage, healthcare equipment, and machine-to-machine (M2M) communication applications requiring reliable LTE Cat 1 connectivity, compact size, and long-term industrial reliability. |
| Product Group | RF and Wifi Module |
| MOQ | 250 pcs |
| SPQ | 250 pcs |
| Figure/Case | LCC |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
