ADP5054ACPZ-R7

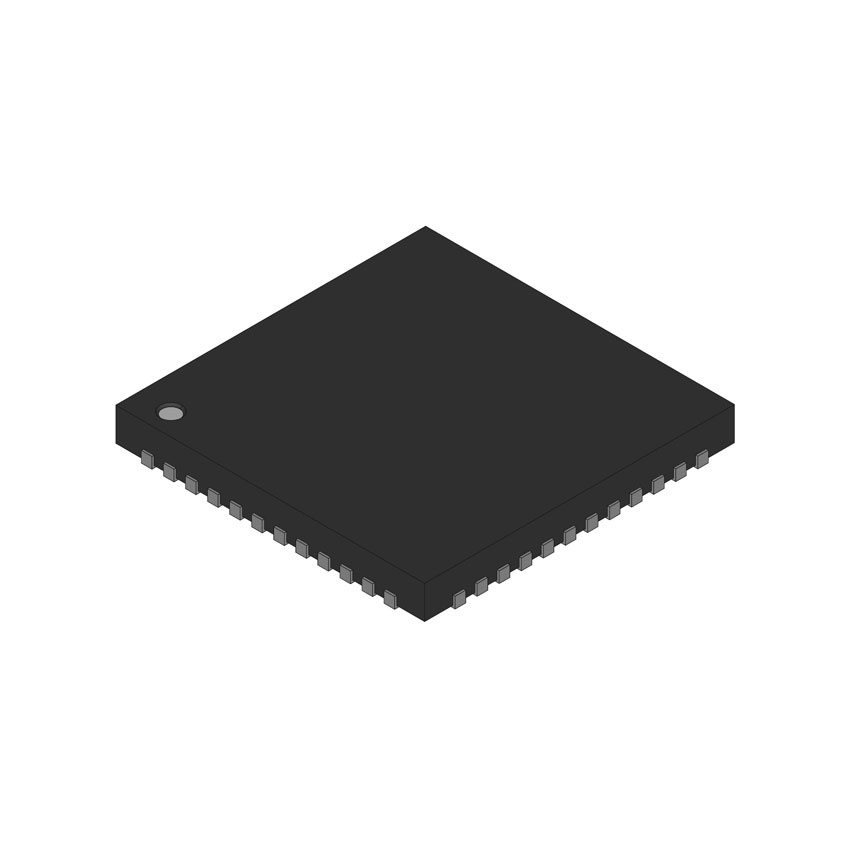

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADP5054ACPZ-R7 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADP5054ACPZ-R7 is a highly integrated quad buck regulator power management IC (PMIC) from Analog Devices, designed to provide efficient multi-rail power conversion for FPGA, processor, networking, industrial, and embedded computing applications. By integrating four high-performance switching regulators into a single package, it helps reduce board space and simplify power supply design. This device supports an input voltage range of 4.5V to 15.5V, allowing direct connection to a wide variety of power sources without requiring additional preregulators. The integrated architecture enables the generation of multiple regulated voltage rails from a single supply source. Channels 1 and 2 support programmable output current configurations of up to 6A per channel, while Channels 3 and 4 provide up to 2.5A per channel. Parallel operation is also supported, allowing Channels 1 and 2 to deliver up to 12A combined output current and Channels 3 and 4 to provide up to 5A combined output current. The ADP5054ACPZ-R7 offers a programmable switching frequency from 250kHz to 2MHz and supports synchronization to an external clock source, enabling optimization of efficiency, EMI performance, and overall power system design. Additional features include power-good monitoring, precision enable inputs, soft-start control, overcurrent protection, undervoltage lockout, and thermal shutdown protection. Its low-noise architecture and high integration level make it particularly suitable for powering sensitive digital processors, FPGAs, communication modules, and high-performance embedded systems. Packaged in a compact 48-pin LFCSP surface-mount package, the ADP5054ACPZ-R7 enables high-density PCB layouts while maintaining excellent thermal and electrical performance. The ADP5054ACPZ-R7 is widely used in FPGA power supplies, processor power management, industrial automation equipment, networking hardware, wireless infrastructure, security systems, medical electronics, and embedded computing platforms, where efficient multi-output power conversion and compact system design are essential. |
| Product Group | Voltage Regulator |
| MOQ | 750 pcs |
| SPQ | 750 pcs |
| Figure/Case | LFCSP-48 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
ADP5054ACPZ-R7
