MAX5222EKA+T

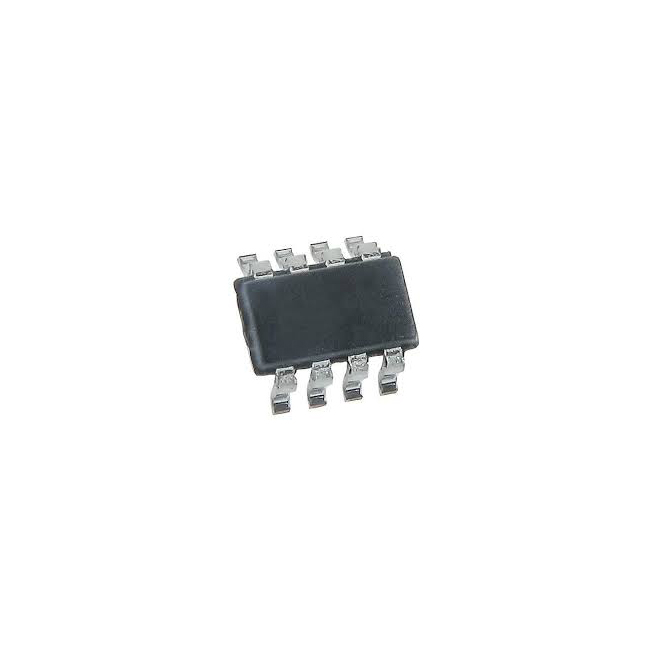

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MAX5222EKA+T |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The MAX5222EKA+T is a compact and efficient dual 8-bit digital-to-analog converter (DAC) developed by Analog Devices (Maxim Integrated), designed for precision voltage output generation in embedded and industrial systems. It integrates two buffered voltage-output DAC channels within a small footprint, enabling flexible analog signal control. The device operates from a single 2.7V to 5.5V supply voltage, making it compatible with both low-voltage and standard logic systems. It utilizes an R-2R ladder architecture to provide stable and accurate analog output signals. The MAX5222EKA+T features a high-speed 3-wire serial interface compatible with SPI, QSPI, and MICROWIRE standards, supporting clock rates up to approximately 25MHz for fast data transfer and real-time control. Designed for low power operation, the device consumes less than 1mA during normal operation and drops to below 1µA in shutdown mode, making it ideal for battery-powered and energy-sensitive applications. The DAC outputs are capable of sourcing and sinking current up to 1mA and can swing close to both supply rails, ensuring flexible analog output performance. It also supports programmable shutdown functionality to further optimize system power consumption. Encased in a compact 8-pin SOT-23 surface-mount package, the MAX5222EKA+T is optimized for space-constrained PCB layouts while maintaining reliable performance. The MAX5222EKA+T is widely used in programmable voltage sources, gain and offset adjustment circuits, power amplifier bias control, VCO tuning, and data acquisition systems, where compact size and low-power DAC functionality are required. |
| Product Group | DAC |
| MOQ | 2500 pcs |
| SPQ | 2500 pcs |
| Figure/Case | SOT-23-8 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
