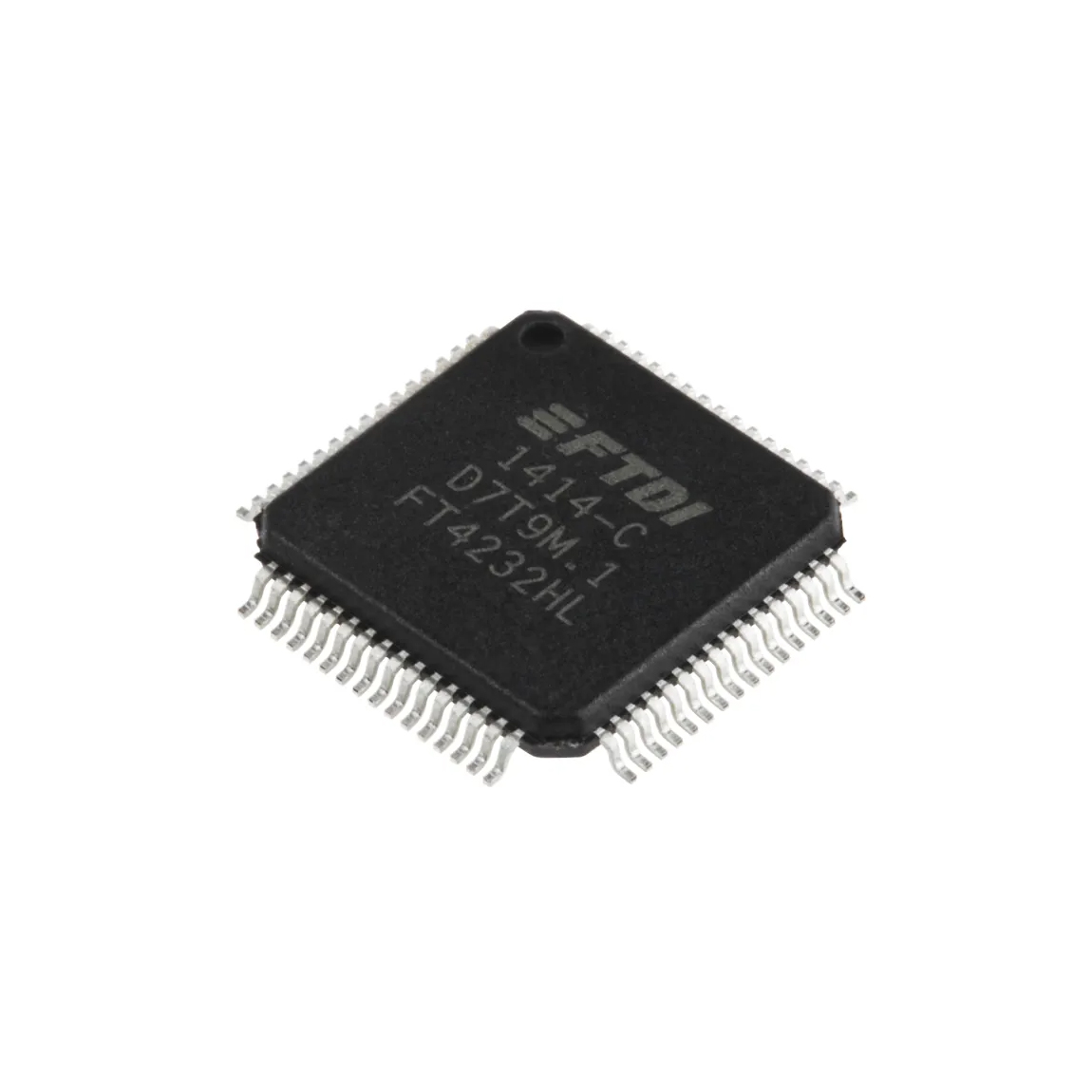

FT4232HL-REEL
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | FT4232HL-REEL |
|---|---|
| Manufacturer |
 FTDI
|
| Description | The FT4232HL-REEL is a highly integrated quad-channel USB to UART / multiprotocol interface IC developed by FTDI, designed for high-speed serial communication and interface bridging in embedded and industrial systems. It features four independent UART channels, allowing simultaneous communication with multiple devices over a single USB connection. The device operates as a USB 2.0 high-speed (480 Mbps) interface, providing fast data transfer between a host system and peripheral devices. It supports multiple communication modes, including UART, FIFO, bit-bang, and MPSSE (Multi-Protocol Synchronous Serial Engine), enabling emulation of protocols such as SPI, I2C, and JTAG. Two of the channels can be independently configured with MPSSE engines, allowing flexible implementation of synchronous serial interfaces alongside standard UART communication. This makes the IC highly versatile for debugging, programming, and communication tasks. The FT4232HL-REEL operates within a 3.0V to 3.6V supply voltage range and typically consumes around 70mA, offering a balance between performance and power efficiency. It supports operation across an industrial temperature range of -40°C to +85°C, ensuring reliable performance in demanding environments. The device includes advanced features such as USB bus-powered and self-powered operation modes, internal clock generation, and configurable I/O interfaces, reducing the need for external components and simplifying system design. Packaged in a compact 64-pin LQFP surface-mount form factor, the FT4232HL-REEL is optimized for high-density PCB layouts while maintaining strong electrical performance. The FT4232HL-REEL is widely used in USB-to-serial converters, JTAG/SPI/I2C interface bridges, FPGA and microcontroller programming, industrial communication systems, and embedded development platforms, where multi-channel high-speed USB connectivity is required. |
| Product Group | USB UART |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | LQFP-64 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
