TC62D748CFNAG
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TC62D748CFNAG |
|---|---|
| Manufacturer |
 Toshiba
|
| Description |

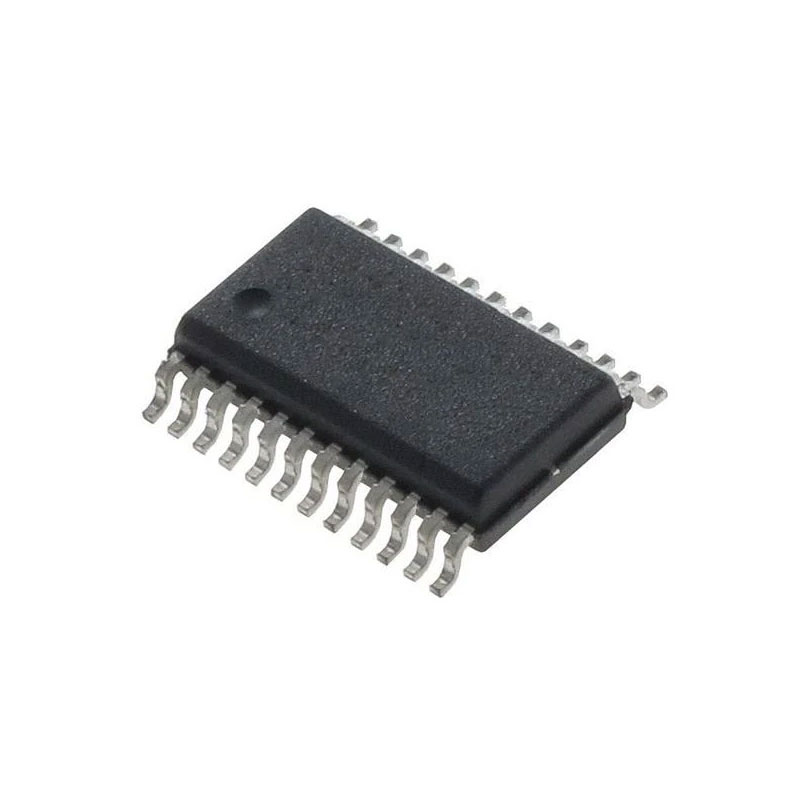

The TC62D748CFNAG is a high-performance 16-channel constant-current LED driver IC manufactured by Toshiba Semiconductor & Storage. Designed for LED display panels and amusement equipment, this device integrates sixteen constant-current outputs with a serial shift register and latch circuit. Its compact 24-pin SSOP surface-mount package makes it suitable for multi-channel LED control and high-density electronic designs. The Toshiba TC62D748CFNAG operates from a 3.3V to 5.0V supply voltage and provides 1.5mA to 90mA programmable output current per channel. The device supports a 25MHz maximum serial data transfer frequency and a 17V maximum output withstand voltage. Output current is configured using a single external resistor, simplifying circuit design. The N-rank device specifies ±2.5% maximum channel-to-channel current error under defined test conditions. The TC62D748CFNAG 16-output LED driver integrates a 16-bit shift register, data latch, CMOS logic interface, and built-in power-on reset. Serial data input and output connections enable multiple drivers to be cascaded for expanded LED channel capacity. The output-enable function supports external LED switching and brightness control, making the device suitable for LED matrices, illuminated indicators, display modules, and industrial LED control circuits. The TC62D748CFNAG is supplied in a 24-pin P-SSOP24 surface-mount package with a 0.64mm pin pitch. It operates over a temperature range of -40°C to +85°C. The TC62D748CFNAG,C,EB ordering variant is supplied in 2000-piece tape-and-reel packaging. This product is listed as obsolete by major distributors, so availability should be confirmed before ordering. The Toshiba TC62D748CFNAG 16-channel 90mA constant-current LED driver is suitable for large LED display panels, LED signage, arcade machines, amusement equipment, LED indicator arrays, embedded LED controllers, industrial display systems, electronic repair, and legacy LED driver replacement applications. |
| Product Group | LED Driver |
| MOQ | 2000 pcs |
| SPQ | 2000 pcs |
| Figure/Case | SSOP-24 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
