ATTINY9-TS8R

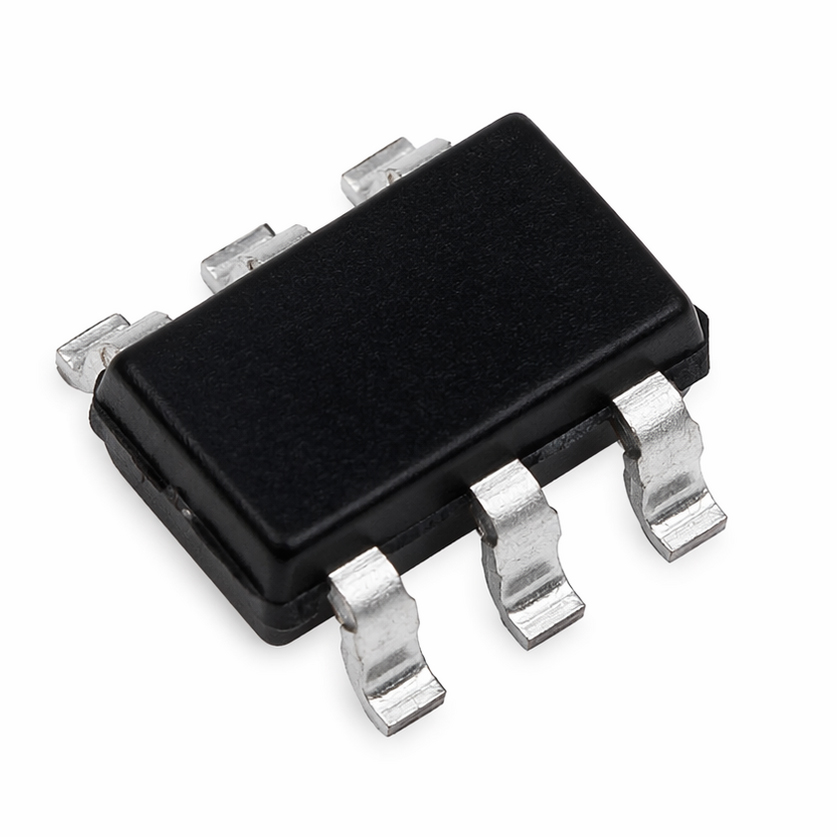

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ATTINY9-TS8R |
|---|---|
| Manufacturer |
 Microchip
|
| Description | The ATTINY9-TS8R is an ultra-compact and energy-efficient 8-bit AVR microcontroller developed by Microchip Technology, designed for low-cost embedded control and portable electronic applications. It belongs to the tinyAVR family and provides efficient processing capability in extremely space-constrained designs. The device integrates 1KB of in-system programmable Flash memory along with SRAM resources for embedded firmware execution and simple control applications. It utilizes an optimized AVR RISC architecture, enabling fast instruction execution with low power consumption. The ATTINY9-TS8R supports operating frequencies up to approximately 12 MHz using its internal oscillator, minimizing the need for external timing components and simplifying PCB design. The microcontroller operates from a supply voltage range of approximately 1.8V to 5.5V, making it suitable for low-voltage and battery-powered electronic systems. It also includes multiple low-power sleep modes to reduce energy consumption during standby operation. The device integrates useful peripherals including GPIO ports, timer/counter modules, watchdog timer, analog comparator, and interrupt functionality, enabling implementation of compact sensing, timing, and control applications with minimal external components. Packaged in a miniature TSOT-23-6 / SOT-23-6 surface-mount package, the ATTINY9-TS8R is optimized for highly compact PCB layouts and portable embedded devices. The ATTINY9-TS8R is widely used in portable electronics, LED drivers, sensor modules, wearable devices, battery-powered products, industrial control systems, and compact embedded applications, where low power consumption and extremely small package size are critical. |
| Product Group | Microcontroller |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-23-6 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
