74HC595D,118

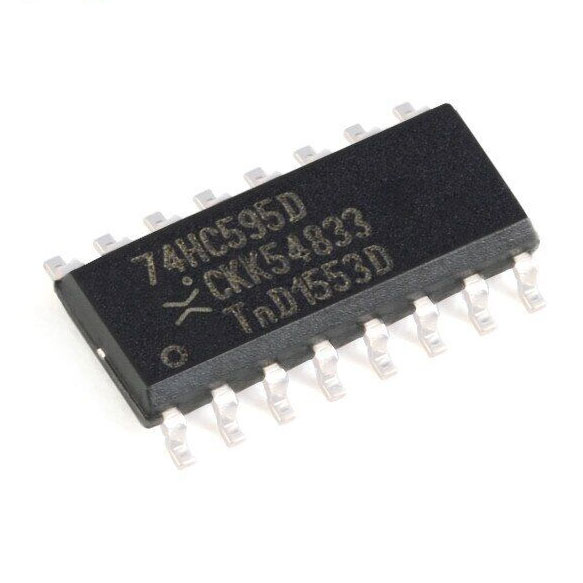

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | 74HC595D,118 |
|---|---|
| Manufacturer |
 Nexperia
|
| Description | The 74HC595D,118 is a high-speed CMOS 8-bit serial-in, parallel-out shift register with an integrated storage register and 3-state outputs, designed for efficient data expansion and output control. It operates over a supply voltage range of 2.0V to 6.0V and features low power consumption with typical quiescent current in the microampere range. The device supports high-speed clock operation up to approximately 25 MHz at 5V and provides output drive capability up to ±6 mA. It includes a shift register clock (SHCP), storage register clock (STCP), serial data input (DS), output enable (OE), and master reset (MR) inputs. Typical propagation delay is around 15–25 ns, with low input leakage current (<1 µA). Operating over a temperature range of -40°C to +125°C and packaged in SOIC-16, it is ideal for LED driving, data latching, and digital interface applications. |
| Product Group | Logic IC |
| MOQ | 2500 pcs |
| SPQ | 2500 pcs |
| Figure/Case | 16-SOIC |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
| Attribute | Description |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number | SN74HC595D |
| Function | 8-bit serial-in, serial or parallel-out shift register with output latches; 3-state outputs |
| Logic Type | Shift Register |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function Details | Serial to Parallel, Serial |
| Voltage - Supply (VCC) | 2V to 6V |
| Operating Temperature | -40°C to 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74HC595 |
