HT16L21

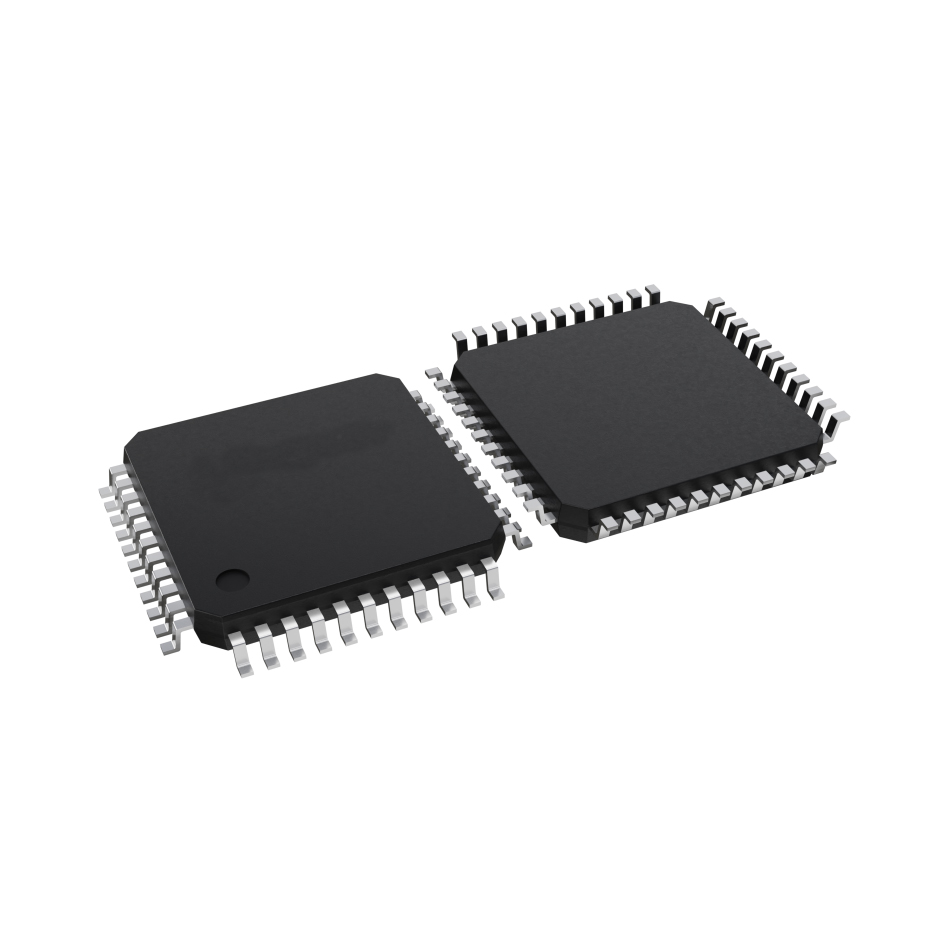

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | HT16L21 |
|---|---|
| Manufacturer |
 Holtek
|
| Description | The HT16L21 is a highly integrated LCD controller/driver IC developed by Holtek Semiconductor, designed for driving segment-based LCD displays in embedded and consumer electronics applications. It supports a 32 segment × 4 common LCD configuration, allowing control of up to 128 display elements with efficient RAM mapping architecture. The device features an internal display RAM with mapping capability, enabling direct correspondence between memory data and LCD segments for simplified control and reduced firmware complexity. It supports multiple display modes and bias configurations to optimize contrast and viewing performance. Operating with a logic supply voltage range of 1.8V to 5.5V and an LCD drive voltage up to approximately 6.0V, the HT16L21 is suitable for both low-power and standard voltage systems. The IC includes an internal oscillator and low-power design, minimizing external component requirements and making it ideal for battery-powered applications. It also supports power-saving modes to reduce energy consumption during idle operation. The HT16L21 provides a simple interface for microcontroller communication, enabling easy integration into embedded systems such as appliances, meters, and portable devices. It supports flexible segment addressing and display control features for custom LCD panel designs. Encased in a compact 44-pin LQFP surface-mount package, the device is optimized for high-density PCB layouts and reliable industrial operation. The HT16L21 is widely used in LCD display modules, home appliances, industrial control panels, measurement instruments, and consumer electronics, where efficient and low-power segment display driving is required. |
| Product Group | LCD Driver |
| MOQ | pcs |
| SPQ | pcs |
| Figure/Case | LQFP-44 |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
