MIC4420YM-TR

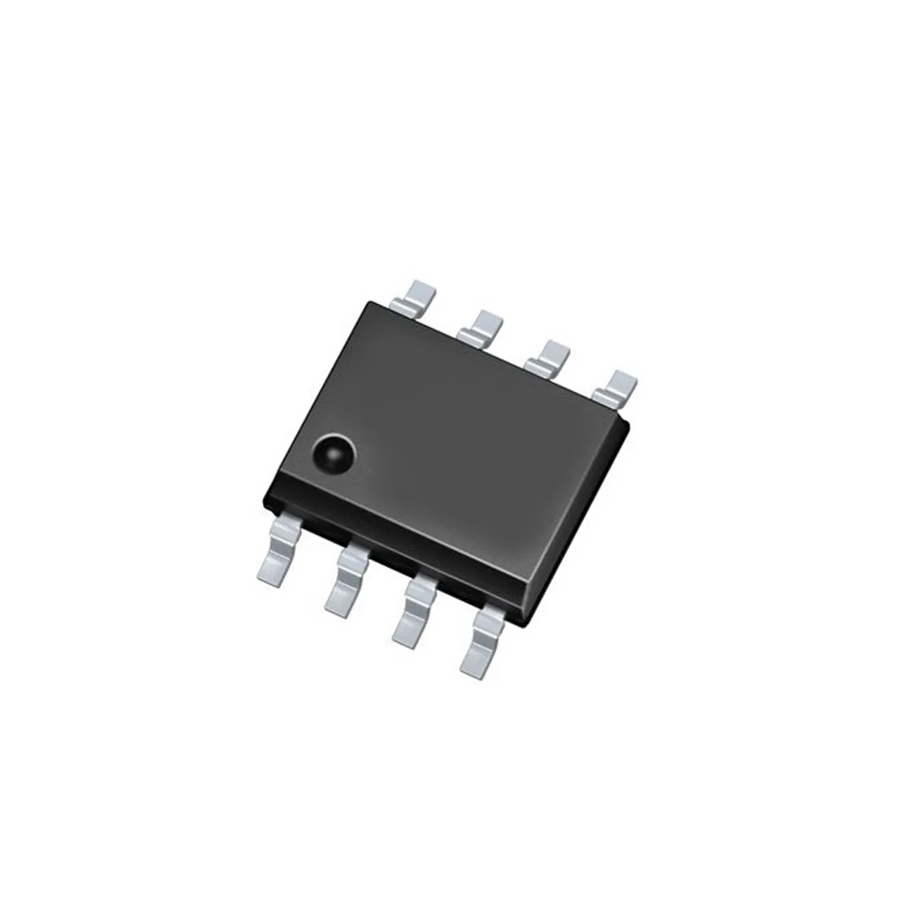

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MIC4420YM-TR |
|---|---|
| Manufacturer |
 Microchip
|
| Description | The MIC4420YM-TR is a high-performance low-side MOSFET gate driver developed by Microchip Technology, designed to drive large MOSFETs efficiently in switching power and control applications. It provides a non-inverting output configuration, making it suitable for direct logic-level control. The device delivers a high peak output current of up to 6A, enabling fast charging and discharging of MOSFET gate capacitances for efficient high-speed switching. It supports a wide operating voltage range from 4.5V to 18V, ensuring compatibility with various power system designs. The MIC4420YM-TR features fast switching performance with typical rise and fall times around 25ns and low propagation delay, allowing precise timing control in high-frequency applications. Built using a robust CMOS/DMOS architecture, the device offers low output impedance (~2.5Ω) and near rail-to-rail output swing, ensuring efficient gate drive and minimal power loss. It also includes latch-up protection and high immunity to noise, enhancing reliability in demanding environments. The driver is capable of handling large capacitive loads and supports logic inputs compatible with standard digital systems, eliminating the need for additional interface components. Encased in a compact 8-pin SOIC surface-mount package, the MIC4420YM-TR is optimized for high-density PCB layouts and efficient thermal performance. The MIC4420YM-TR is widely used in switch-mode power supplies, motor control systems, class-D amplifiers, and high-speed switching circuits, where strong gate drive capability and fast switching are essential. |
| Product Group | Gate Driver |
| MOQ | 2500 pcs |
| SPQ | 2500 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
MIC4420YM-TR
