OPA197IDGKR

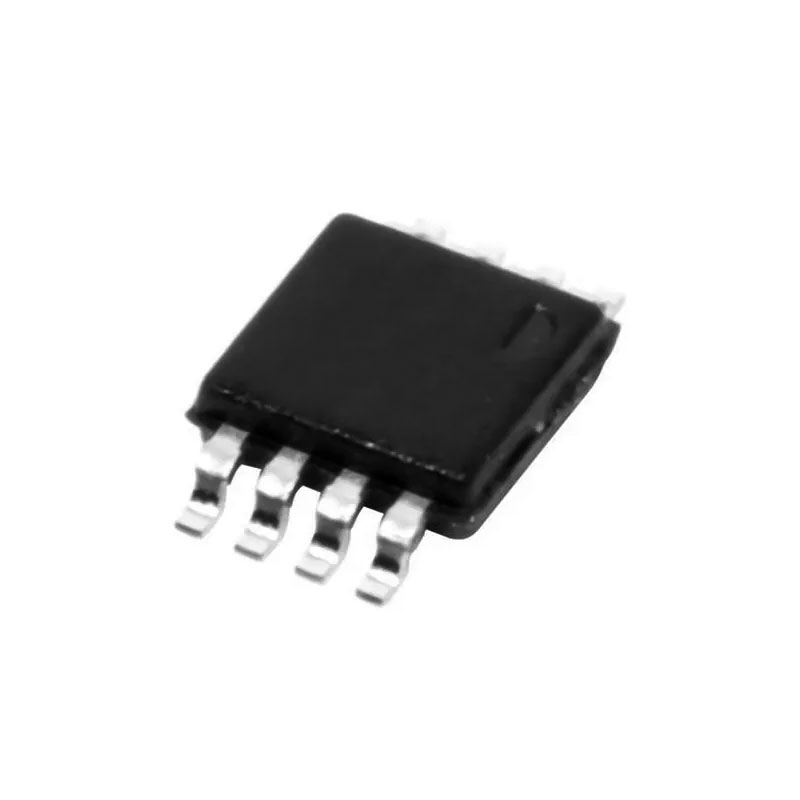

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | OPA197IDGKR |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description |
The OPA197IDGKR is a high-performance 36V single-channel precision operational amplifier manufactured by Texas Instruments (TI). Part of the OPAx197 amplifier family, this device combines rail-to-rail input and output operation, low offset voltage, and high bandwidth for accurate analog signal processing. Its compact VSSOP-8 surface-mount package makes it suitable for industrial electronics, precision instrumentation, and space-constrained PCB designs. The Texas Instruments OPA197IDGKR operates from a 4.5V to 36V single supply or ±2.25V to ±18V dual supplies. Key electrical specifications include a 10MHz gain bandwidth product, 20V/µs slew rate, ±25µV typical input offset voltage, and ±0.25µV/°C typical offset drift. The amplifier also features 5.5nV/√Hz input voltage noise at 1kHz, ±5pA typical input bias current, and 1mA typical quiescent current. The OPA197 precision rail-to-rail op amp features EMI/RFI-filtered inputs, excellent common-mode rejection, and high capacitive load drive capability. Its low offset and wide supply range support accurate amplification of small analog signals in demanding electrical environments. Typical applications include sensor signal conditioning, ADC input buffering, active filters, voltage monitoring, current sensing, and precision analog front-end circuits. The OPA197IDGKR is supplied in an 8-pin VSSOP (DGK) surface-mount package with a 3.00mm nominal body width and 0.65mm pin pitch. The device operates over an industrial temperature range of -40°C to +125°C and is supplied in standard 2500-piece tape-and-reel packaging, suitable for automated SMT assembly. The Texas Instruments OPA197IDGKR 36V 10MHz precision operational amplifier is suitable for industrial automation, precision measurement equipment, data acquisition systems, embedded electronics, PLC analog interfaces, test and measurement instruments, motor control circuits, sensor interfaces, analog signal conditioning, and general-purpose high-accuracy amplification applications. |
| Product Group | OpAmp |
| MOQ | 2500 pcs |
| SPQ | 2500 pcs |
| Figure/Case | VSSOP-8 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
