CY7C68013A-56PVXC

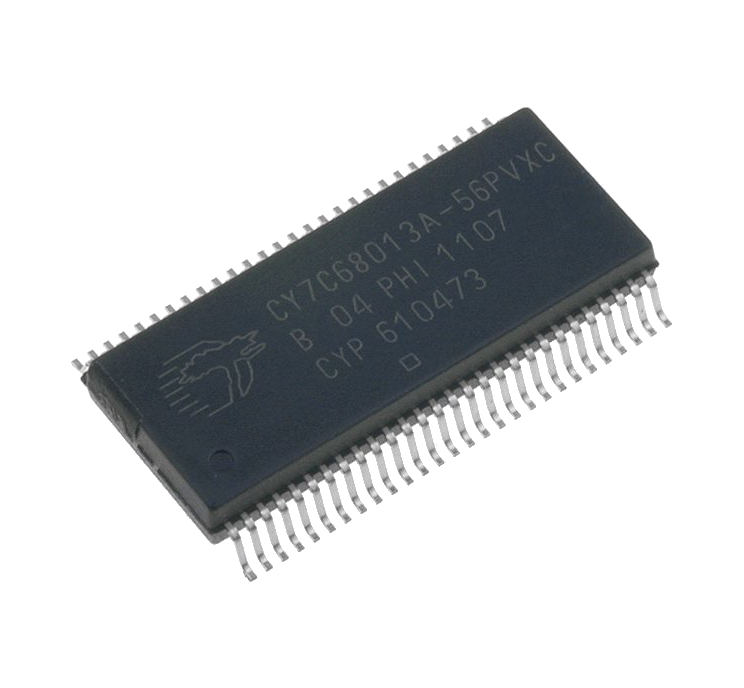

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CY7C68013A-56PVXC |
|---|---|
| Manufacturer |
 Cypress Semiconductor
|
| Description | The CY7C68013A-56PVXC is a high-performance EZ-USB FX2LP USB 2.0 peripheral controller, originally developed by Cypress Semiconductor and now part of the Infineon Technologies product portfolio. It combines an enhanced 8051 microcontroller, an integrated USB transceiver, and programmable data interfaces for high-speed embedded USB applications. Supporting USB 2.0 high-speed data transfer at up to 480Mbps, the device features an integrated USB serial interface engine, programmable endpoints, and flexible FIFO buffering. Its 8-bit enhanced 8051 CPU operates at up to 48MHz and incorporates 16KB internal code/data RAM. The ROMless architecture supports firmware loading from USB or an external EEPROM. The CY7C68013A-56PVXC includes a General Programmable Interface (GPIF) and a programmable Slave FIFO interface, enabling efficient data exchange with FPGAs, imaging devices, digital signal processors, and external controllers. The 56-pin SSOP variant provides 24 programmable I/O pins and an I2C interface for external configuration memory and peripheral communication. Unlike larger FX2LP package variants, the 56-pin version does not provide an external 8051 address/data bus or UART serial debugging support. The device operates from a 3.0V to 3.6V supply voltage and supports a commercial operating temperature range of 0°C to +70°C. It is supplied in a 56-pin SSOP surface-mount package with a 7.50mm body width and 0.635mm pin pitch. Typical applications include USB data acquisition systems, industrial cameras, FPGA-to-USB interfaces, digital instrumentation, imaging equipment, USB peripheral adapters, and embedded communication systems. Lifecycle Notice: The CY7C68013A-56PVXC is obsolete and discontinued. It is primarily suitable for maintenance, repair, and legacy equipment support, subject to remaining inventory availability. |
| Product Group | Microcontroller |
| MOQ | 520 pcs |
| SPQ | 520 pcs |
| Figure/Case | SSOP-56 |
| Package | TUBE Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
