HCPL0211-500E

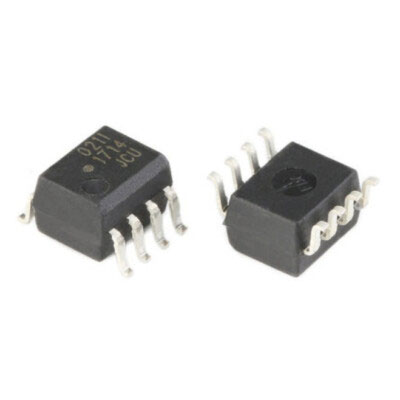

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | HCPL0211-500E |
|---|---|
| Manufacturer |
 Broadcom
|
| Description |
The HCPL-0211-500E is a high-performance 5MBd single-channel high-speed digital optocoupler manufactured by Broadcom (formerly Avago Technologies). This logic gate optoisolator provides reliable galvanic isolation between digital circuits using an AlGaAs LED and an integrated optical receiver. Its high-speed switching capability and compact SOIC-8 surface-mount package make it suitable for industrial communication, embedded electronics, and isolated digital control applications. The Broadcom HCPL-0211-500E supports a 5MBd maximum data rate, 3750Vrms isolation voltage, and 4.5V to 20V supply voltage. Key specifications include 300ns maximum propagation delay, 30ns typical rise time, 7ns typical fall time, and 25mA output current capability. The device features a typical 1.5V LED forward voltage and operates from -40°C to +85°C. The HCPL-0211 high-speed optocoupler incorporates a push-pull totem-pole output stage and an integrated Schmitt trigger for clean, logic-compatible output waveforms. Its optical isolation barrier helps reduce ground-loop interference and improves immunity to common-mode electrical disturbances. Typical applications include microcontroller signal isolation, industrial logic interfaces, digital data transmission, PLC systems, and motor control electronics. The HCPL-0211-500E is supplied in an 8-pin SOIC surface-mount package with a 3.90mm nominal body width. The -500E ordering option supports automated SMT assembly and is supplied in standard 1500-piece tape-and-reel packaging. This lead-free, RoHS3-compliant optocoupler is suitable for modern electronic manufacturing processes. The Broadcom HCPL-0211-500E 5MBd 3750Vrms digital optocoupler is suitable for industrial automation, isolated digital interfaces, embedded control systems, industrial communication equipment, switching power supplies, instrumentation, motor control, microcontroller isolation, digital signal transmission, and general-purpose high-speed galvanic isolation applications. |
| Product Group | Isolated Amplifier |
| MOQ | 1500 pcs |
| SPQ | 1500 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
