HMC452ST89ETR

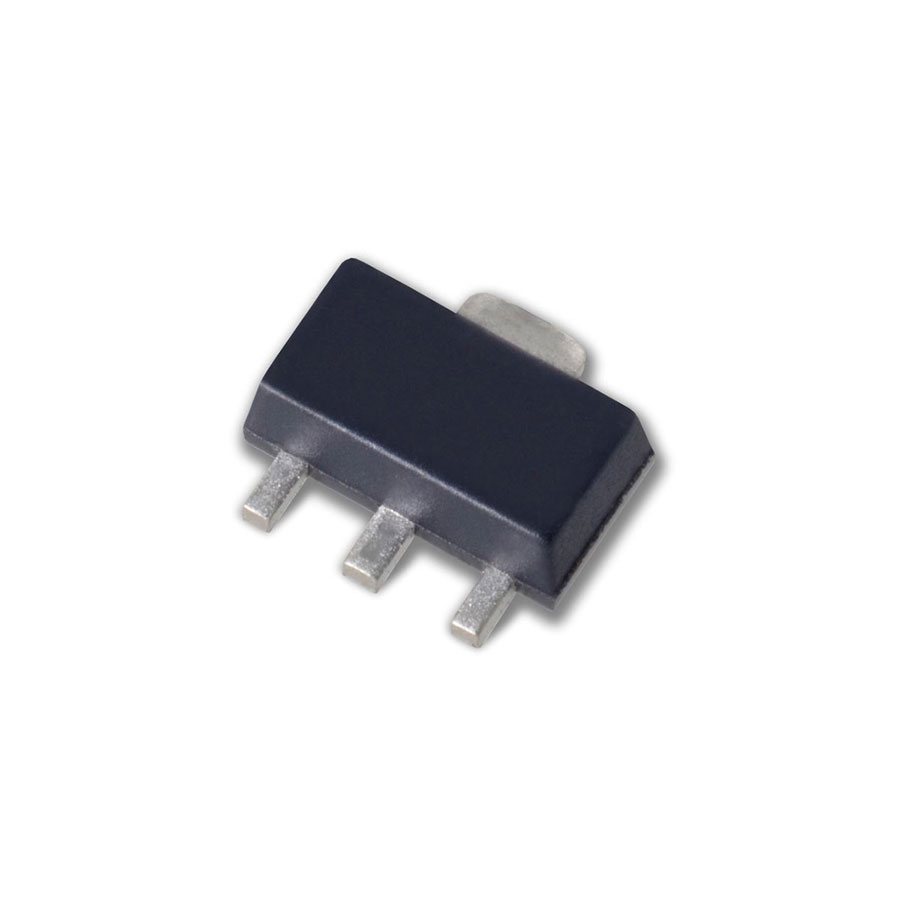

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | HMC452ST89ETR |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The HMC452ST89ETR is a high-linearity 1W MMIC RF power amplifier developed by Analog Devices, utilizing advanced InGaP HBT technology to deliver excellent gain, output power, and efficiency across a wide frequency range. It is designed for wireless infrastructure, fixed wireless access, RF communication systems, and broadband transmitter applications requiring reliable medium-power amplification. This device operates over a broad frequency range of 400MHz to 2.2GHz, making it suitable for multiple wireless standards and RF system architectures. The amplifier delivers gain levels of up to 21dB at lower frequencies while maintaining strong performance throughout its operating band. The HMC452ST89ETR provides a typical 1W output power capability with output power at 1dB compression reaching approximately 31.5dBm. Its high linearity performance enables output IP3 levels up to +49dBm, supporting demanding communication systems that require low signal distortion and high dynamic range. Operating from a single +5V supply, the amplifier requires only a minimal number of external components, simplifying RF design and reducing overall system complexity. The device also offers excellent power-added efficiency, making it suitable for power-sensitive wireless applications. The HMC452ST89ETR features a compact SOT-89 surface-mount package, allowing efficient PCB utilization while maintaining strong thermal and RF performance. Its integrated design helps reduce component count and accelerate development of broadband RF subsystems. The HMC452ST89ETR is widely used in GSM, GPRS, EDGE, CDMA, W-CDMA, fixed wireless equipment, wireless infrastructure, CATV systems, cable modems, RF transmitters, communication repeaters, and broadband RF amplification applications, where high output power, linearity, and wideband operation are essential. |
| Product Group | Amplifier |
| MOQ | 500 pcs |
| SPQ | 500 pcs |
| Figure/Case | SOT-89 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
