ADSP-TS201SABPZ060

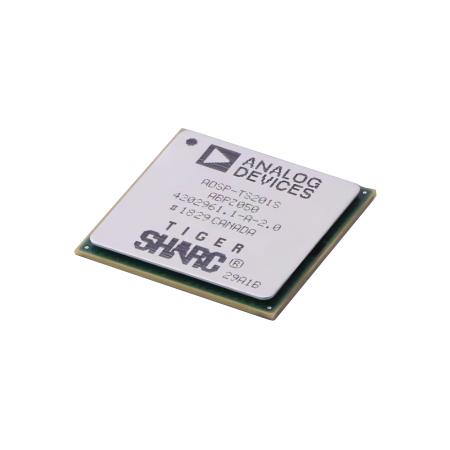

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADSP-TS201SABPZ060 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADSP-TS201SABPZ060 is a high-performance 600MHz 32-bit digital signal processor (DSP) manufactured by Analog Devices (ADI). Part of the TigerSHARC processor family, this device supports both fixed-point and floating-point arithmetic for computationally intensive signal processing applications. Its integrated memory and high-speed processing architecture make it suitable for telecommunications, industrial signal processing, and embedded computing systems. The Analog Devices ADSP-TS201SABPZ060 operates at a maximum 600MHz clock frequency and integrates 3MB of on-chip SRAM for high-speed data and instruction storage. The processor uses a 1.20V core supply and 2.50V I/O supply. Its operating case temperature range is -40°C to +85°C, supporting demanding industrial and embedded applications. The ADSP-TS201S TigerSHARC DSP provides a host interface, high-speed link ports, and multiprocessor communication capabilities. These interfaces support data transfer between processors and external devices, enabling scalable signal processing architectures. Typical applications include digital communications, radar processing, sonar systems, medical imaging, digital beamforming, and high-speed data acquisition. External non-volatile memory is required for persistent program storage. The ADSP-TS201SABPZ060 is supplied in a 576-ball BGA surface-mount package measuring approximately 25 × 25mm. The component is packaged in trays and has a Moisture Sensitivity Level (MSL) of 3. Proper moisture handling and controlled reflow soldering are required during PCB assembly. The Analog Devices ADSP-TS201SABPZ060 600MHz TigerSHARC digital signal processor is a discontinued (obsolete) component, primarily suitable for legacy embedded systems, industrial equipment maintenance, telecommunications hardware repair, existing DSP board replacements, and long-term support of established signal processing platforms. Availability and component condition should be verified before ordering. |
| Product Group | DSP |
| MOQ | 1 pcs |
| SPQ | 1 pcs |
| Figure/Case | 576-BGA-ED |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
ADSP-TS201SABPZ060
ADSP-TS201SABPZ060
