CY8C4014SXI-420

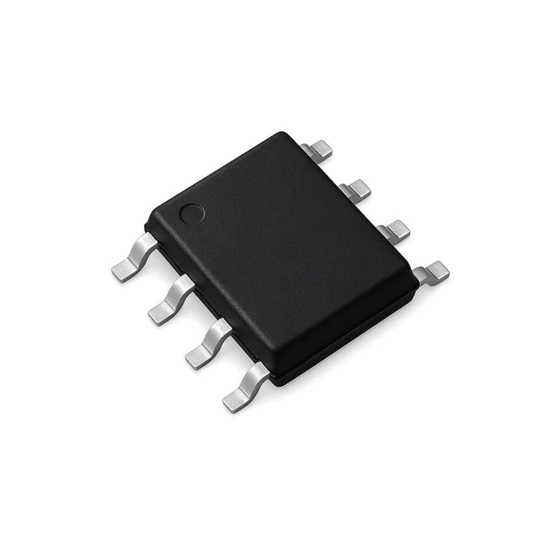

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CY8C4014SXI-420 |
|---|---|
| Manufacturer |
 Cypress Semiconductor
|
| Description | The CY8C4014SXI-420 is a compact, low-power 32-bit ARM Cortex-M0 microcontroller from the Infineon Technologies PSoC 4 4000 family, originally developed by Cypress Semiconductor. It integrates programmable digital peripherals, analog functionality, and capacitive touch sensing for embedded control and human-machine interface applications. The device features an ARM Cortex-M0 processor operating at up to 16MHz, together with 16KB Flash program memory and 2KB SRAM. Its architecture supports compact embedded firmware while offering a wide 1.71V to 5.5V operating voltage range for battery-powered and standard logic-level applications. A key feature of the CY8C4014SXI-420 is its integrated CapSense capacitive touch sensing technology, enabling the implementation of touch-sensitive buttons and compact user interfaces without conventional mechanical switches. The microcontroller provides 5 programmable GPIO pins and incorporates one analog comparator, 7-bit and 8-bit current DACs (IDACs), one Timer/Counter/PWM (TCPWM) block, and an I2C communication interface. Additional integrated functions include an internal oscillator, watchdog timer, power-on reset, and brown-out detection circuitry. The CY8C4014SXI-420 is supplied in a compact 8-pin SOIC surface-mount package with a 3.90mm body width and 1.27mm pin pitch, making it suitable for space-constrained PCB designs and conventional SMT assembly. It supports an industrial operating temperature range of -40°C to +85°C and features lead-free, RoHS-compliant packaging. Typical applications include capacitive touch buttons, smart home devices, household appliances, consumer electronics, industrial control interfaces, compact sensor interfaces, battery-powered equipment, and embedded human-machine interface systems. Product Lifecycle: The CY8C4014SXI-420 is classified as Active and Preferred by Infineon Technologies and is suitable for new product designs and ongoing production requirements. |
| Product Group | Microcontroller |
| MOQ | 2910 pcs |
| SPQ | 2910 pcs |
| Figure/Case | SOIC-8 |
| Package | TUBE Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
CY8C4014SXI-420
