AD712JRZ-REEL7

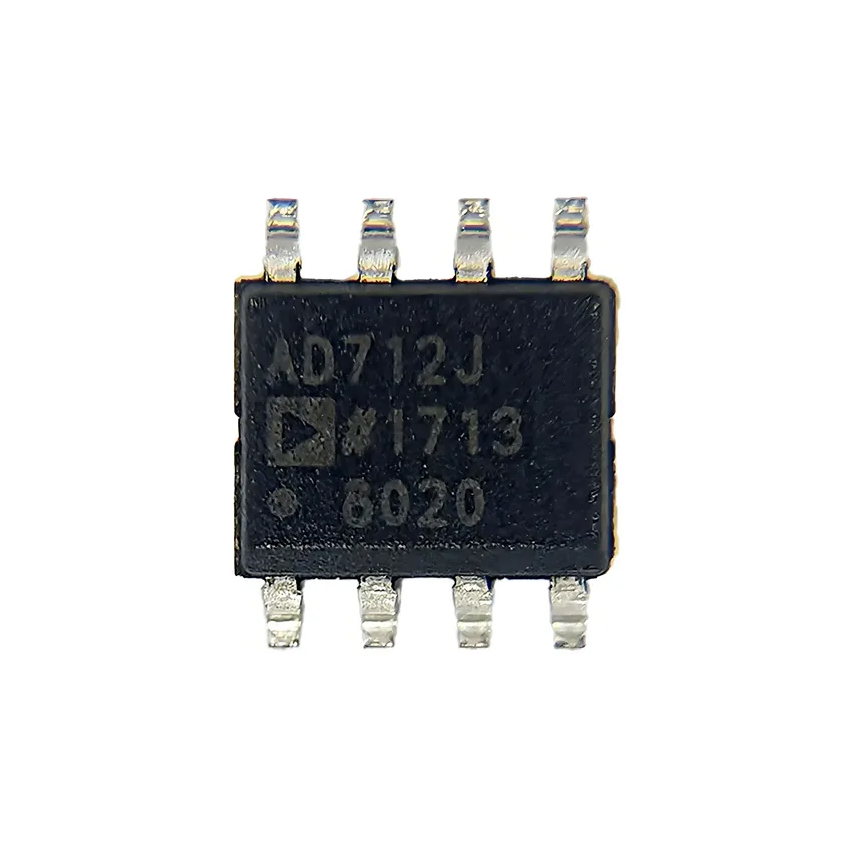

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | AD712JRZ-REEL7 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The AD712JRZ-REEL7 is a high-performance dual-channel JFET-input operational amplifier developed by Analog Devices, designed for precision analog signal processing applications requiring low noise and high speed performance. It integrates two independent amplifier circuits in a single compact package, enabling efficient design in multi-channel systems. This device features a gain-bandwidth product of approximately 4MHz and a slew rate of around 20V/µs, providing fast response and stable operation in dynamic signal conditions. It is suitable for applications such as active filters, integrators, and data acquisition systems. The AD712JRZ-REEL7 operates over a wide supply voltage range of ±4.5V to ±18V (9V to 36V total), offering flexibility in both single and dual supply configurations. It supports a typical supply current of about 5mA, balancing performance with power efficiency. With a very low input bias current of approximately 25pA and input offset voltage around 300µV, the device ensures high accuracy and minimal signal distortion, making it ideal for precision measurement and instrumentation applications. The amplifier provides up to 25mA output current per channel and demonstrates excellent AC and DC performance due to its BiFET (bipolar + FET) technology with laser-trimmed characteristics, enabling improved stability and reduced drift. Designed for general-purpose and precision use, the AD712JRZ-REEL7 is widely utilized as a buffer for ADC/DAC systems, active filters, integrators, and signal conditioning circuits, where accuracy and speed are essential. Encapsulated in a compact 8-pin SOIC surface-mount package, the AD712JRZ-REEL7 is optimized for high-density PCB layouts and automated manufacturing processes. The AD712JRZ-REEL7 is commonly used in industrial instrumentation, data acquisition systems, medical electronics, audio processing, and precision analog front-end applications, where reliable dual-channel amplification with low noise and high stability is required. |
| Product Group | OpAmp |
| MOQ | 750 pcs |
| SPQ | 750 pcs |
| Figure/Case | SOIC-8 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
AD712JRZ-REEL7
