WIZ752SR-125
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | WIZ752SR-125 |
|---|---|
| Manufacturer |
 WIZnet
|
| Description | WIZ120SR Compatible Seri Ethernet Dönüştürücü (Serial To Ethernet Module) W7500 Ethernet MCU External PHY(IC+) 2x Serial Interface DSUB9 Connector |
| Product Group | Ethernet Module |
| MOQ | 36 pcs |
| SPQ | 18 pcs |
| Figure/Case | PCBA-DIP |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |

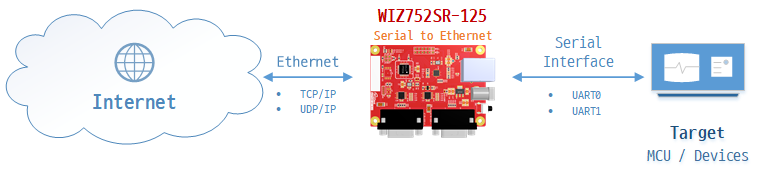

WIZ752SR-125 is a compact sized serial to Ethernet module using the W7500 Ethernet MCU (SoC based on ARM Cortex-M0 architecture) with External PHY(IC+). WIZ752SR-125 is a protocol converter that transmits data sent by serial equipment as TCP/IP data and converts the TCP/IP data received through the network back into serial data to the serial equipment. It complies with industrial temperature standard.
WIZ752SR-125 is compatible[1] with the WIZnet WIZ125SR S2E module. In addition, WIZ752SR-125 contains a 4-pin GPIO expansion port that can be controlled freely by the user. (analog input or digital in/out)
WIZ752SR-125 is the best fit solution to control user's serial device via Ethernet network.
| Feature | Description |
|---|---|
| Chipset | WIZnet W7500 |
| Interface | Serial (RS232 or RS485) to Ethernet (10/100 Mbps) |
| Ethernet Port | 10/100 Mbps (Fast Ethernet) |
| Protocols Supported | TCP, UDP, HTTP, DHCP, DNS, ARP, ICMP |
| Operating Voltage | 5V ±10% |
| Operating Temperature Range | -40°C to +85°C |
| Power Consumption | Low power consumption (~100mA) |
| MAC Address | Pre-programmed unique MAC address |
| Data Transfer Speed | 10/100 Mbps (Fast Ethernet) |
| Serial Communication Speed | RS232: 300 bps to 1.5 Mbps |
| RS485: 300 bps to 1 Mbps | |
| Memory | 32KB SRAM |
| Features | Supports TCP/IP protocol stack, web-based configuration, dual serial interfaces |
| LED Indicators | Power, Ethernet Link, Ethernet Activity, Serial Data Transfer |
| Connectors | 1 x RJ45 Ethernet port |
| 2 x DB9 (RS232) or Terminal block (RS485) for serial | |
| Web-based Management | Built-in web server for configuration and monitoring |
| Security Features | No explicit security features, but supports common networking protocols for data transfer. |
| Package | Compact module form, suitable for embedded systems and easy integration |
| Applications | Industrial automation, IoT, serial-to-Ethernet conversion, remote monitoring, embedded devices |
| Configuration | Supports web browser configuration, AT commands, and SDK (Software Development Kit) |
| Compatibility | Compatible with devices using RS232 and RS485 serial communication, and microcontrollers with UART |
WIZ752SR-125
