TPS76350DBVR

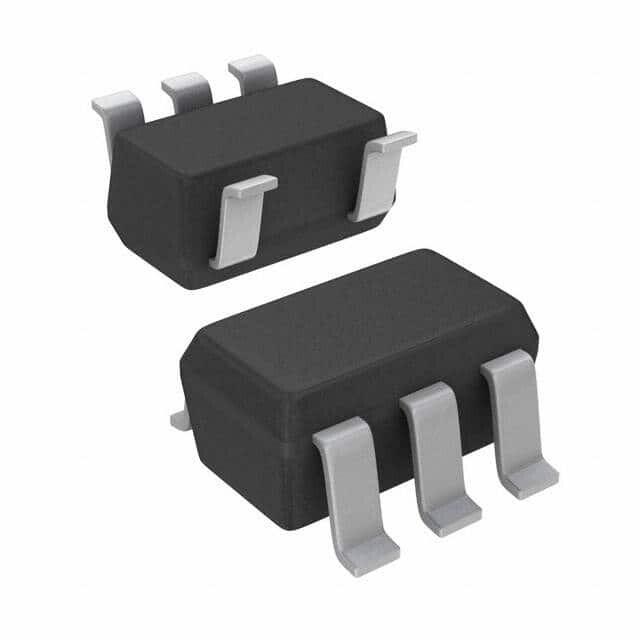

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TPS76350DBVR |
|---|---|
| Manufacturer |
|
| Description | The TPS76350DBVR is a compact, low-power 150mA low-dropout (LDO) linear voltage regulator from Texas Instruments, designed to provide a stable 5.0V fixed output voltage in battery-powered, portable, industrial, and embedded electronic systems. Its combination of low dropout voltage, low quiescent current, shutdown capability, and small SOT-23 package makes it well suited for space- and power-constrained designs. The TPS76350DBVR can deliver up to 150mA continuous output current and provides a regulated 5.0V output. The TPS763 family is designed to operate from input voltages up to 10V, allowing the device to be used with a variety of battery sources and intermediate DC power rails. A key feature of the device is its low dropout voltage. The regulator has a typical dropout voltage of approximately 300mV at 150mA, enabling efficient regulation when the input voltage is only slightly higher than the required output voltage. This characteristic helps extend usable battery operating time and reduces unnecessary power dissipation compared with conventional linear regulators requiring larger input-to-output voltage margins. The TPS76350DBVR is optimized for low-power applications with a typical quiescent current of approximately 85µA. Low ground current helps minimize system power consumption during normal operation, making the regulator suitable for portable instrumentation, battery-operated controllers, sensor systems, and always-on auxiliary power rails. An integrated enable/shutdown input allows the regulator to be switched into an ultralow-power shutdown state when the regulated supply is not required. Shutdown current is typically below 1µA, helping maximize battery life in applications that spend significant periods in standby or sleep mode. The regulator is designed to maintain stable operation with a relatively small external output capacitor. This reduces the required PCB area and external component count while simplifying implementation in compact embedded products. The device also provides good line and load regulation to maintain a stable 5V rail as input voltage and output current change. Integrated protection features include current limiting and thermal shutdown, helping protect the regulator and downstream circuitry during overload, short-circuit, and excessive-temperature conditions. These internal protection functions improve system reliability without requiring extensive external protection circuitry. The TPS76350DBVR is specified for operation across an ambient temperature range of -40°C to +125°C, making it suitable for industrial and commercial electronic equipment operating under demanding environmental conditions. Packaged in a compact 5-pin SOT-23 (DBV) surface-mount package, the TPS76350DBVR occupies minimal PCB area and is suitable for automated high-volume assembly. The R ordering suffix identifies tape-and-reel packaging, making the component convenient for production SMT assembly. The TPS76350DBVR is widely used in battery-powered equipment, portable instrumentation, microcontroller power supplies, sensor interfaces, industrial control systems, communication equipment, data acquisition devices, handheld electronics, auxiliary 5V rails, embedded systems, measurement equipment, and low-power power-management circuits requiring a compact and reliable fixed 5V linear regulator. |
| Product Group | Voltage Regulator |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-23-5 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
