ISO7341CDW

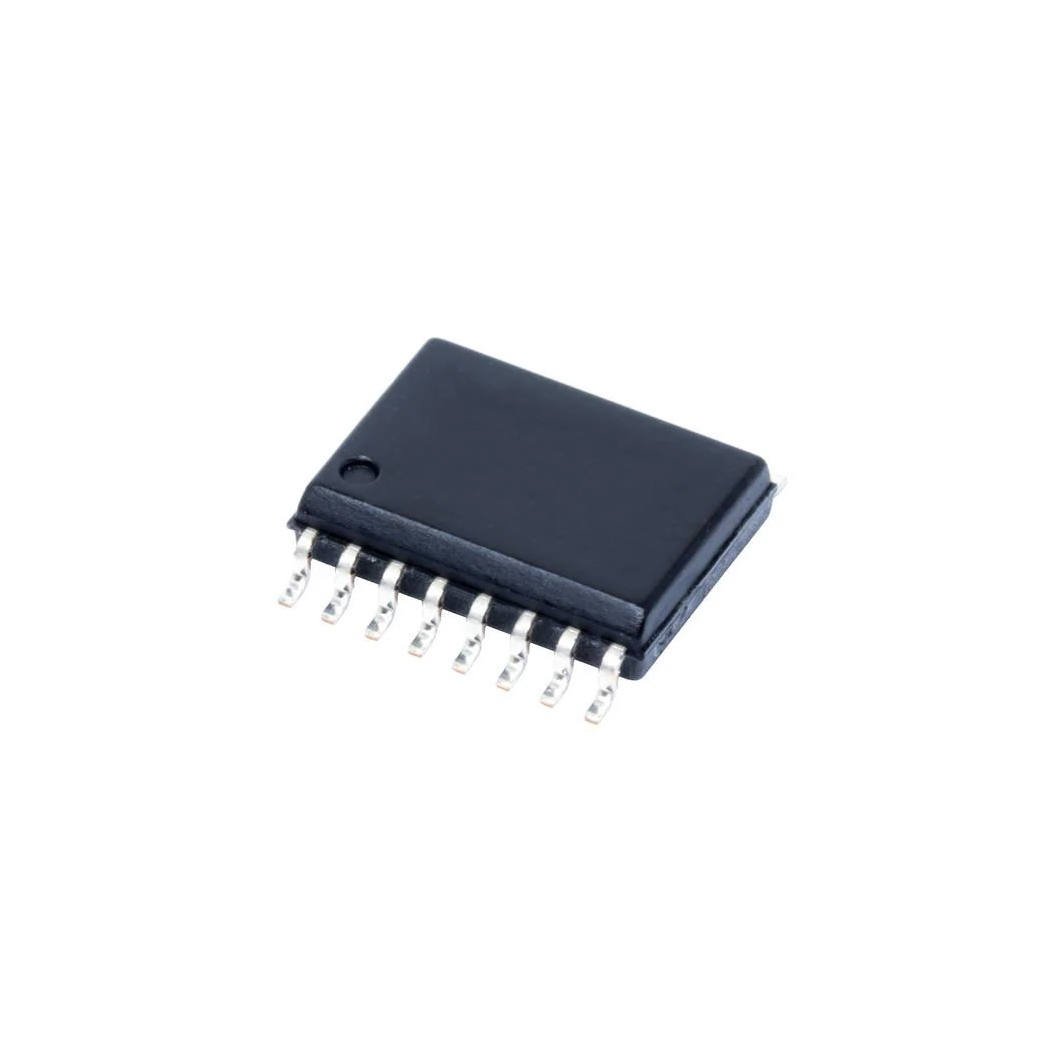

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ISO7341CDW |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | The ISO7341CDW is a reliable quad-channel digital isolator developed by Texas Instruments, designed to provide robust signal isolation in high-noise industrial and communication environments. It features a 3 forward and 1 reverse channel configuration, enabling bidirectional data transfer across an isolation barrier. This device utilizes advanced capacitive isolation technology, delivering high immunity to electromagnetic interference (EMI) while maintaining low power consumption and stable signal integrity. It supports data rates up to approximately 100 Mbps, making it suitable for high-speed digital communication interfaces. The ISO7341CDW provides a high level of protection with an isolation rating up to 5 kVrms, ensuring safe operation between different ground domains. It operates over a wide supply voltage range of 3.0V to 5.5V, supporting both low-voltage and standard digital systems. Designed for industrial reliability, the device offers low propagation delay and tight channel-to-channel matching, ensuring precise timing in communication systems. It also features fail-safe default outputs, which maintain a known state when inputs are lost or powered down. Housed in a 16-pin wide-body SOIC package, the ISO7341CDW provides increased creepage and clearance distances, making it suitable for reinforced isolation requirements in safety-critical designs. The ISO7341CDW is widely used in industrial automation, power supply control, motor drives, data communication interfaces, and medical systems, where reliable electrical isolation and high-speed signal transmission are essential. |
| Product Group | Isolated Amplifier |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | SOIC-16 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
