Products Microcontroller PIC18F46K22T-I/PT


PIC18F46K22T-I/PT

PIC18F46K22T-I/PT, Microcontroller, from Microchip in Stock Hong Kong PIC PIC® XLP™ 18K Microcontroller IC 8-Bit 64MHz 64KB (32K*16) FLASH 44-TQFP (10*10mm), Brown-out Detect/Reset, HLVD, POR, PWM, WDT, I2C, SPI, UART

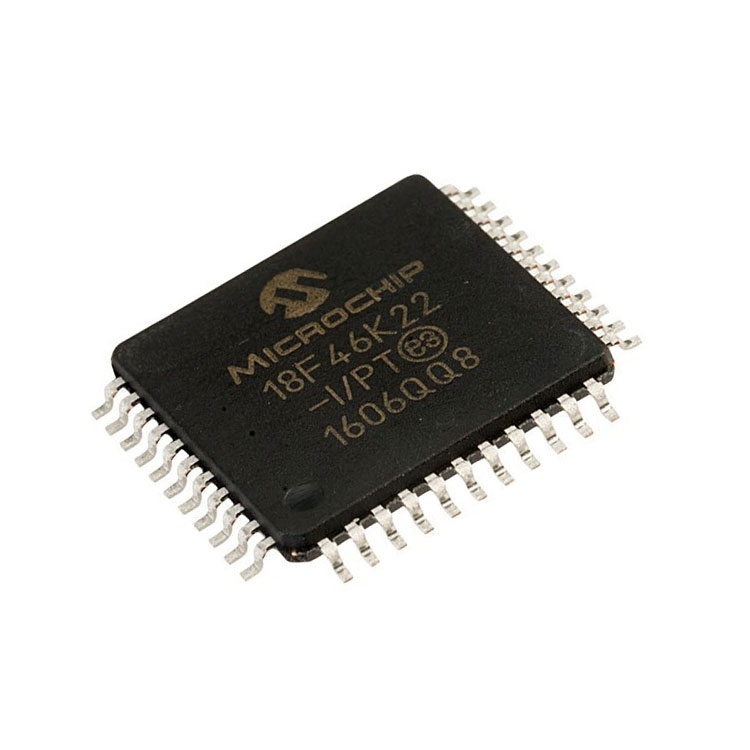

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.


GET QUOTE NOW!

Part Number PIC18F46K22T-I/PT
Manufacturer Microchip Official Vector Logo Microchip
Description PIC PIC® XLP™ 18K Microcontroller IC 8-Bit 64MHz 64KB (32K*16) FLASH 44-TQFP (10*10mm), Brown-out Detect/Reset, HLVD, POR, PWM, WDT, I2C, SPI, UART/USART
Product Group Microcontroller
MOQ 1200 pcs
SPQ 1200 pcs
Figure/Case 44-TQFP
Package T&R Pack
PDF PDF Datasheet
Ship From Hong Kong
Shipment Way DHL / Fedex / TNT / UPS / Others
Delivery Term Ex-Works
Send RFQ sales@signalhk.com




FeatureDescription
Core8-bit PIC18 core
Flash Memory64 KB Flash memory (programmable in-system)
RAM3,968 Bytes RAM
EEPROM1,792 Bytes EEPROM
Operating Voltage2.0 V to 5.5 V
Clock Speed64 MHz maximum operating frequency
Timers3x 16-bit timers, 1x 8-bit timer
ADC10-bit, 16-channel Analog-to-Digital Converter (ADC)
PWM4 PWM channels
I/O Pins40 General-purpose I/O pins
Communication Interfaces2x I2C, 2x SPI, 2x UART, 1x CAN, 1x MSSP (Master Synchronous Serial Port)
WatchdogIndependent Watchdog (IWDG)
Low Power ModesSleep, Idle modes for power saving
Interrupts16 external interrupts, 1 software interrupt
Temperature Range-40°C to +125°C
PackageTQFP-44 (44 pins)
BootloaderSupport for in-application programming (IAP)
Peripheral Features1x Comparator, 2x SPI, 2x UART, 1x I2C, 1x CAN, 1x PWM, 1x DMA, 1x MSSP
OscillatorInternal 8 MHz to 64 MHz, external crystal support
Development ToolsSupported by MPLAB X IDE, MPLAB ICD 4, MPLAB PICkit 4, and third-party tools
ProtectionBrown-out Reset (BOR), Watchdog Timer (WDT), Power-on Reset (POR)
Package Size44-pin TQFP (Thin Quad Flat Package)
Temperature MonitoringNo internal temperature sensor
