PT3617F1SAG8P1

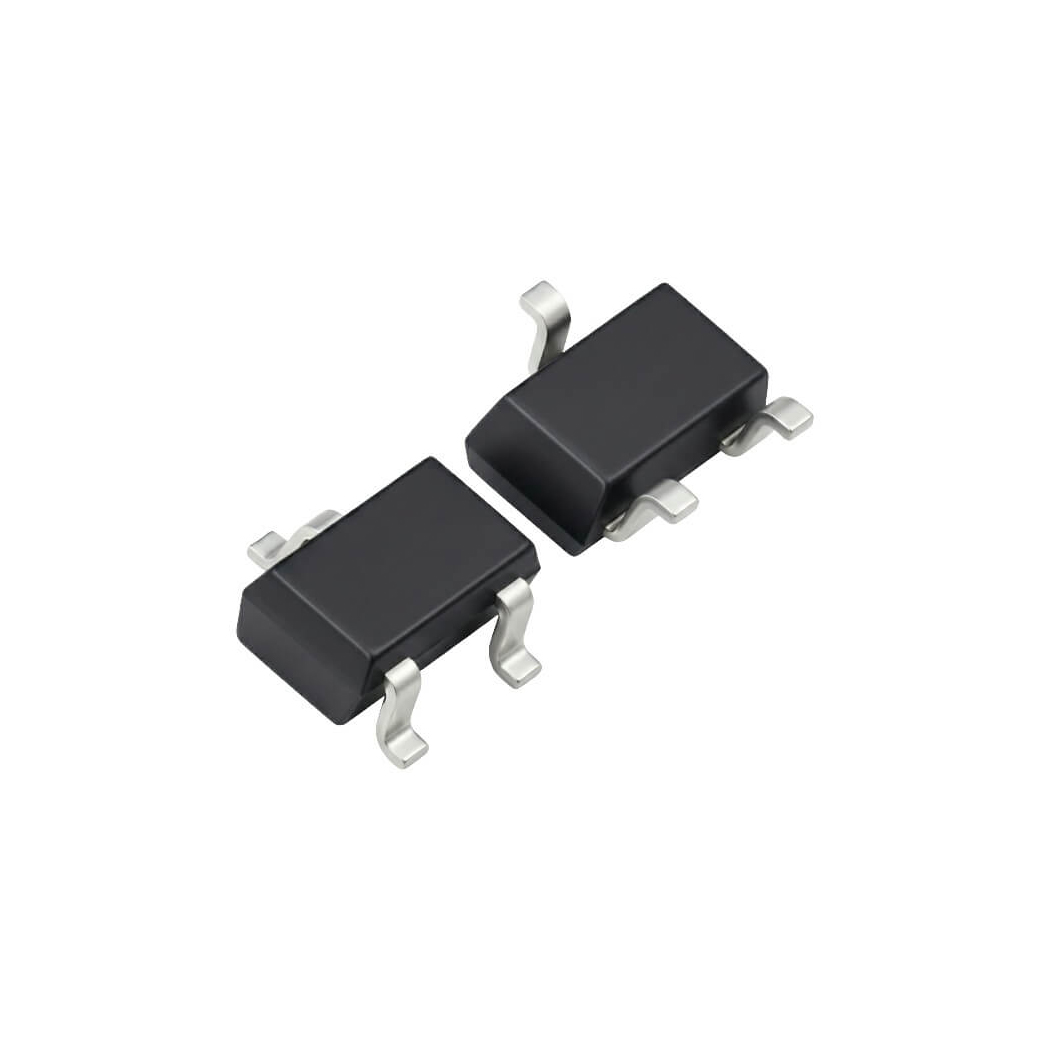

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | PT3617F1SAG8P1 |
|---|---|
| Manufacturer |
 Prolific Technology
|
| Description | The PT3617F1SAG8P1 is a high-performance Hall-effect latch sensor developed by Prolific Technology Inc., designed for precise magnetic field detection and switching applications. It operates as a bipolar magnetic latch, switching its output state based on alternating magnetic polarity. This device features a wide operating voltage range of 4.0V to 38V, making it suitable for both low-voltage electronics and industrial systems. It also supports reverse polarity protection up to -60V, ensuring enhanced reliability in harsh environments. The PT3617F1SAG8P1 includes high-sensitivity magnetic detection with built-in hysteresis, enabling stable switching behavior and noise immunity. Typical magnetic characteristics include an operate point around 22 Gauss and release point around -22 Gauss, ensuring accurate and repeatable operation. It utilizes an open-drain output structure capable of driving loads up to approximately 50 mA, allowing easy interfacing with microcontrollers and digital logic circuits. The integrated dynamic offset cancellation and temperature compensation improve accuracy and stability across a wide temperature range from -40°C to +150°C. Packaged in a compact SOT-23-3 surface-mount form factor, the PT3617F1SAG8P1 is ideal for high-density PCB layouts and automated assembly processes. The PT3617F1SAG8P1 is widely used in brushless DC motors, proximity sensing, tachometers, magnetic encoders, and automotive systems, where reliable and high-sensitivity magnetic switching is required. |
| Product Group | Hall Effect Sensor |
| MOQ | 3000 pcs |
| SPQ | 3000 pcs |
| Figure/Case | SOT-23-3 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
