EC25EUGA-MINIPCIE

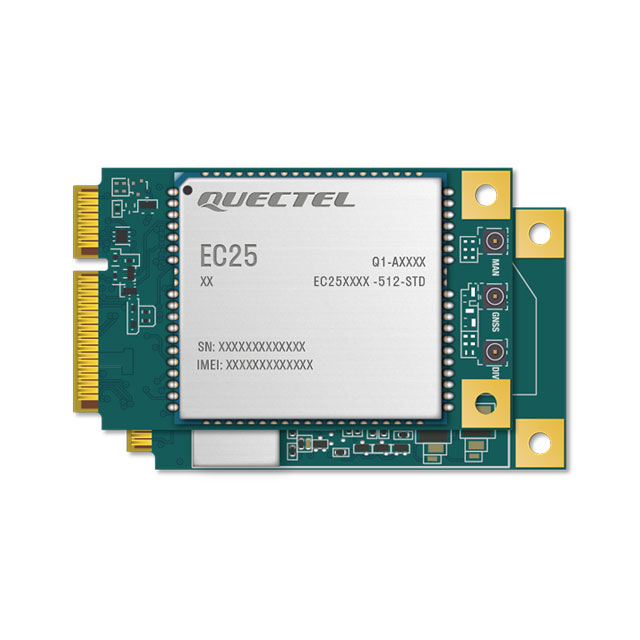

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | EC25EUGA-MINIPCIE |
|---|---|
| Manufacturer |
 Quectel
|
| Description | The EC25EUGA-MINIPCIE is a high-performance LTE Category 4 Mini PCIe cellular communication module from Quectel, developed for industrial Internet of Things (IoT), machine-to-machine (M2M), transportation, networking equipment, remote monitoring, and embedded communication systems. Built in the industry-standard Mini PCI Express form factor, it enables rapid integration into industrial routers, gateways, embedded computers, and networking platforms while delivering reliable broadband cellular connectivity. It supports LTE Cat 4 download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps. The EC25-EU regional variant is optimized for Europe and selected EMEA markets. It supports LTE-FDD Bands B1/B3/B7/B8/B20/B28A, LTE-TDD Bands B38/B40/B41, WCDMA Bands B1/B8, and GSM/EDGE Bands B3/B8. Full backward compatibility with 3G and 2G networks ensures uninterrupted communication where LTE service is unavailable. An optional integrated multi-constellation GNSS receiver supports GPS, GLONASS, BeiDou, Galileo, and QZSS, providing accurate positioning and navigation for fleet management, asset tracking, telematics, and location-aware IoT devices without requiring a separate GNSS receiver. The module offers comprehensive hardware interfaces including USB 2.0 High-Speed, UART, I²C, PCM digital audio, USIM interface, hardware reset, RF disable control, status indication, and dedicated LTE MIMO and GNSS antenna connections. It supports a complete protocol stack including TCP/IP, UDP, PPP, FTP, HTTP, HTTPS, MQTT, SSL/TLS, SMTP, NTP, DFOTA, and Quectel AT commands, enabling fast integration into industrial embedded systems and cloud-connected applications. Operating from a 3.0V to 3.6V supply voltage (3.3V typical), the EC25EUGA-MINIPCIE delivers excellent RF performance while maintaining low power consumption. The standard 51.0 × 30.0 × 4.9 mm Mini PCIe form factor allows direct installation into Mini PCIe sockets, and the industrial operating temperature range of -35°C to +75°C (extended -40°C to +80°C) makes it suitable for demanding environments. The module is fully supported under Windows, Linux, Android, and OpenWrt, with USB networking modes such as ECM, RNDIS, MBIM, QMI, and PPP depending on firmware configuration. Its mature software ecosystem and industrial certifications simplify deployment in commercial and industrial networking equipment. The EC25EUGA-MINIPCIE is widely used in industrial LTE routers, IoT gateways, industrial PCs, vehicle telematics, fleet management systems, remote monitoring equipment, smart utility meters, payment terminals, digital signage, security systems, agricultural automation, transportation equipment, edge computing platforms, vending machines, and machine-to-machine (M2M) communication applications requiring reliable LTE Cat 4 connectivity in a standard Mini PCIe form factor. |
| Product Group | RF and Wifi Module |
| MOQ | 1000 pcs |
| SPQ | 100 pcs |
| Figure/Case | Mini PCIe |
| Package | TRAY Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
