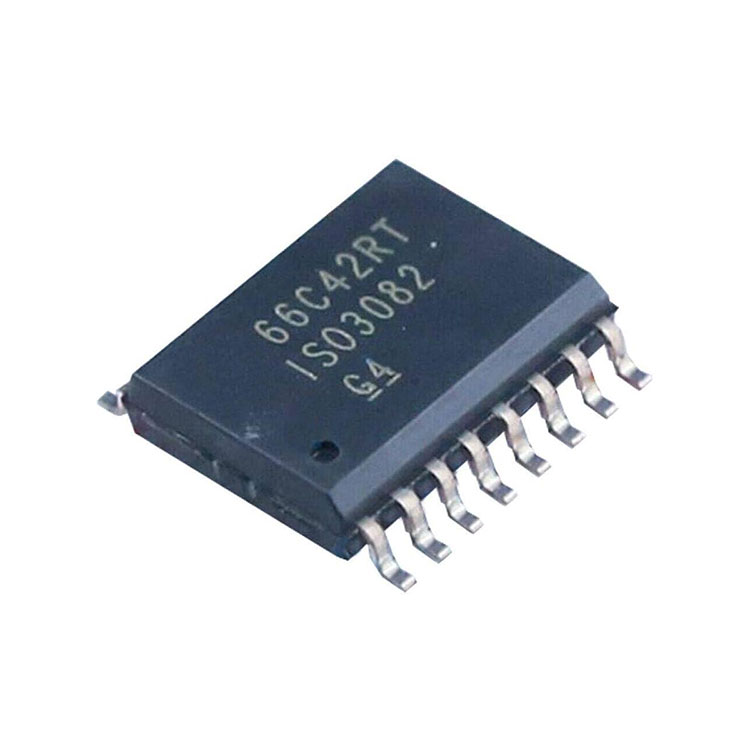

ISO3082DWR
| Part Number | ISO3082DWR |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | 2/2 Transceiver, Isolated Half RS422, RS485 16-SOIC, 3.15V ~ 5.5V, 4.5V ~ 5.5V, 200kbps, 30 mV |
| Product Group | RS485 Transceiver |
| MOQ | 2000 pcs |
| SPQ | 2000 pcs |
| Figure/Case | 16-SOIC |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
| Feature | Specification |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number | ISO3082DWR |
| Category | Integrated Circuits (ICs) > Interface > Drivers, Receivers, Transceivers |
| Type | Transceiver |
| Protocol | RS-485, RS-422 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Half |
| Receiver Hysteresis | 30 mV |
| Data Rate | 200 kbps |
| Supply Voltage | 3.15 V to 5.5 V |
| Operating Temperature | -40°C to 85°C |
| Package / Case | 16-SOIC (0.295", 7.50 mm Width) |
| Features | - Meets or exceeds TIA/EIA RS-485 requirements - Signaling rates up to 20 Mbps - 1/8 unit load – up to 256 nodes on a bus - Thermal shutdown protection - Low bus capacitance – 16 pF (typical) - 50 kV/µs typical transient immunity - Fail-safe receiver for bus open, short, idle - 3.3-V inputs are 5-V tolerant - Bus-pin ESD protection: 12-kV HBM between bus pins and GND2, 6-kV HBM between bus pins and GND1 - Safety-related certifications: 4000-V PK basic insulation, 2500 V RMS isolation per UL 1577, 4000 V PK isolation per CSA 62368-1 |
Request quotation for
ISO3082DWR
